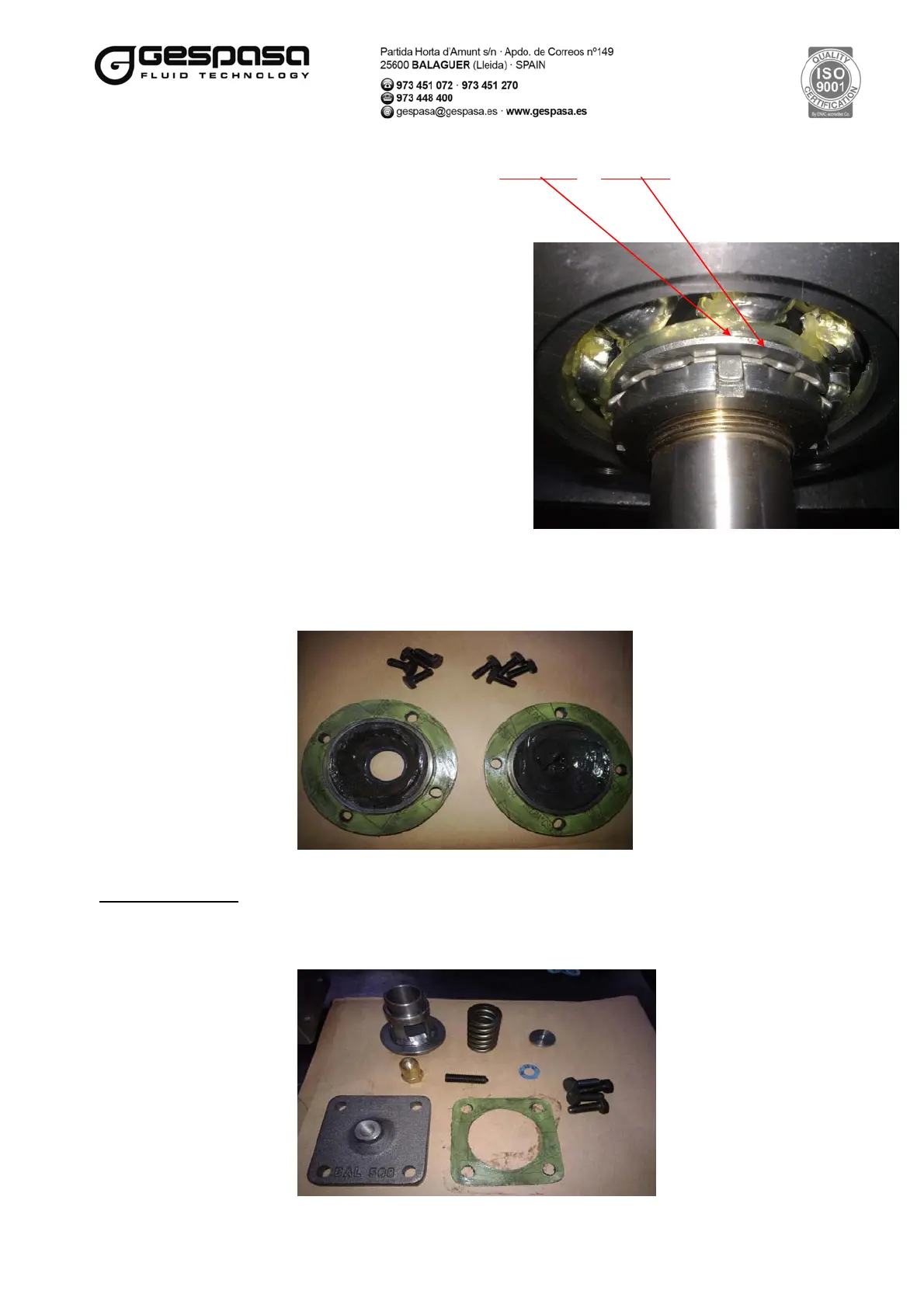

Then use two bolts to fix the cover no. 2D to the pump body no.1 without tightening it so much. Then place the
blocking washer no. 18/1 along with the blocking nut no. 18/2 and find the correct gap between the parts of the
rotor no. 5 with the body no. 1, by slowly tightening the washer no. 18/1 & the nut no. 18/2 of one side of the
pump and then the other one.
Cuando la bomba este promediada y gire correctamente trincaremos las dos tuercas de bloqueo nº18/2
opuestas y
amarraremos los tornillos.
Grease the bearings, fit and tighten the two covers of the bearings no. 13 with their corresponding klinger joints no. 13/1.
BYPASS ASSEMBLY
The bypass is composed of:
The tensor cover no. 8 with its corresponding klinger gasket no. 8/1, the tensor stud no. 9, the grille no. 10, the valve no. 14,
the spring no. 16, the tap nut no. 17 with its corresponding klinger gasket no. 17/1.
