Introduction
The office dock duplicates most of your computer’s ports and provides extra
ports.
With peripheral devices such as a keyboard, mouse, monitor, and printer all
connected to the office dock, you have a handy work area on your desk.
2
.
Installation
1. Align the two bottom notches of V110 with the two square guide pins
on the office dock and put down V110 on the dock.
2. Slide the release latch toward the right so the two rear guide pins
(circled below) fit into the two rear notches of V110.
3. Insert the key to the key lock. Press and then turn the lock to the locked
position.
4. Connect the cables of peripheral devices to the corresponding
connectors on the office dock.
5. Connect the AC adapter to the office dock. The DC-In LED lights up.
See reverse side for notes and precautions.

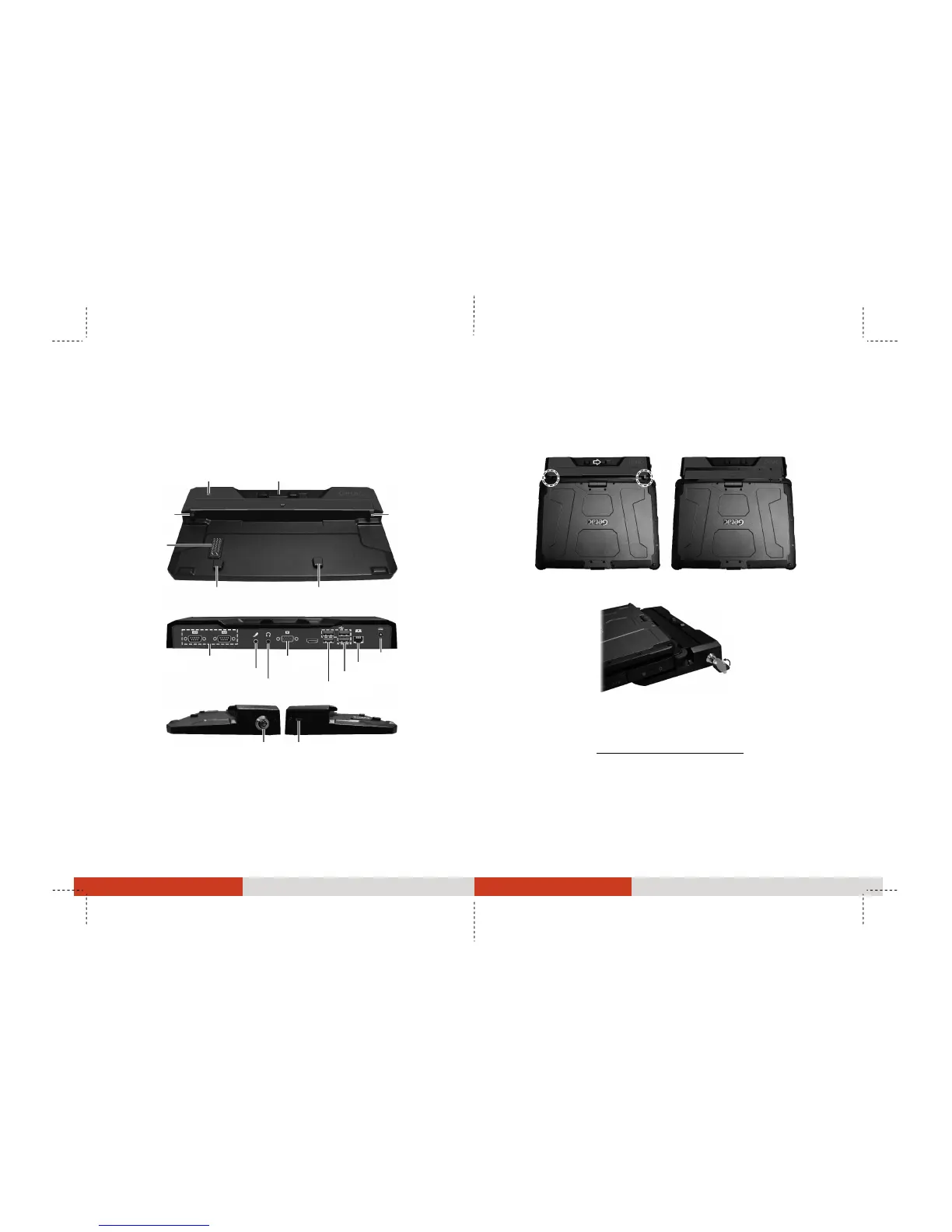

Docking
Connector
Release Latch
DC-In LED
Guide pin
Guide pin
Guide pin
Guide pin
USB 2.0 Port x 3
Power Connector
VGA Port
LAN (RJ-45) Port
Microphone Connector
RS232 Serial Port x 2
Audio Output Connector
Key lock
USB 3.0 Port
Kensington lock
