2 About RHINO Power Supplies
2.1 Description
GEW power supply systems consist of modular RHINO Power Supply Units (RPSU),
one per UV lamphead, housed in one or more RHINO Rack (RR) power supply
cabinets. Each RPSU supplies power to one lamphead and its associated autodamper.

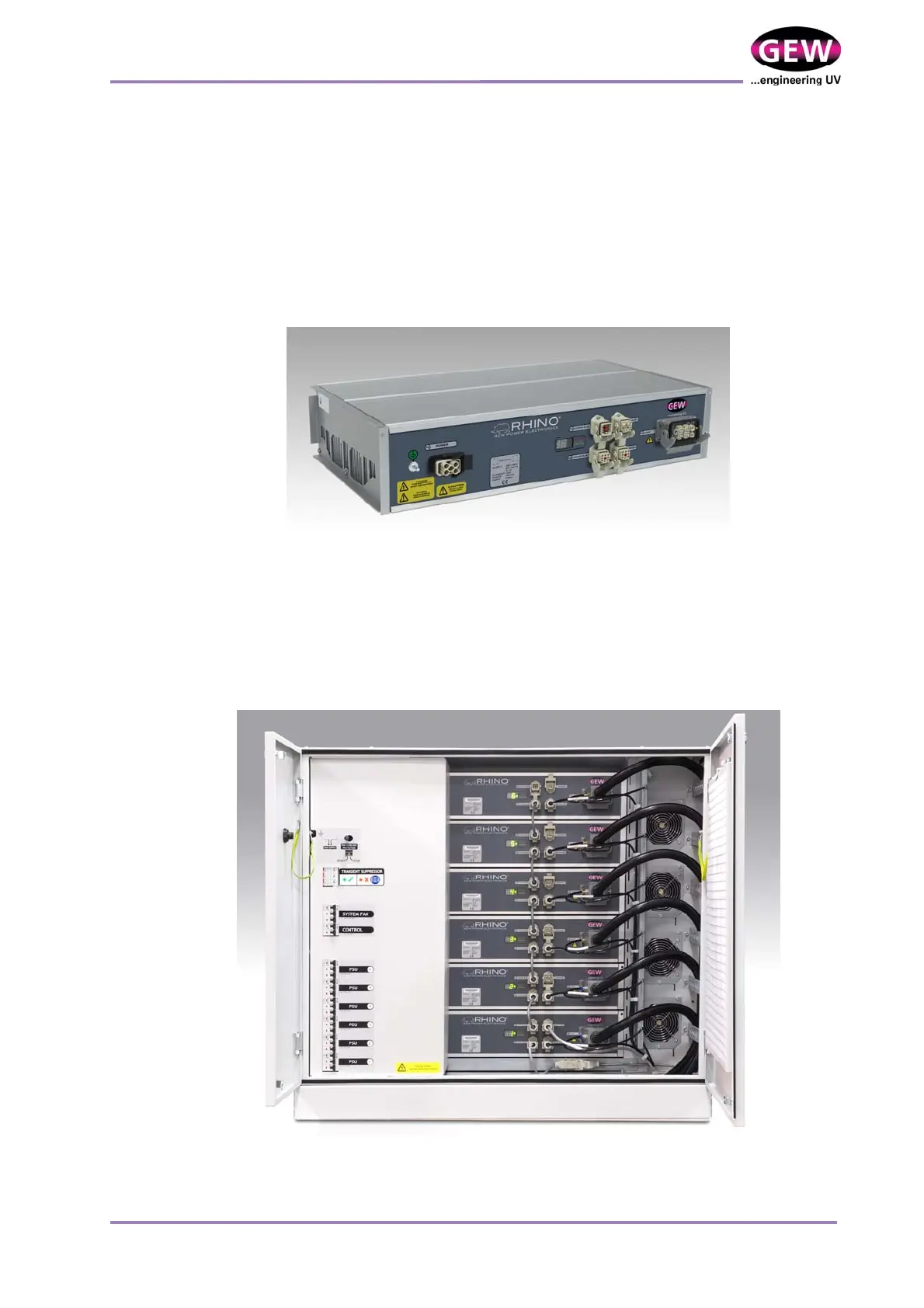

Figure 1 shows a typical RPSU.
Figure 1: GEW RHINO Power Supply Unit
RRs are available in four sizes to house 1, 2, up to 6 and up to 8 RPSUs each and are
referred to as 1-way, 2-way, 6-way and 8-way RRs. 6-way RRs can be stacked two
high if required. Figure 2 and Figure 3 show typical GEW RRs of the 6-way and 1-way
variety respectively.
Figure 2: GEW RHINO Rack (6-way)
