INSTALLATION
Installation should be made by a qualied technician or by representative of the
manufacturer! In case of independent installation strictly follow these instructions.
It is not recommended to disassemble factory connections without a reason.
Attention! All lter housings have been tested for tightness at high pressure.
In order to avoid cracking of Aragon cartridge it should always be kept moist. At breaks
in use of the lter more than 1 month, ensure that the lter housing contain water.
Attention! In case of high pressure in the system (> 6 bar) reducing valve should be
installed before the lter.
Before starting installation, shut off the cold water valve and release the pressure by
opening any valve located downstream of the water supply.
Before installing, make sure the lter is securely tightened bulb (if necessary - tighten),
and make the connection according to the instructions.
Attention! The position of vertical labels exactly in the center front of the lter does not
guarantee the tightness of the connection. Position of labels can change when tightening
the threaded connection.
FILTER’S COMPONENTS
*
1. Filter assembled
2. Wrench
3. Bottom plug wrench
4. Puried water faucet (ver. 6)
5. Decorative cap
6. Rubber gasket
7. Plastic washer
8. Fastening nut with a washer
9. Piston
10. Collet clamp nut 1/4”
11. Plastic stopping ring
12. Connecting tube 1/4”
13. T-piece adapter with a faucet knob
14. Instructions
15. Package
* Parts at the picture may differ from the actual items;
** Manufacturer reserves the right to make improvements in the product packaging without reflection in this
manual.
Connection to the cold water main line
1
Bracket
2
Adapter 1/2˝х 1/4˝
3
Ring sealing
4
Cartridge housings
5
Tee adapter with valve
6
Pipe coupling 1/4”
7
Cartridges
8
The covers of the cartridge housings

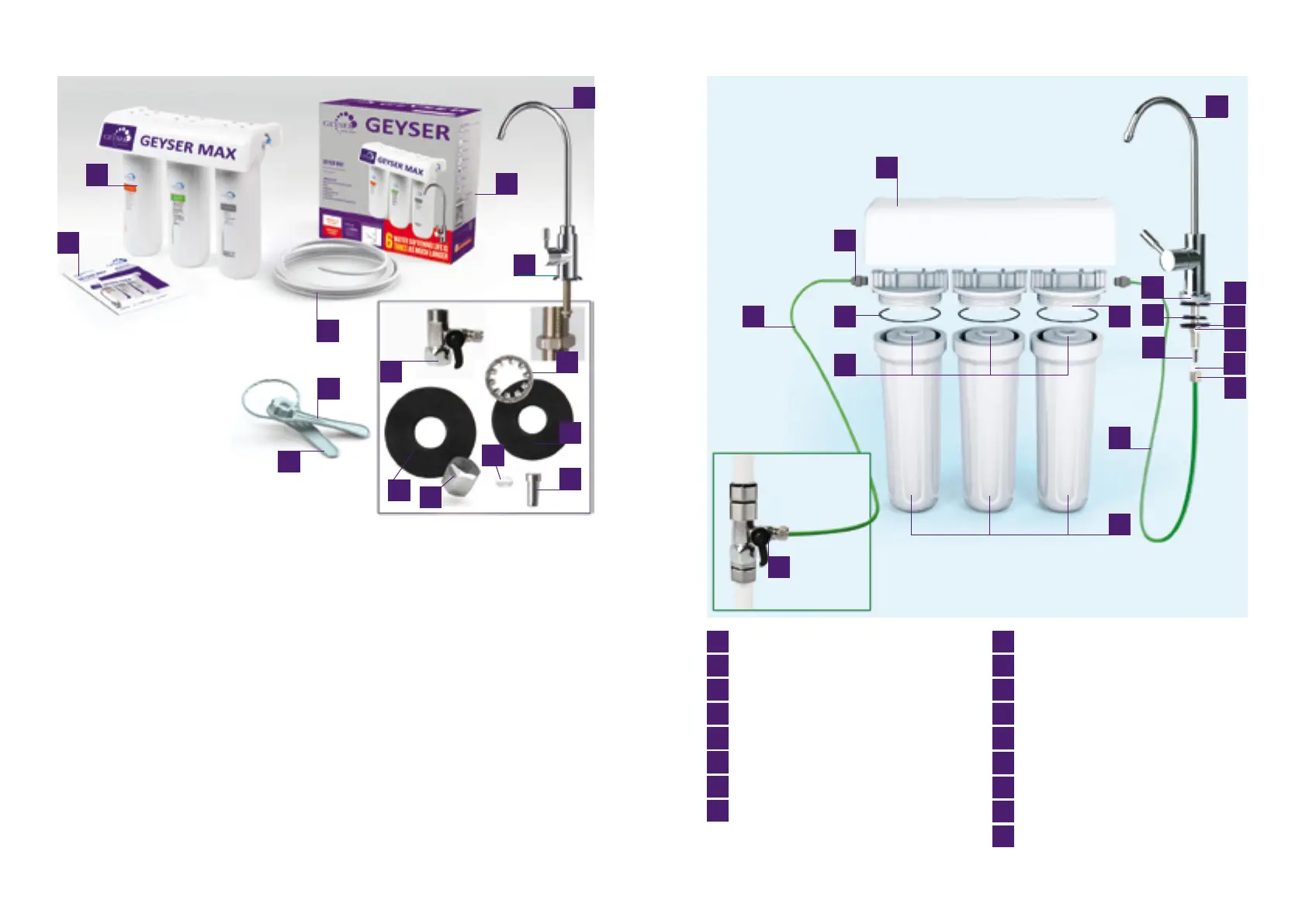

CONNECTION SCHEME
9
Nut chuck 1/4”
10
Faucet
11
Decorative cup
12
Rubber gasket
13
Rubber gasket
14
Plastic washer
15
Nut fastener with a washer
16
Piston
17
Plastic stopping ring
1
2
3
4
7
10
8
6
5
12
13
14
15
9
11
14
1
5
6 3
2
8
16
9
6
10
4
7
12
15
11
17
13
