Product description
6 Product description
6.1 System description and technical data
The Slimdrive EMD Invers
à is a swing door drive with fully automatic operation activated by sensors or push buttons.
à operates electrically during opening and closing.
Use of 2x Slimdrive EMD Invers is possible for 2-leaf doors. In the case of a power failure or triggered alarm it
opens mechanically.
6.1.1 Max. range of use Slimdrive EMD Invers
This chart makes it possible to determine the maximum values for the door width or door weights. It can also be
used to identify the right drive for existing door dimensions.
The tables underneath the diagrams specify the shortest permissible opening times for 90° door angles for the
individual diagram areas A - D.
The use of a 2-leaf system with two Slimdrive EMD Invers drives is possible under the following conditions:
à It must be ensured that the two door leaves do not jam and block each other during opening, since the drives
do not have a mechanical opening sequence control.
à If necessary, corresponding information is to be obtained beforehand from the door manufacturer.

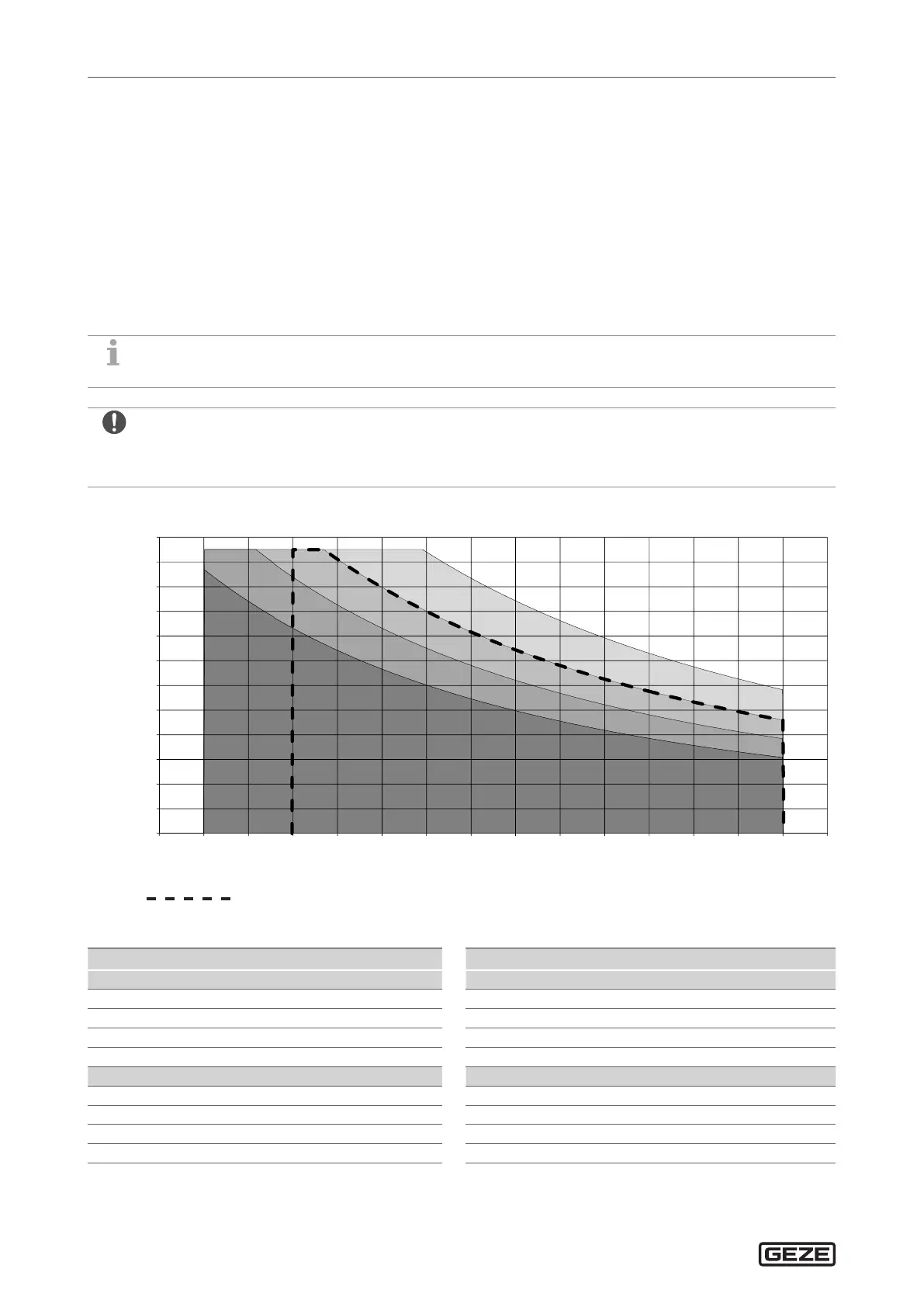

Limit with opening times up to 90° door opening width
Door weight [kg]
0
20
40
60
80
0
0
0
0
0
0
0
240
700750 800850 900950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450
ABCD
Door width [mm]
Area of application for installation with roller guide rail
Shortest possible opening times of areas A-D
Diagram area Opening time [s] Closing time [s] Diagram area Opening time [s] Closing time [s]
Transom installation-hinge side-roller guide rail Transom installation-opposite hinge side-roller guide rail
A 3 4.5 A 4 4.5
B 4 5.5 B 4.5 5.5
C 5 6.5 C 5 5.5
D not permissible D not permissible
Transom installation-opposite hinge side-link arm Door leaf installation-hinge side-roller guide rail
A 3 4 A 4 4.5
B 3 4.5 B 4.5 5.5
C 4 5.5 C 4.5 5.5
D 5 6.5 D not permissible
