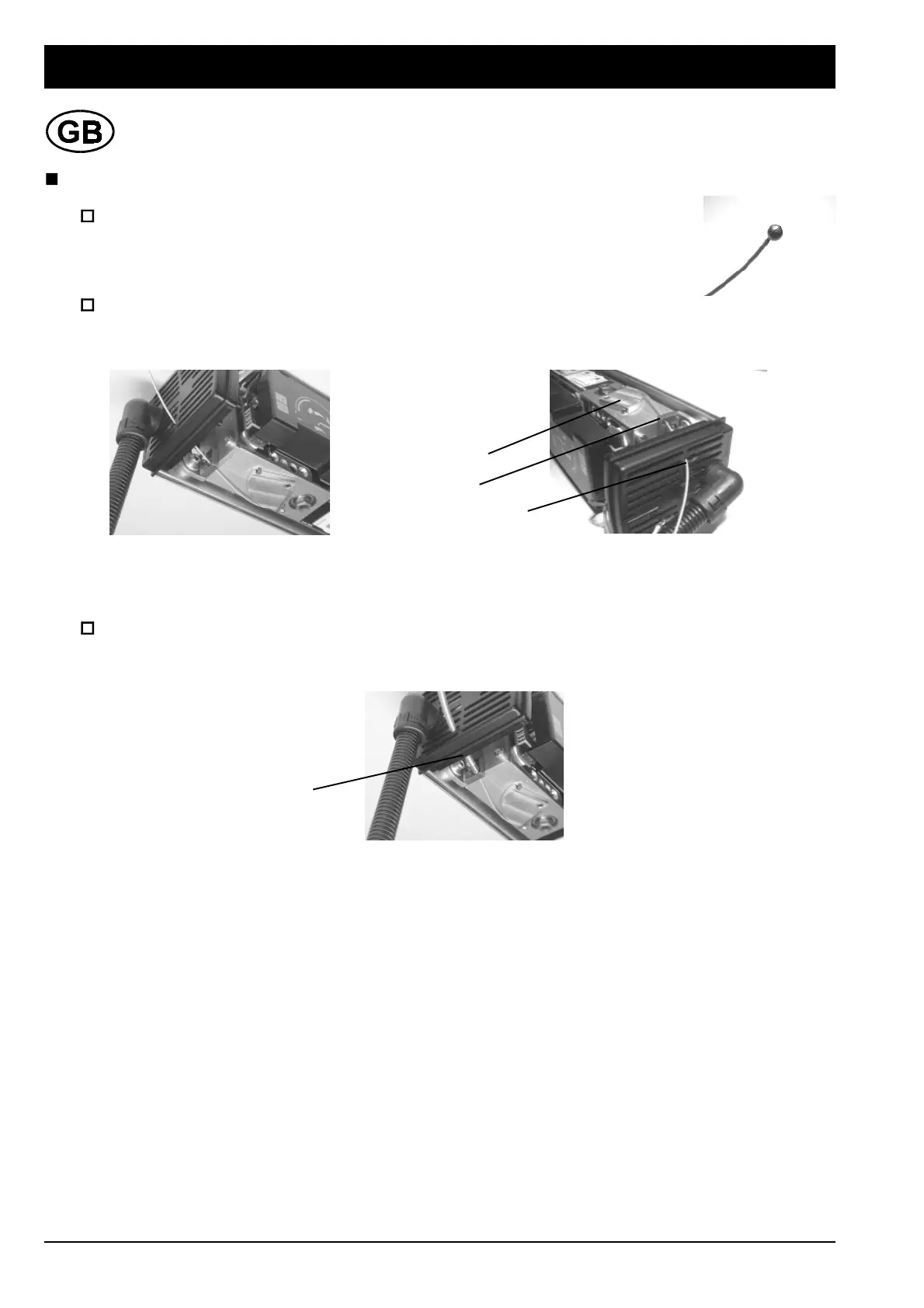

Mounting of Bowden cable
If required, replace existing cable by cable with spherical head that comes
with the system.
Insert cable at the valve lever of Slimdrive SD-IS first, then pass it through the
stop face and the hole in the front.
Slip on casing of Bowden cable beginning at the end of the cable and push through the hole in
the front up to the stop face in
Slimdrive SD-IS .
Casing of
Bowden
cable
Valve lever
View left/right correspondingly
Stop face
Hole in the front
View left/right correspondingly
