D) Replacing the system for turning off and
stopping the engine

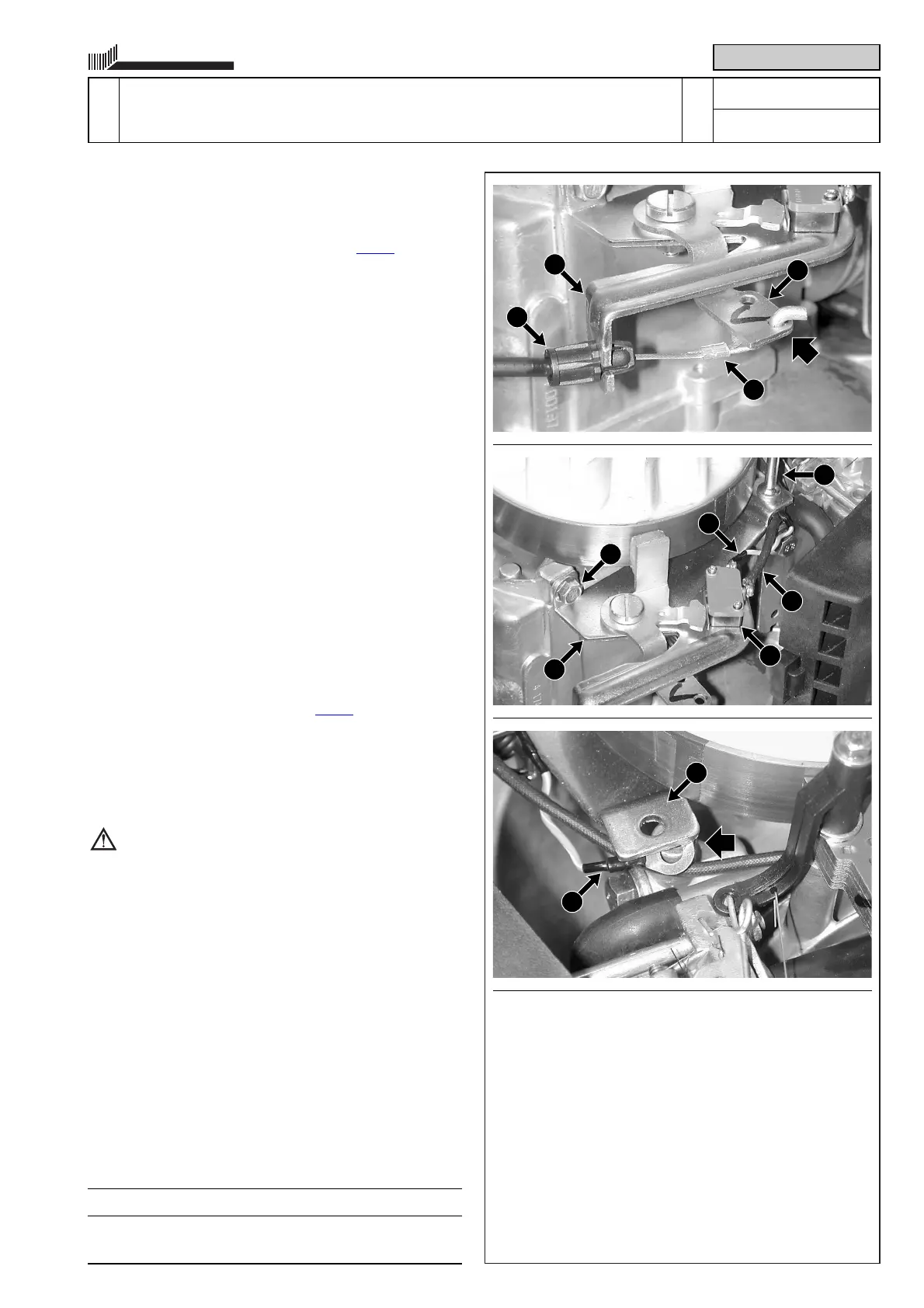

31 Remove the upper conveyor [ 6.1.A
].
32 Disconnect the brake wire (21) from the lever
(22).
33 Unscrew the stud bolt (23) and the screw (24)
fastening the supporting bracket (25).
34 Disconnect the two cables (26) and (27) of the
microswitch (28).
35 When mounting, check that the eyelet terminal
of the earth cable (26) is correctly positioned
under the bracket (25) and fastened by the stud
bolt (23).
36 After making all the connections, check that the
terminal (29) is correctly fixed onto the support
(25) and that the wire (21) is correctly attached
to the outer hole of the lever (22).
37 Remount the conveyor [ 6.1.A
].
38 Start the engine, release the lawnmower lever
and check that the engine stops within 3 sec-
onds.
WARNING! Never return the lawnmower to
your client without checking brake efficiency.
Special equipment
– Universal tester
SV 150
6.7.0
TURNING OFF AND STOPPING THE ENGINE




3 / 3
 
WORKSHOP MANUAL
page
from
2004 to ••••
01/2005
22
25
29
21
23
24
26
26
25
27
28
25
