6.8 EXHAUST SYSTEM
GENERAL INFORMATION
The exhaust system consists of a muffler installed
on the cylinder together with a gasket, a spacer and
a heatproof baffle.
A malfunctioning exhaust system may lead to a loss
in power or excess noise. However, the muffler is a
preassembled part which cannot and must not be
disassembled or repaired but only replaced.
SERVICING PROCEDURES

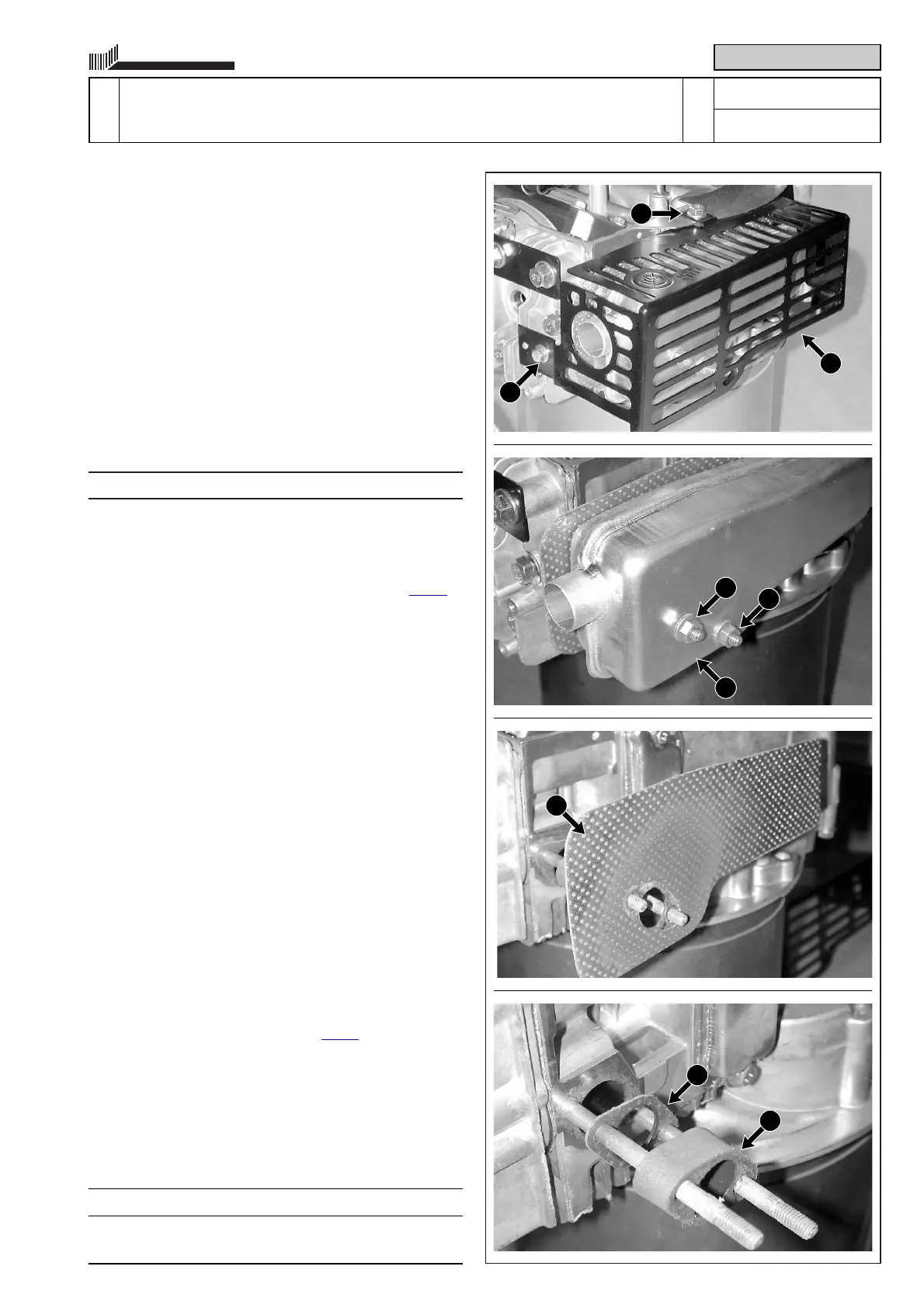

A) Removing and replacing the muffler
1 Remove the conveyor with the tank [ 6.1.A
].
2 Remove the cover (1) secured by three screws
(2).
3 Unscrew the two nuts (3) and take out the muf-
fler (4), the heatproof baffle (5), the spacer (6)
and the gasket (7).
4 When mounting:
– thoroughly clean the cylinder contact surface,
removing all gasket fragments or deposits;
– always replace the gasket (7) and check that
the spacer (6) is intact;
– always replace the heatproof baffle (5) if it is
broken or cracked;
– tighten the two nuts (3) to the specified levels.
5 Remount the conveyor [ 6.1.A
].
Tightening torques
3 Muffler nuts .......................................... 6-8 Nm
SV 150
6.8.0
EXHAUST SYSTEM




1 / 1

WORKSHOP MANUAL
page
from
2004 to ••••
01/2005
7
6
3
3
5
2
2
4
1
