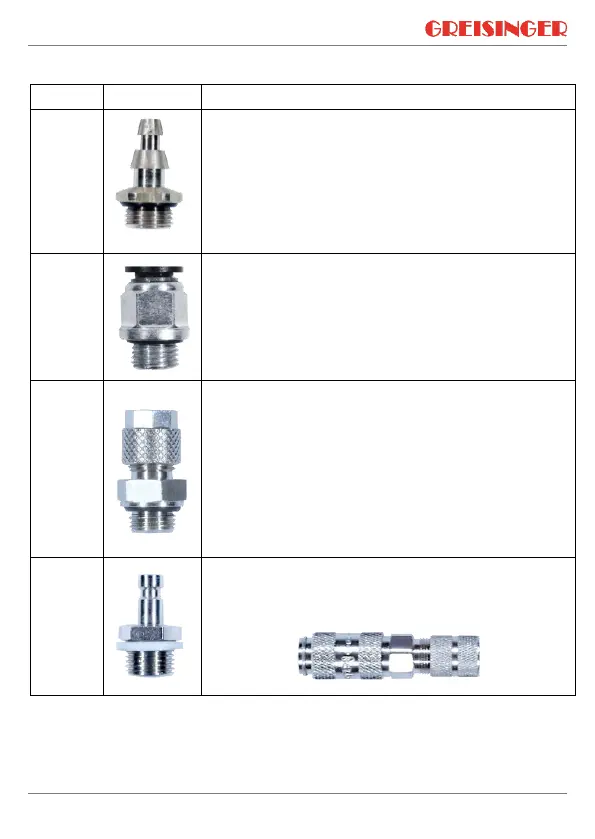

Supplied connection:
Universal hose connection for 6 x 1 mm (4 mm in-
side) and 8 x 1 mm (6 mm inside) hoses.
The universal hose connection is suitable for plastic and
silicon hoses with an outer diameter of 6 mm, for which
purpose the hoses are simply connected to the upper
part. Rubber/silicon hoses with a larger diameter (e.g. 8
mm) can also be connected. They are fit on the lower
part for this purpose.
Quick-Connect for Ø 6 mm hoses.
The practical quick-change connection is only suitable for
plastic hoses with 6 mm outer diameter. The hose end
must be clean and undamaged for connection. It is fit by
simply pushing it in until the mechanical stop is reached.
It is disconnected by simultaneously pressing the ring on
the upper end of the connection and pulling the hose.
Screw connection for 6 x 1 mm (Ø 4 mm inside)
plastic hoses.
The secure screw connection is only suitable for plastic
hoses with 6 mm outer diameter (Ø 4 mm inside). The
hose end must be clean and undamaged for connection.
The union nut must be loosened before connection. Then
the hose is pushed onto the hose nipple up to the me-
chanical stop. The union nut is hand-tightened to secure
the connection. Disconnection takes place by loosening
the union nut and pulling on the hose.
MCM mini-quick-coupler plug connector.
Compatible quick-couplers with nominal width 2.7 mm
can be used:
