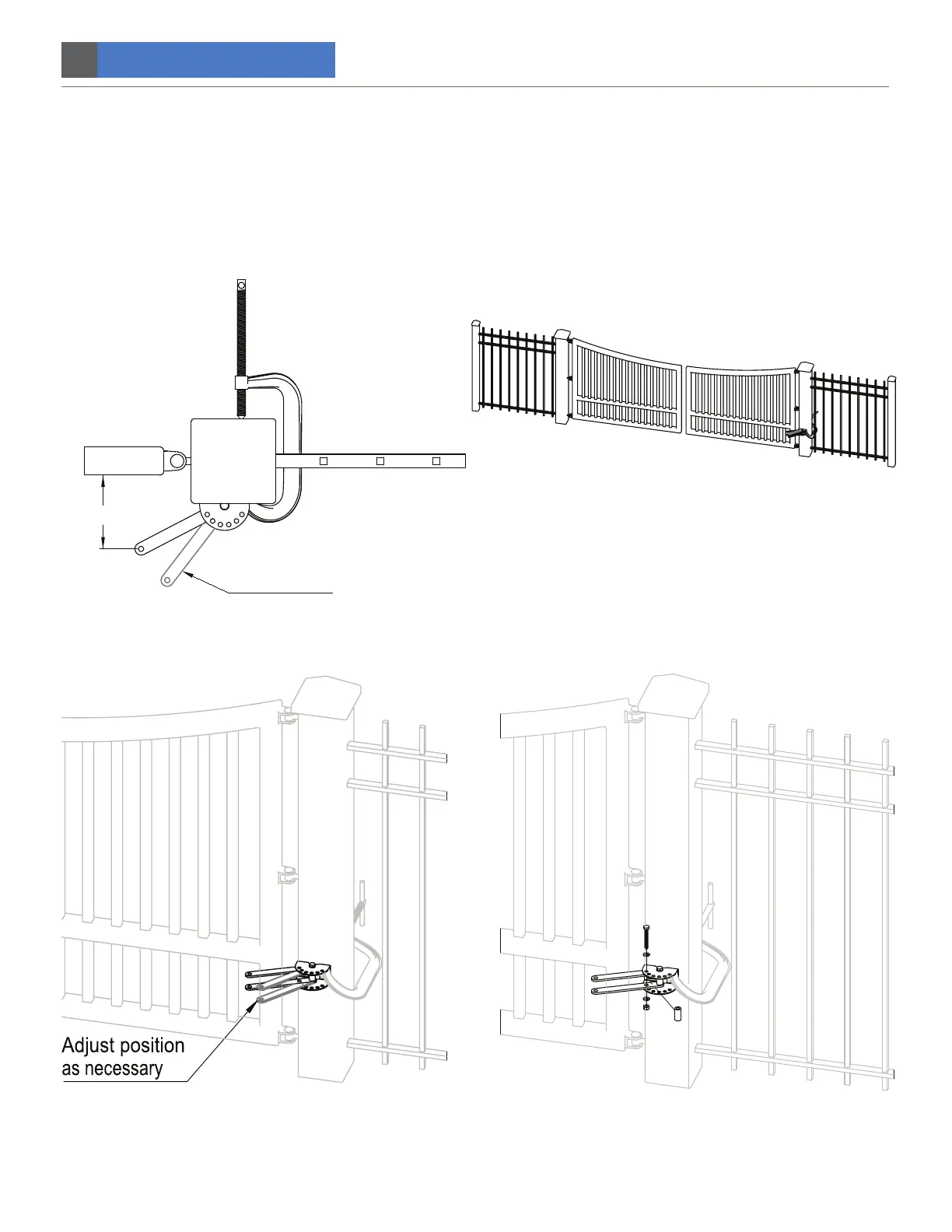

STEP 4. Verifying minimum of 4˝ gate clearance and finishing rear post mount bracket assembly.
If the clearance is less than 4˝, you will need to adjust the pivot brackets so that you have at least 4˝ of clearance.
Once the clearances are correct, place the secondary bolt into the post bracket as shown. Insert the M10x1.5x
75mm bolt and M10 washer through the post bracket hole, then first push-to-open bracket, pivot spacer, second
push-to-open bracket, and exit out bottom hole of post bracket as shown below. Fasten a M10 washer and M10
locknut on the end of the bolt. Finish by tightening both bolts on post bracket.
>4.0
Adjust position
as necessary
