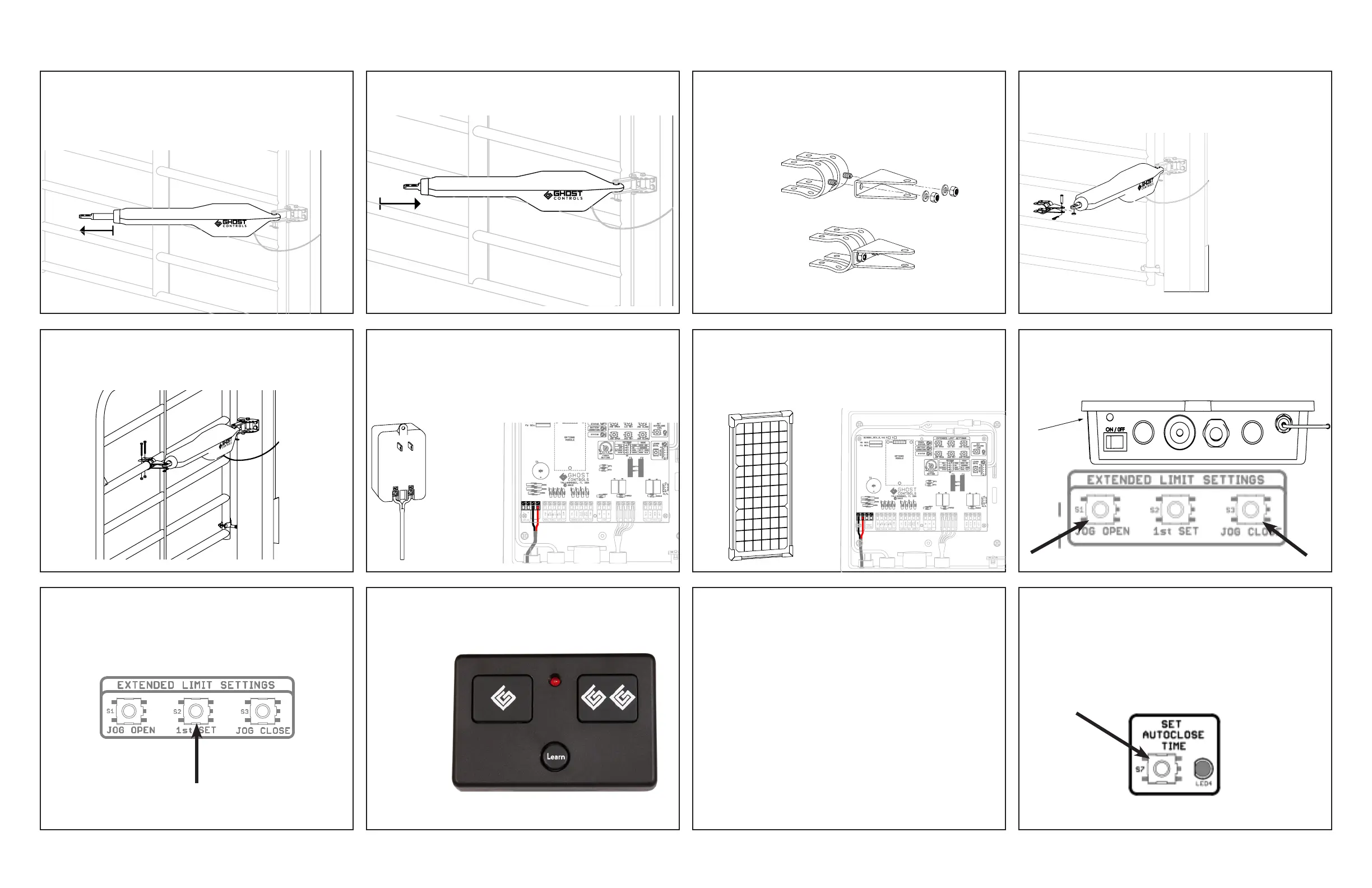

11. Turn the control box to the on position using the switch
located on the bottom left side of the control box. Press
and hold the Transmitter button to run the arm out a few
inches. Press the Transmitter button to retract the arm
until it stops on its own. Turn the control box o.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May16
Arm Extension
A
2018May11
1:12
CAY
CAY
2
PART
DWG
1
1
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
N/A
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS120 Arm Extension
PAGE NUMBER
QS120 Extend Arm
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
Quick Start Assembly
SHEET SIZE
14B. Place the bracket assembly on the gate and tighten
the bolts. This will determine the open position of the gate.
Adjust the gate bracket as needed to achieve the desired
open position.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May17
Install Gate Bracket Fasteners
A
2018May11
1:12
2
PART
DWG
1
0
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
N/A
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS160 Install Gate Bracket Fasteners
PAGE NUMBER
QS160 Install Gate Bracket Fasteners
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
Quick Start Assembly
SHEET SIZE
18. Press and hold the 1st SET button until it beeps,
then release. Press the transmitter button to activate
the gate and let the gate open fully. When the gate
reaches its open position, the control board will sound
a single beep, confirming the closed limit has been set.
12. The arm has an internal limit switch that is fixed and is
not adjustable. The arm in the fully retracted position will
determine the open position of the gate.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May16
Arm Retraction
A
2018May11
1:12
CAY
CAY
2
PART
DWG
1
1
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
N/A
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS130 Arm Retraction
PAGE NUMBER
QS130 Retract Arm
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
Quick Start Assembly
SHEET SIZE
15. If using AC power to recharge your battery, connect
the transformer wires to the transformer and to the control
board as shown. The transformer is not polarity sensitive so
either wire can go to either terminal. The left terminal will
not be used. Do not plug in the transformer until the wiring
has been completed.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May17
18VAC Power Wiring
A
2018May08
1:2
2
PART
DWG
0
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS170 18VAC Wiring
PAGE NUMBER
QS170 18VAC Power Wiring
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
cbox-asm_asm
SHEET SIZE
19. Press the transmitter button to activate the gate and
confirm the closed position has been set correctly. Repeat
steps 19 and 20 if needed to change your desired closed
position.
13. For attaching the operator to a tube gate, assemble the
gate bracket assembly as shown. For other types of gates,
please refer to the installation manual for alternative
mounting solutions.
Exploded
Assembled
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May17
QS140
A
2018Apr17
1:2
CAY
CAY
2
PART
DWG
1
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS140 RH Drawing
PAGE NUMBER
QS140 Assemble Gate+Tube Brackets
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
GBK6BA Gate Mount Bracket Assembly
SHEET SIZE
16. If solar power is being used to charge your battery,
connect the red wire from the solar panel to the positive
(+) terminal and connect the black wire to the negative (-)
terminal as shown. The middle terminal will not be used.
Do not use solar and transformer power at the same time.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May17
Solar Power Wiring
A
2018May08
1:2
2
PART
DWG
0
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS180 Solar Power
PAGE NUMBER
QS180 Solar Power Wiring
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
cbox-asm_asm
SHEET SIZE
20. For a Dual system, repeat steps 3-7, 10, 12-16, and 19-
21 with the second operator arm. We recommend that you
get the first arm completely installed and working properly
before installing the second arm so that you can isolate
any connection problems on each arm before proceeding
further.
14A. Move the gate to the desired open position. Attach
the gate bracket assembly to the fully retracted operator as
shown.
6
5
4
3
1
A
C
D
E
F
G
H
B
6
2
3
1
5
4
A
C
G
H
F
B
D
E
SHEET SCALE
PART/ASSEMBLY NUMBER
PART/ASSEMBLY DESCRIPTION
DRAWING SHEET TITLE
DWG REVISOR
DRAWN BY
DRAWN ON
REVISED ON
2018May17
AttachGateBracket2FrontMount
A
2018May11
1:9
CAY
CAY
2
PART
DWG
1
1
PART/ASSEMBLY CONFIGURATION NAME
MATERIAL(S)
N/A
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF GHOST CONTROLS, LLC. ANY REPRODUCTION IN
PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
GHOST CONTROLS, LLC. IS PROHIBITED. DESIGNS, PRODUCTS,
AND DRAWINGS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
1 of 1
REVISION
NUMBERS
UNLESS OTHERWISE SPECIFIED:
LENGTH DIMENSIONS PROVIDED ARE IN MILLIMETERS (mm)
LENGTH DUAL DIMENSIONS ARE IN INCHES (in)
ANGULAR DIMENSIONS PROVIDED ARE IN DEGREES (
)
QS150 Attach Gate Bracket to Front Mount
PAGE NUMBER
QS150 Install Gate Bracket
DRAWING FILE NAME
PART/ASSEMBLY FILE NAME
Quick Start Assembly
SHEET SIZE
17. Turn the control box on. Press and hold the JOG
CLOSE button until the gate reaches your desired closed
position. Use both JOG OPEN and JOG CLOSE as need-
ed to fine tune your desired closed position.
21. To set the AUTOCLOSE feature, press and hold the
SET AUTOCLOSE TIME button until it beeps. Wait
until the desired autoclose time has been reached (the led
will blink once a second) then press and release the SET
AUTOCLOSE TIME button. Autoclose time can be set
from 6 seconds to 60 minutes.
CLOSE-UP VIEW
OF BOTTOM OF
CONTROL BOX
QSG6AA-0818
