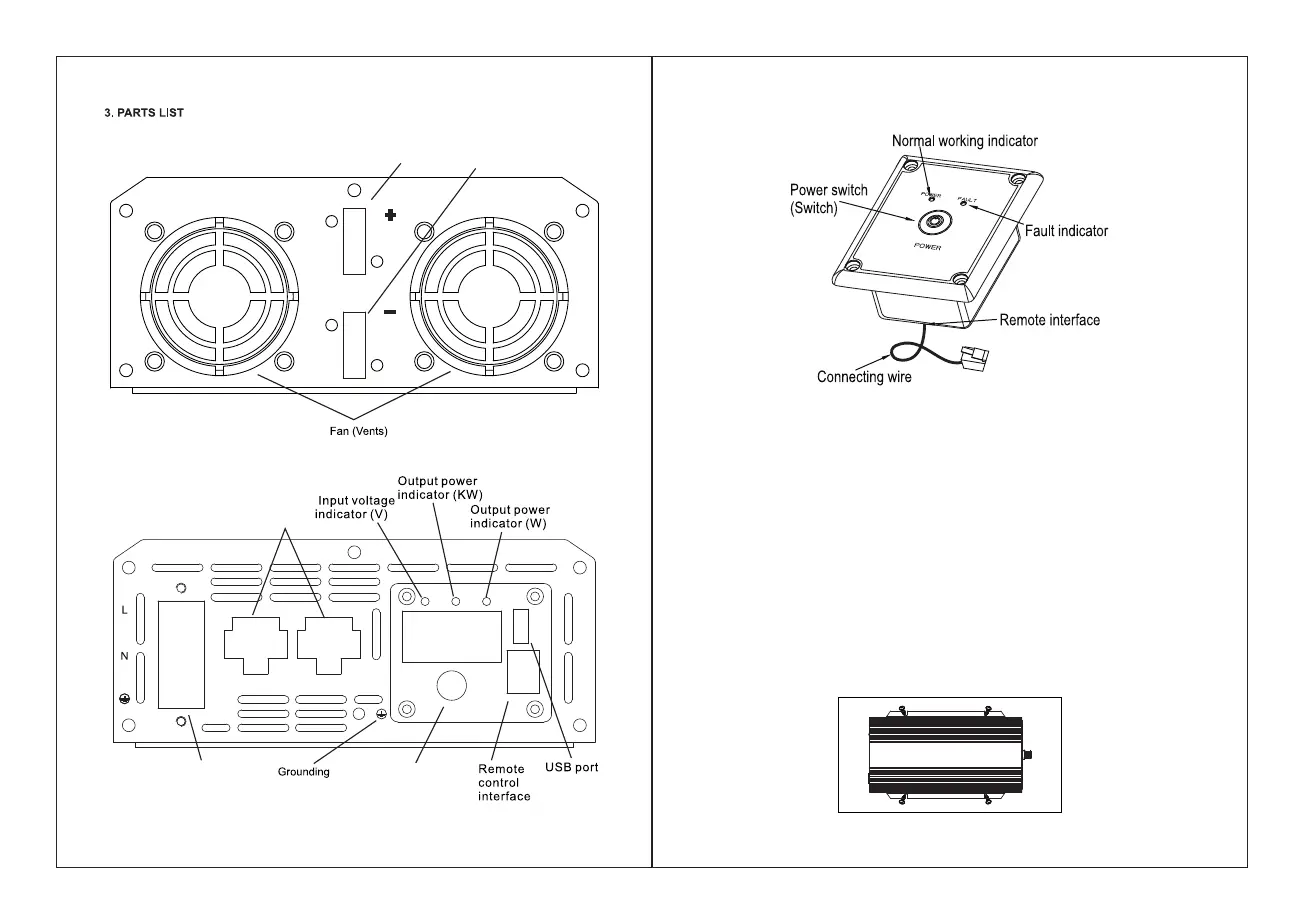

AC output socket
Power ON/OFF switch
3 4
Positive of DC
input(+)
Nagative of DC
input(-)
Remote controller box
4. INSTALLATION
Ensure there is enough space for the installation, and the location should be meet the
following requirements:
1. Water should not access the inverter.
2. The ambient temperature should be 32~104°F, and the preferred temperature is 50-
77°F. The lower the better in this range of ambient temperature.
3. Allow for 12 inches around the inverter for adequate air flow.
4. Do not mount the inverter upside down.
5. We recommend mounting the inverter on something stable to prevent it from
bouncing. Impact shock could result in damage to your unit. Be sure to use all four
mounting screws for optimal stability. Mount in a location that can support the weight
of the inverter.
6. Allow 12 inches of space around the inverter to prevent objects from blocking the
vents and to provide enough air to circulate.
7. Do not install the inverter in an environment with high dust, saw dust residue or other
particles that may get sucked into the inverter increasing internal temperature.
8. There will be some electrical arcing or spark when the inverter connects with the
battery. Combustible materials such as gasoline, alcohol, etc. should not be around
the inverter.
AC hard wire terminals
