Giant AC - Chain Tension Device

Pag. -10-

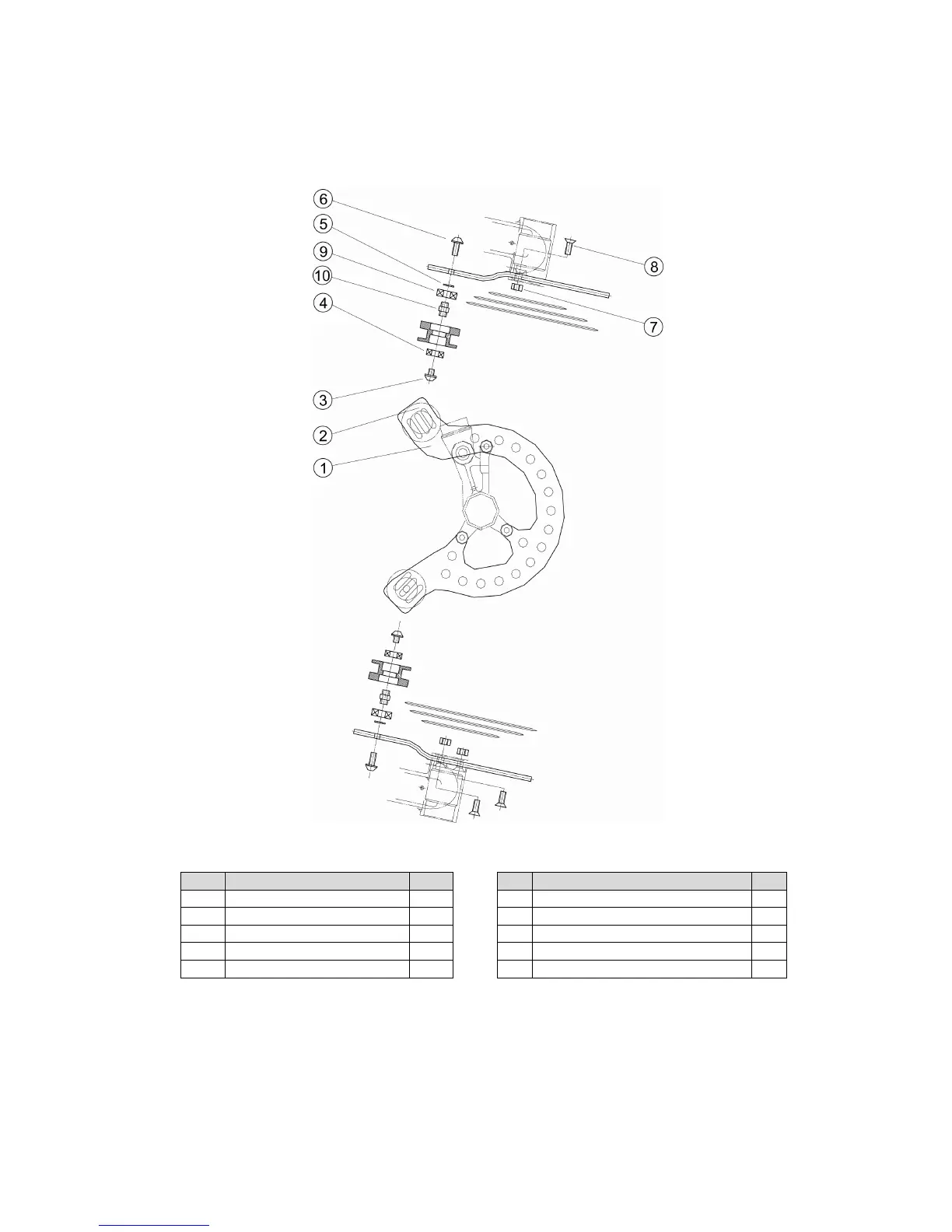

5. Chain tension device.
Nr. Description Qty. Nr.
Description Qty.
1 Body, aluminium 1 6 Bolt M6x16mm. with flat washer 2
2 Roller (pulley) 2 7 Nut M6 with nylon ring 3
3 Bolt M6x8mm. with washer
2 8 Taper bolt M6x17.5mm. 3
4 Roller bearing 6x19mm. 2 9 Roller bearing 7x22mm. 2
5 Washer 13x6.4x1.2mm. 2 10 Shaft, steel 2
Figure
4.
