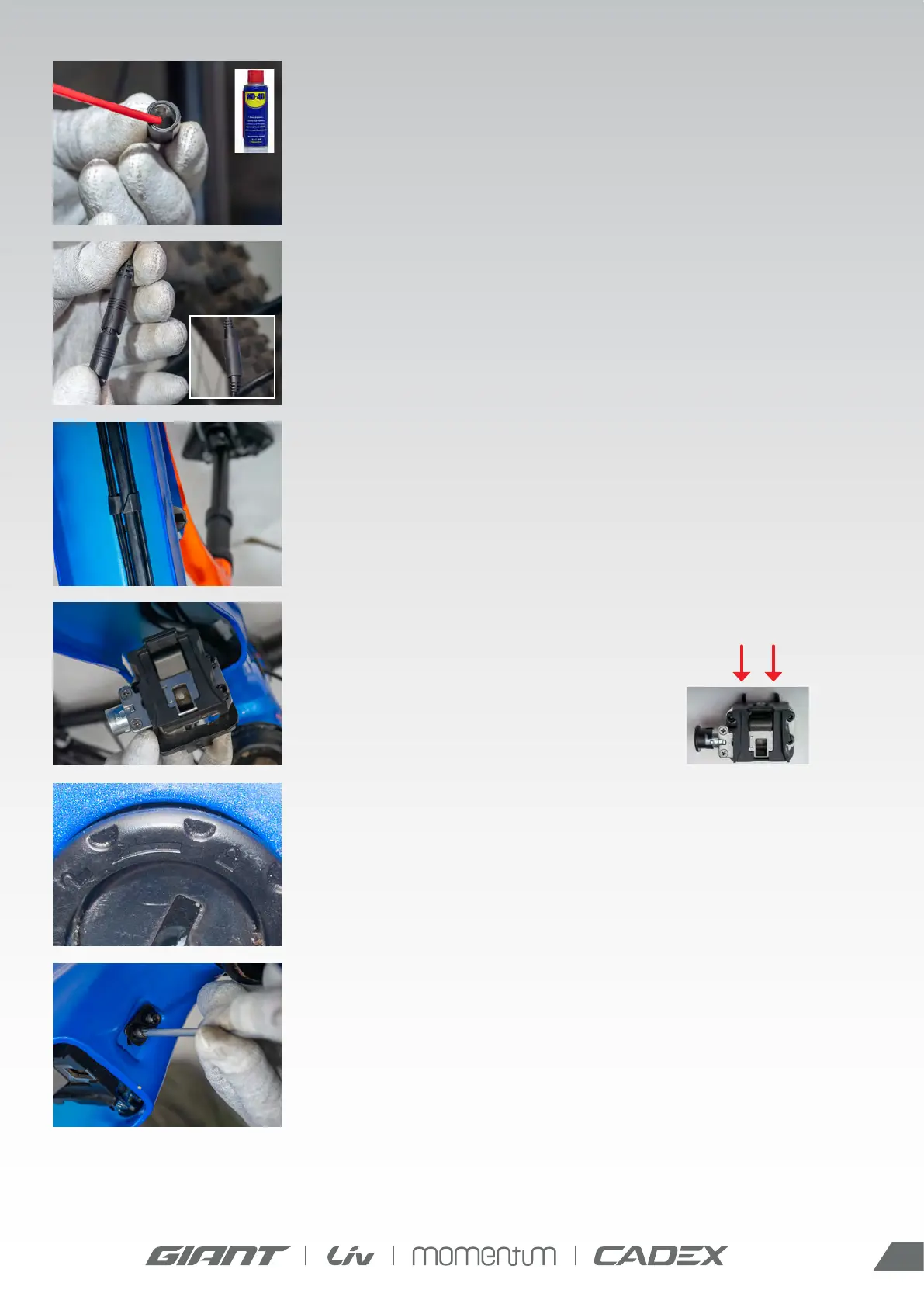

Spray a little bit of WD-40 on to the rubber hose, this makes it easier to
slide the hose onto the connectors. WD-40 also drives out moisture.
19
Connect the connectors to each other and slide the hose over the con-
nectors.
20
Make sure that all the cables are aligned correct into the frame. If the
cables are not aligned correctly the battery won’t fit and the locking
mechanism won’t function properly.
21
Mount the locking mechanism back in to the frame. Make sure the cables
are aligned between point A and B. B A
22
Place the plastic lock ring back by turning it clockwise.
To ensure that the lock ring is mounted correctly, make sure that the
lock- and unlock sign are on top of the ring.
23
Tighten the two screws of the locking mechanism at 1 Nm..
