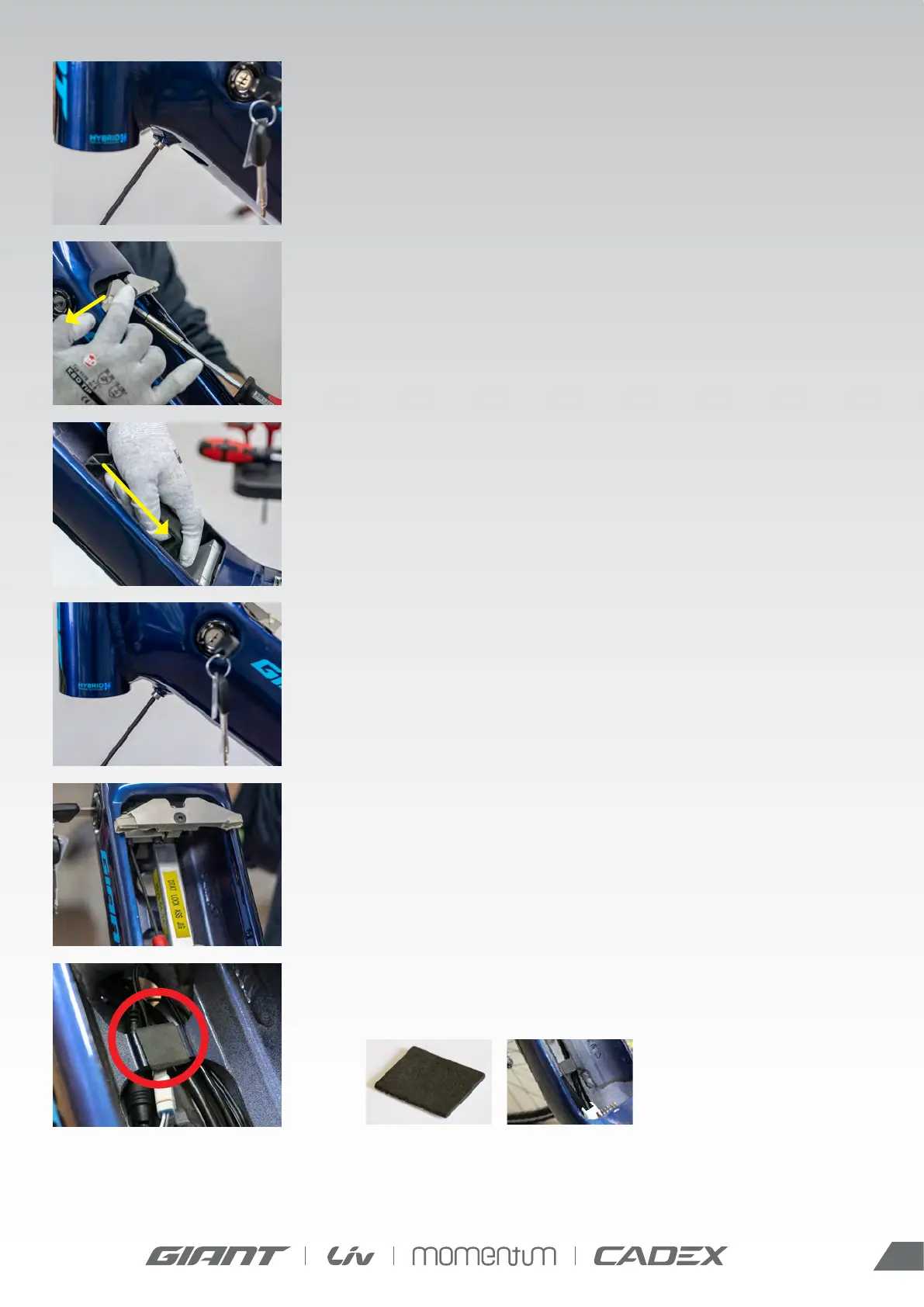

Loosen the bolt on the bottom of the down tube.
7
Push the upper side of the battery positioning tool carefully as close as
possible towards the frame.
Tighten the 3 bolts that keep the lock assembly in place. (5-6 Nm.)
8
Push the battery positioning tool as close as possible towards the bottom
of the tube.
9
Tighten the bolt on the bottom of the down tube.
10
Loosen the single bolt that fixes the battery positioning tool onto the lock
assembly and take it out.
Then remove the battery positioning tool out of the frame.
11
Add dampening foam frame to reduce vibration. Peel off the paper cover,
and stick each foam piece in the middle on both “bridges” in the frame.
One up near the lock, the other down near the power connector.
