Gigabyte B360M D3P User Manual

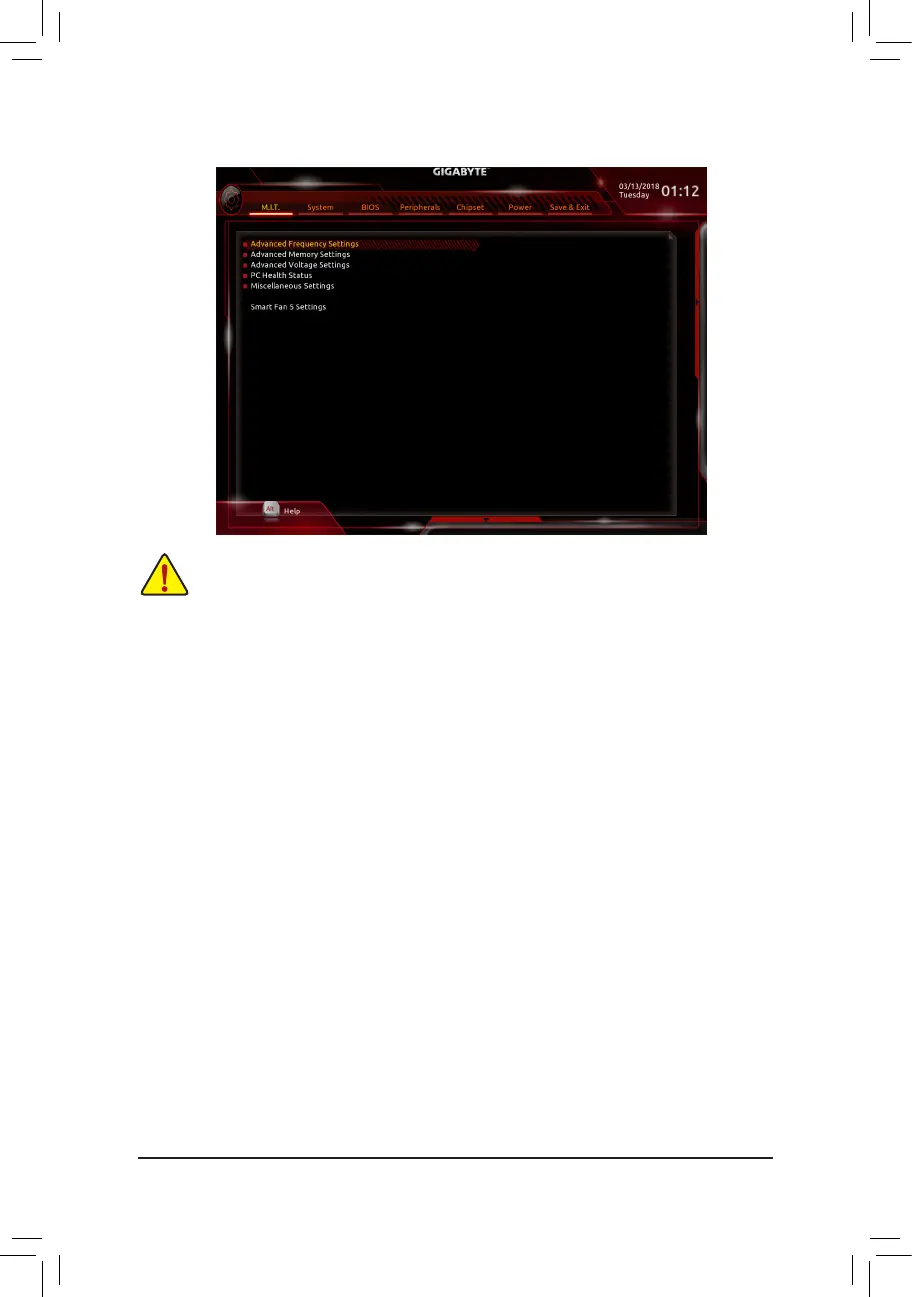

2-3 M.I.T.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
systemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamagetoCPU,chipset,ormemory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)
` Advanced Frequency Settings
& Host Clock Value
Displays the current operating Host Clock frequency.
& Graphics Slice Ratio
(Note)
Allows you to set the Graphics Slice Ratio.
& Graphics UnSlice Ratio
(Note)
Allows you to set the Graphics UnSlice Ratio.
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& CPU Frequency
Displays the current operating CPU frequency.
& FCLK Frequency for Early Power On
Allows you to set the FCLK frequency. Options are: Normal(800Mhz), 1GHz, 400MHz. (Default: 1GHz)
` Advanced CPU Core Settings
& CPU Clock Ratio, CPU Frequency, FCLK Frequency for Early Power On
The settings above are synchronous to those under the same items on the Advanced Frequency Settings
menu.
& AVX Offset
(Note)
AVX offset is the negative offset of AVX ratio.
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 21 -

Gigabyte B360M D3P Specifications

General

Manual	Yes
Cables included	SATA
Bundled software	Norton Internet Security, cFosSpeed
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B360 Express
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Maximum graphics card memory	1024 MB
Number of displays supported	3
Parallel processing technology support	CrossFire
DisplayPort version	1.2
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	6
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7

Weight and Dimensions

Depth	230 mm
Width	244 mm
