Gigabyte B360M D3P User Manual

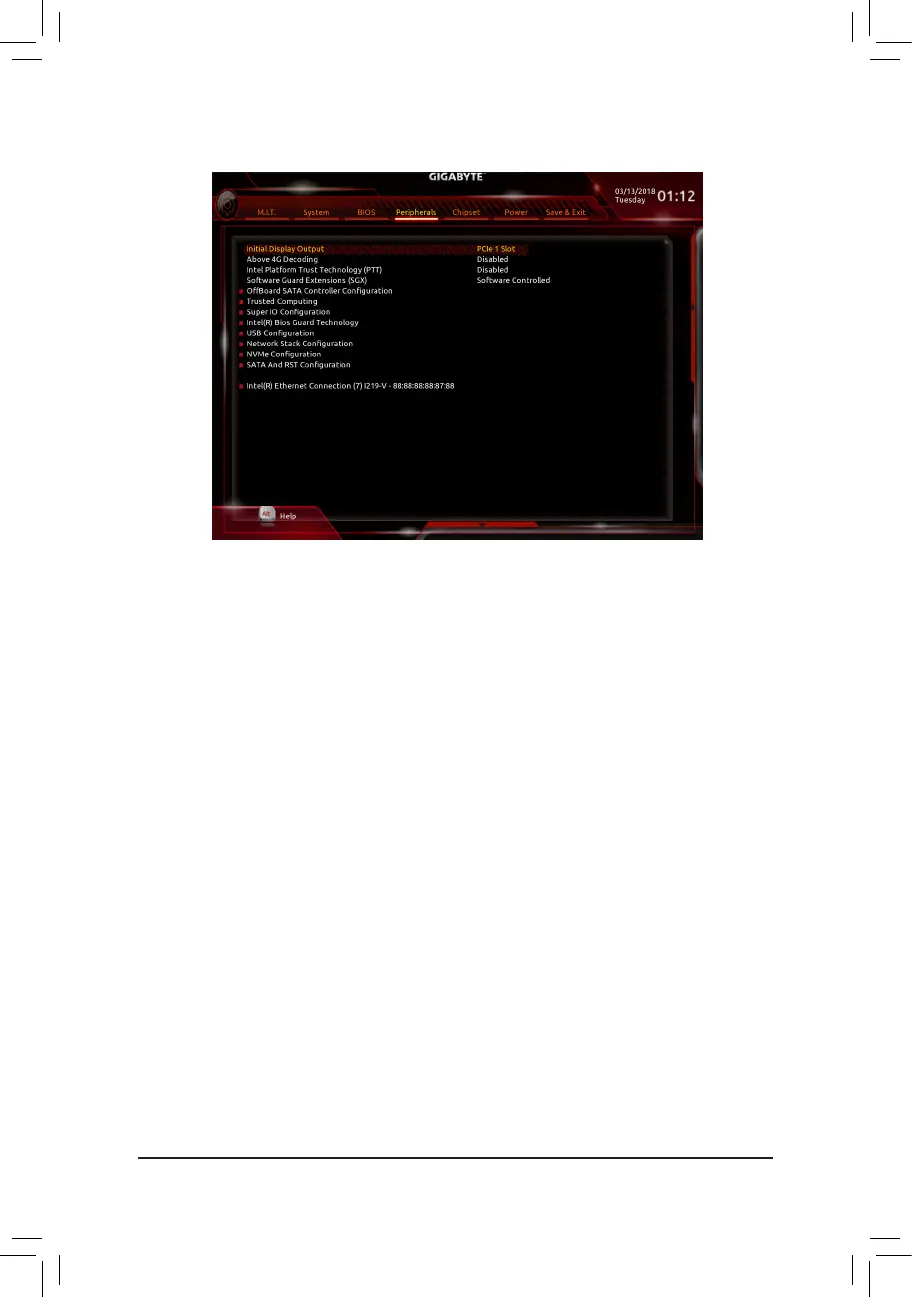

2-6 Peripherals
& Initial Display Output
 SpeciestherstinitiationofthemonitordisplayfromtheinstalledPCIExpressgraphicscardortheonboard
graphics.
IGFX   Setstheonboardgraphicsastherstdisplay.
PCIe1Slot SetsthegraphicscardonthePCIEX16slotastherstdisplay.(Default)
PCIe2Slot SetsthegraphicscardonthePCIEX4slotastherstdisplay.
& Above 4G Decoding
Enables or disables 64-bit capable devices to be decoded in above 4 GB address space (only if your system
supports 64-bit PCI decoding). Set to Enabled if more than one advanced graphics card are installed and
their drivers are not able to be launched when entering the operating system (because of the limited 4 GB
memory address space). (Default: Disabled)
& Intel Platform Trust Technology (PTT)
Enables or disables Intel
®
PTT Technology. (Default: Disabled)
& Software Guard Extensions (SGX)
Enables or disables the Intel
®
Software Guard Extensions technology. This feature allows legal software
to operate in a safe environment and protects the software against attacks from malicious software. The
Software Controlled option allows you to enable or disable this feature with an Intel-provided application.
(Default: Software Controlled)
` OffBoardSATAControllerConguration
Displays information on your M.2 PCIe SSD if installed.
` Trusted Computing
Enables or disables Trusted Platform Module (TPM).
` SuperIOConguration
& Serial Port
Enables or disables the onboard serial port. (Default: Enabled)
- 31 -

Gigabyte B360M D3P Specifications

General

Manual	Yes
Cables included	SATA
Bundled software	Norton Internet Security, cFosSpeed
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B360 Express
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
Graphics card	HD Graphics
Maximum resolution	4096 x 2304 pixels
Maximum graphics card memory	1024 MB
Number of displays supported	3
Parallel processing technology support	CrossFire
DisplayPort version	1.2
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Number of SATA III connectors	6
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
Desktop Management Interface (DMI) version	2.7

Weight and Dimensions

Depth	230 mm
Width	244 mm
