Gigabyte B460M DS3H V2 User Manual

Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
system congurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)

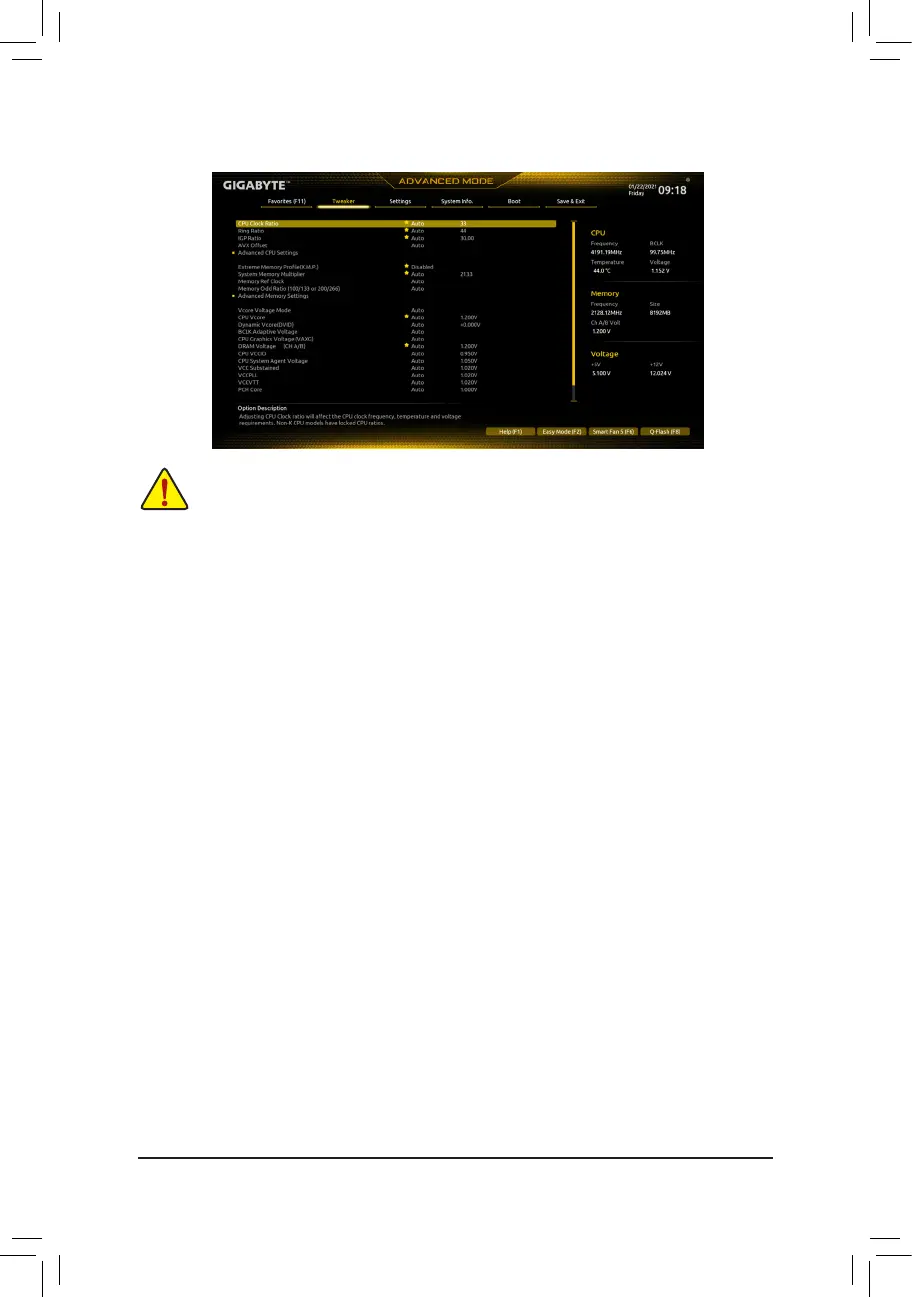

& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& Ring Ratio
Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. (Default:
Auto)
& IGP Ratio
(Note)
Allows you to set the Graphics Ratio. (Default: Auto)
& AVX Offset
(Note)
AVX offset is the negative offset of AVX ratio.
 Advanced CPU Settings
& CPU Over Temperature Protection
(Note)
Allows you to ne-tune the TJ Max offset value. (Default: Auto)
& FCLK Frequency for Early Power On
Allows you to set the FCLK frequency. Options are: Normal(800Mhz), 1GHz, 400MHz. (Default: 1GHz)
& Hyper-Threading Technology
Allows you to determine whether to enable multi-threading technology when using an Intel
®
CPU that
supports this function. This feature only works for operating systems that support multi-processor mode.
Auto lets the BIOS automatically congure this setting. (Default: Auto)
& No. of CPU Cores Enabled
Allows you to select the number of CPU cores to enable in an Intel
®
multi-core CPU (the number of CPU
cores may vary by CPU). Auto lets the BIOS automatically congure this setting. (Default: Auto)
& VT-d
Enables or disables Intel
®
Virtualization Technology for Directed I/O. (Default: Enabled)
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
2-4 Tweaker
- 23 -

Gigabyte B460M DS3H V2 Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1)
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10
BIOS type	UEFI
ACPI version	5.0
BIOS memory size	256 Mbit
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Width	244 mm
