Gigabyte B460M DS3H V2 User Manual

Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

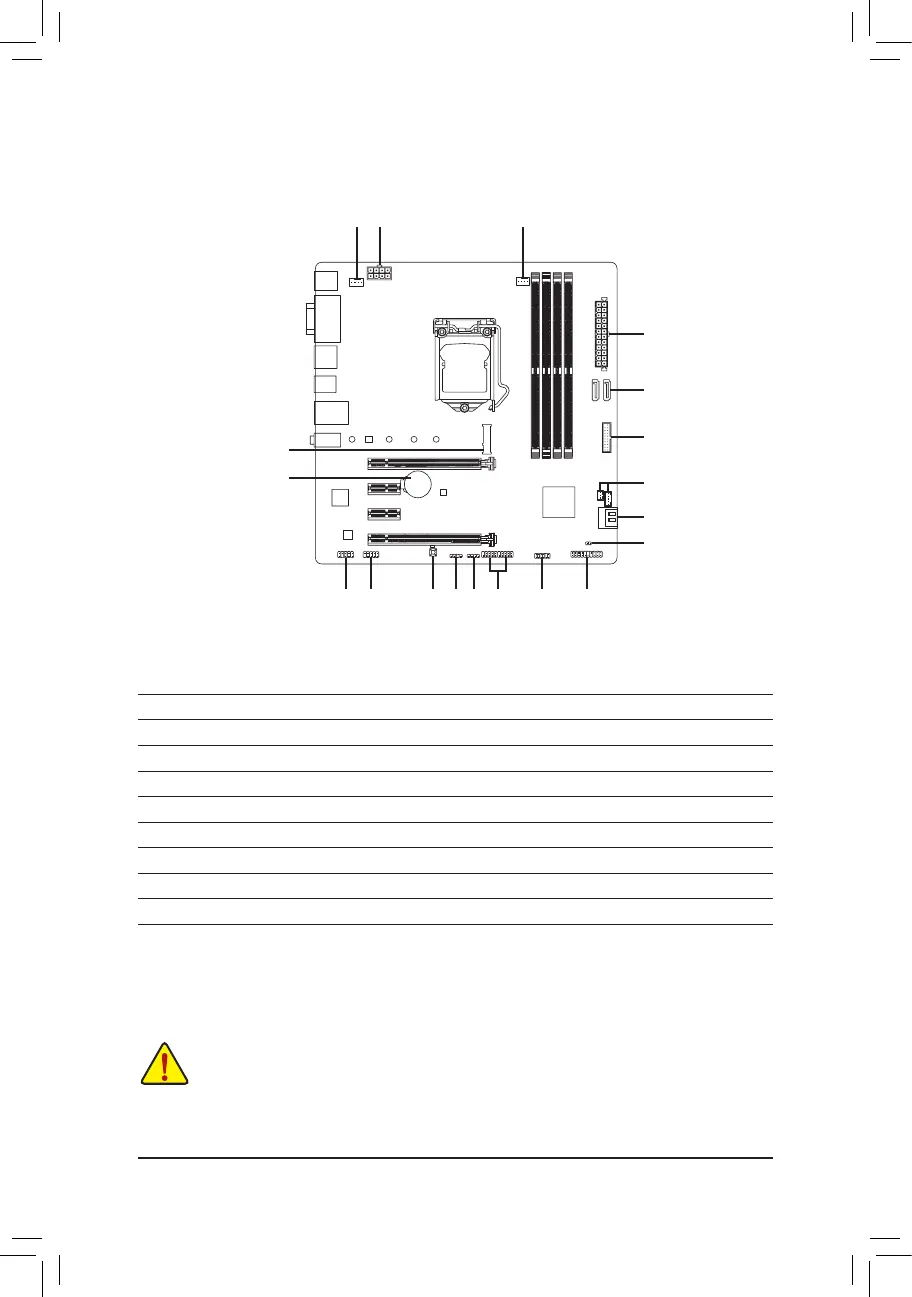

1-7 Internal Connectors
10
12
8
16
17
2
8
5 611 14
1
4
7
18
9
13 15
3
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1
5) D_LED1
6) LED_C1
7) QFLASH_PLUS
8) SATA3 2/3/4/5
9) M2Q_SB
10) F_ PANEL
11) F_ AUDIO
12) F_U32
13) F_USB1/F_USB2
14) COM
15) SPI_TPM
16) THB_C1/THB_C2
17) CLR_CMOS
18) BAT
- 12 -

Gigabyte B460M DS3H V2 Specifications

General

Processor socket	LGA 1200 (Socket H5)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, SATA III, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1)
Parallel processing technology support	2-Way CrossFireX
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	-
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel B460
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10
BIOS type	UEFI
ACPI version	5.0
BIOS memory size	256 Mbit
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Width	244 mm
