Gigabyte B550 AORUS ELITE AX User Manual

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory
of the same capacity, brand, speed, and chips be used.
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

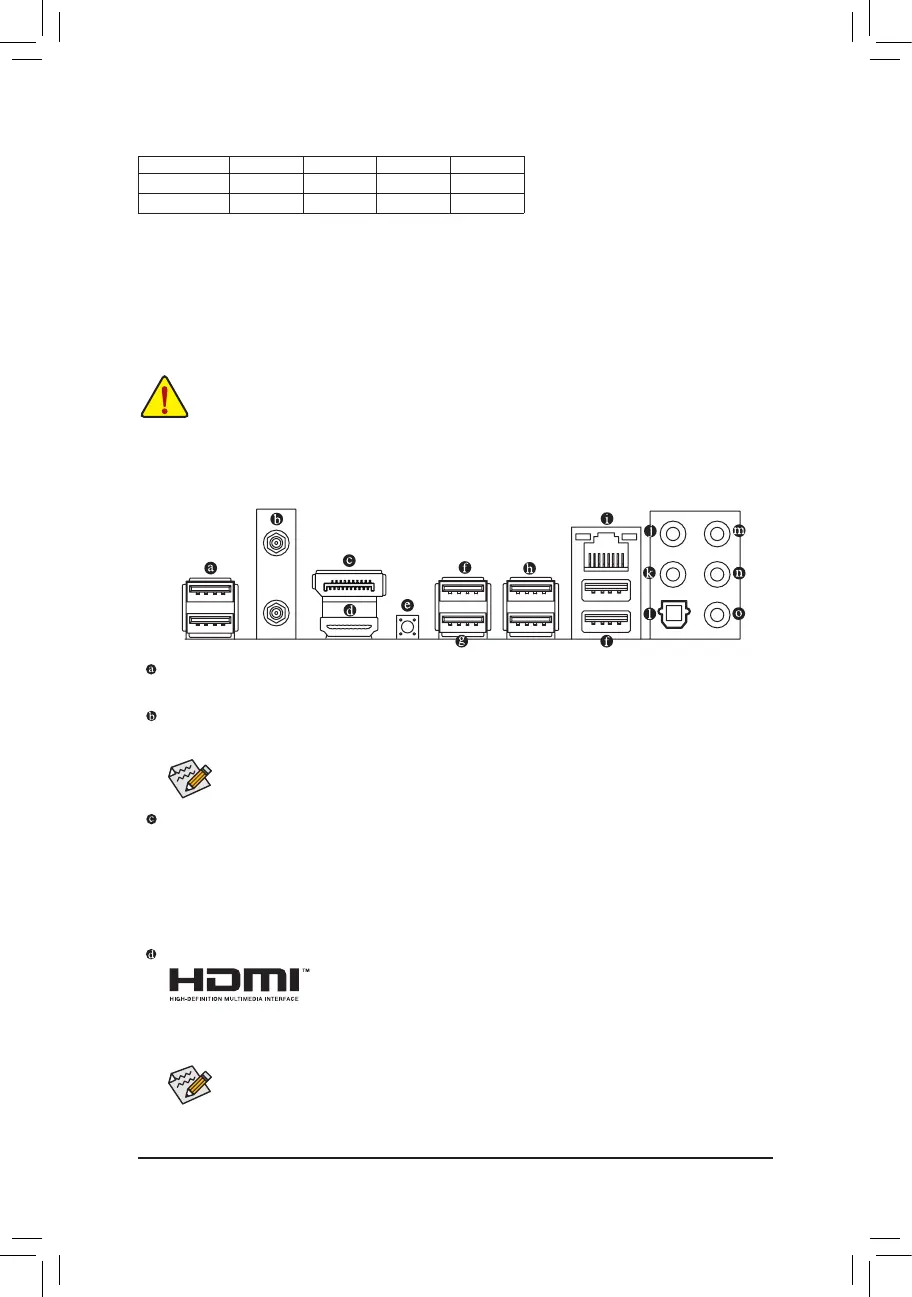

1-6 Back Panel Connectors
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.
SMA Antenna Connectors (2T2R)
(Note 1)
Use this connector to connect an antenna.
DisplayPort
(Note 2)
DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.
DisplayPort can support both DPCP and HDCP 2.3 content protection mechanisms. It provides improved
visuals supporting Rec. 2020 (Wide Color Gamut) and High Dynamic Range (HDR) for Blu-ray UHD
playback. You can use this port to connect your DisplayPort-supported monitor. Note: The DisplayPort
Technology can support a maximum resolution of 5120x2880@60 Hz but the actual resolutions supported
depend on the monitor being used.
HDMI Port
(Note 2)
The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS
HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel
LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum
supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the
monitor being used.
After installing the DisplayPort/HDMI device, make sure to set the default sound playback device
to DisplayPort/HDMI. (The item name may differ depending on your operating system.)
Recommanded Dual Channel Memory Conguration:
DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
2 Modules
- - DS/SS - - DS/SS
4 Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Tighten the antennas to the antenna connectors and then aim the antennas correctly for better
signal reception.
- 11 -

Gigabyte B550 AORUS ELITE AX Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
PCIe x16 Slots	2
PCIe 4.0 x16	1
PCIe 3.0 x16	1
PCIe x1 Slots	3
M.2 Slots	2
Wireless	Yes
Storage	6 x SATA 6Gb/s
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
LAN	Realtek 2.5GbE
Audio	Realtek ALC1200
RGB Headers	2
USB Ports	4 x USB 2.0
Ethernet	1 x 2.5GbE
