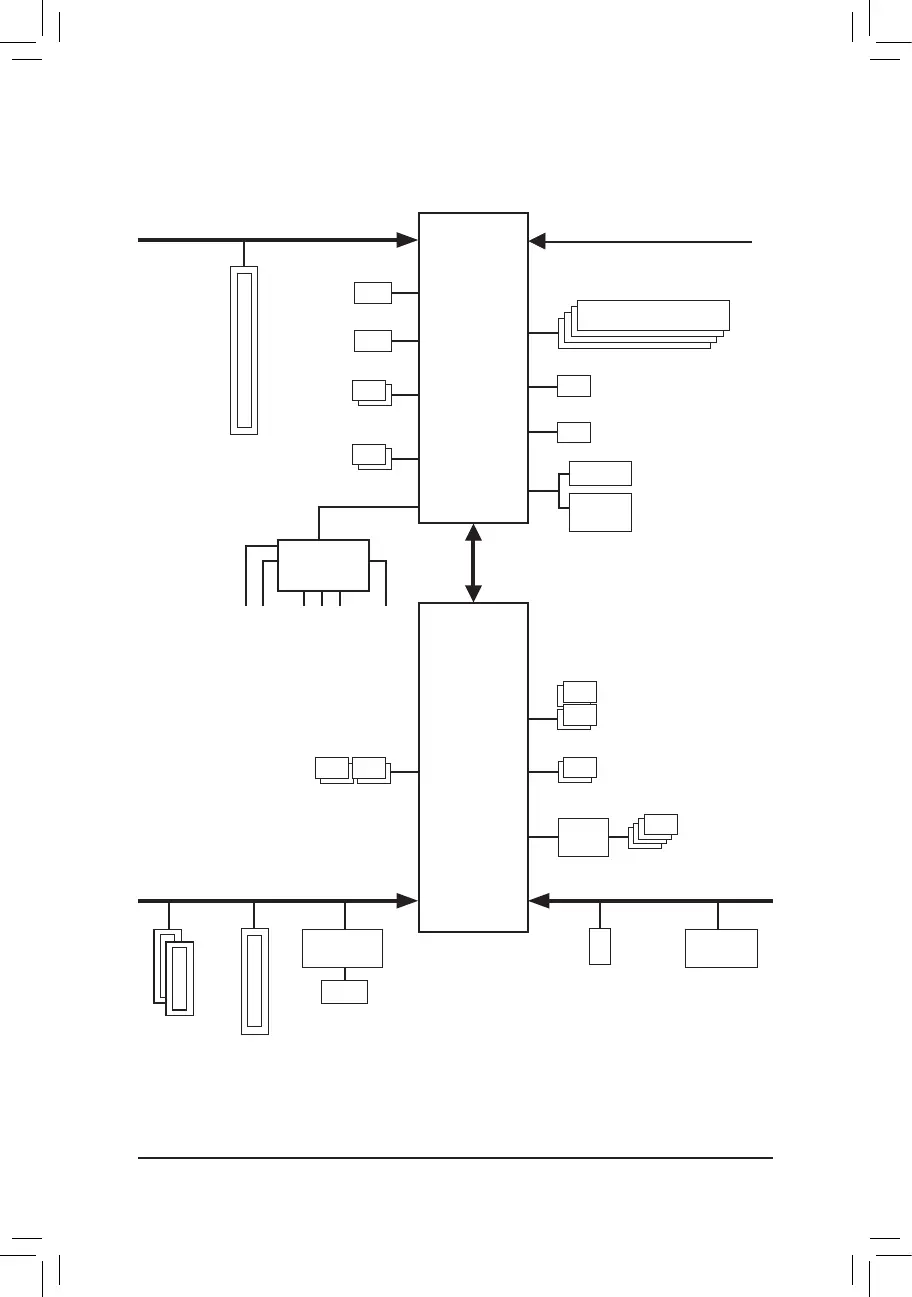

B550 AORUS ELITE (AX) Motherboard Block Diagram
CPU CLK+/- (100~500 MHz)
PCI Express 4.0/3.0 Bus
PCIe 3.0 x4
LAN
RJ45
Realtek
®
2.5GbE LAN
4 SATA 6Gb/s
PCI Express 3.0 Bus
4 USB 2.0/1.1
4 USB 3.2 Gen 1
2 USB 3.2 Gen 1
AMD B550
x2 x1
HDMI
1 PCI Express x2
USB 2.0
Hub
1 M.2 Socket 3
(M2A_CPU)
LPC
Bus
TPM
iTE
®
Super I/O
SPI
Bus
BIOS
x16
1 PCI Express x16
DDR4 3200/2933/2667/2400/2133 MHz
2 PCI Express x1
x1
1 M.2 Socket 3
(M2B_SB)
2 USB 2.0/1.1
DisplayPort
Center/Subwoofer
Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
CODEC
AMD Socket
AM4 CPU
2 USB 3.2 Gen
2 Type A
PCI Express 3.0 Bus
M.2 WIFI
Module
(Note)
x1
(Note) Only for the B550 AORUS ELITE AX.

Gigabyte B550 AORUS ELITE AX Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
PCIe x16 Slots	2
PCIe 4.0 x16	1
PCIe 3.0 x16	1
PCIe x1 Slots	3
M.2 Slots	2
Wireless	Yes
Storage	6 x SATA 6Gb/s
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
LAN	Realtek 2.5GbE
Audio	Realtek ALC1200
RGB Headers	2
USB Ports	4 x USB 2.0
Ethernet	1 x 2.5GbE
