Gigabyte B550 AORUS ELITE AX User Manual

- 4 -

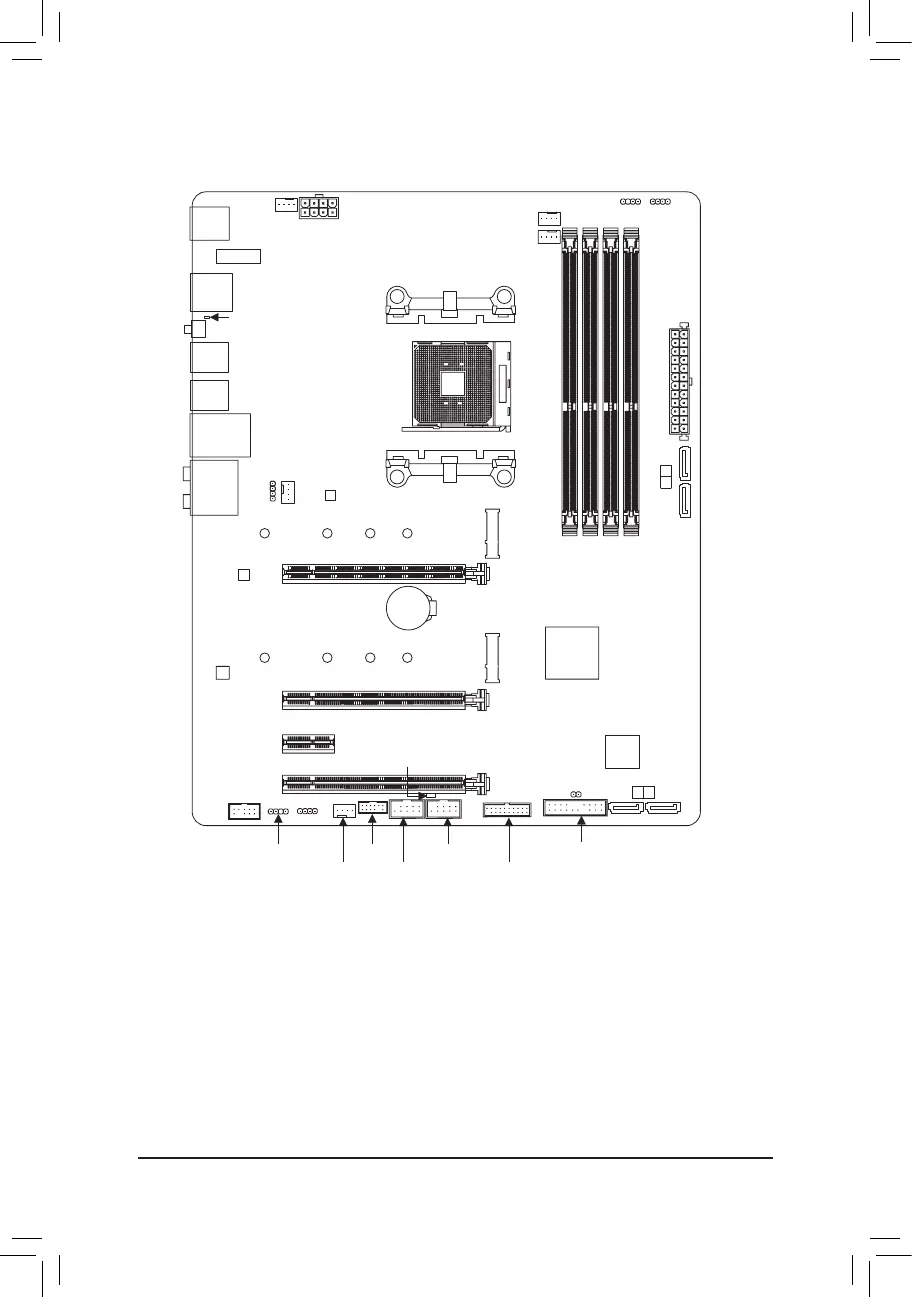

B550 AORUS ELITE (AX) Motherboard Layout
Box Contents
5 B550 AORUS ELITE AX or B550 AORUS ELITE motherboard
5 Motherboard driver disc 5 One G Connector
5 User's Manual 5 One antenna
(Note)
5 Two SATA cables
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Socket AM4
AMD B550
USB20
CPU_FAN
ATX_12V
ATX
F_AUDIO
AUDIO
BAT
F_PANEL
PCIEX1_2
CLR_CMOS
CODEC
M_BIOS
PCIEX16
B550 AORUS ELITE (AX)
iTE
®
Super I/O
F_USB1
LED_C1
TPM
F_U32
M2B_SB
42
6080
110
CPU_OPT
SYS_FAN1
F_USB2SYS_FAN3
D_LED1
D_LED2
LED_C2
SYS_FAN2
DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
SATA3
3 2
PCIEX1_1
PCIEX2
M2A_CPU
42
6080
110
LED_CPU
Realtek
®
2.5GbE LAN
U32_LAN
U32G2
QFLASH_PLUS
QFLED
DP_HDMI
U32
USB 2.0 Hub
1 0
SATA3
M2_WIFI
(Note)
(Note) Only for the B550 AORUS ELITE AX.

Gigabyte B550 AORUS ELITE AX Specifications

General

Chipset	AMD B550
CPU Socket	AM4
Form Factor	ATX
Memory Type	DDR4
Memory Slots	4
Max Memory	128 GB
PCIe x16 Slots	2
PCIe 4.0 x16	1
PCIe 3.0 x16	1
PCIe x1 Slots	3
M.2 Slots	2
Wireless	Yes
Storage	6 x SATA 6Gb/s
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.0
LAN	Realtek 2.5GbE
Audio	Realtek ALC1200
RGB Headers	2
USB Ports	4 x USB 2.0
Ethernet	1 x 2.5GbE
