- 37 - Motherboard Components

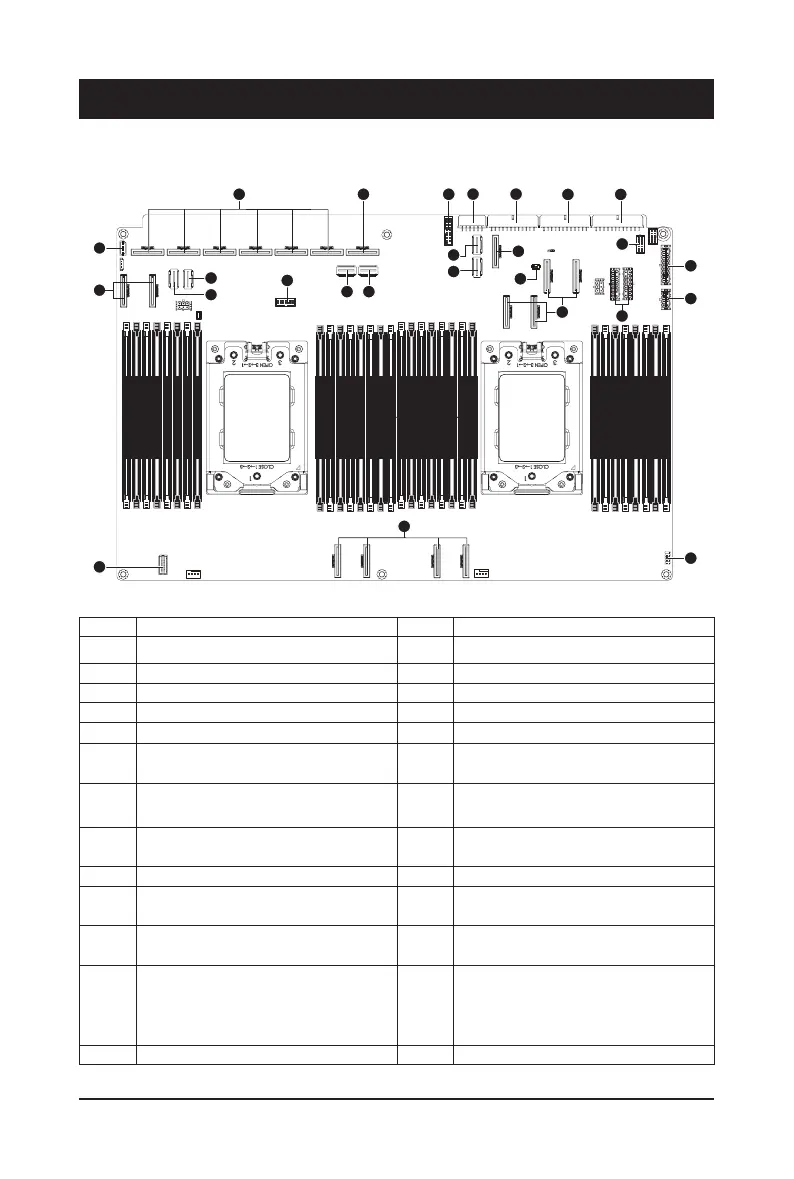

Chapter 4 Motherboard Components
4-1 Motherboard Components
Item Description Item Description
1 Slimline Connectors (PCIe Signal) 2 Slimline Connector (Front Panel Signal)
3 USB 3.0 Header 4 CPU Power Connector
5 CPU 0 Power Connector 6 CPU 1 Power Connector
7 System Power Connector 8 2 x 9 Pin System Fan Power Connector
9 2 x 4 Pin Front Panel Power Connector 10 Front Panel VGA Connector
11 2 x 7 Pin HDD Back Plane Board Power
Connectors
12 Slimline Connectors (PCIe Signal)
13 Battery Cable Connector 14 Slimline Connector (PCIe Signal for Rear
LAN on PCIE Board)
15 Slimline Connector (SATA #4 - #7 for
CPU1)
16 Slimline Connector (SATA #0 - #3 for
CPU1)
17 Slimline Connector (MLAN/NCSI Signal) 18 Slimline Connector (Miscellaneous)
19 TPM Module Connector 20 Slimline Connector (SATA #0 - #3 for
CPU0)
21 Slimline Connector (SATA #4 - #7 for
CPU0)
22 IPMB Connector
23 2 x 15 Pin HDD Back Plane Board
Connector
24 For G482-Z50: Slimline Connectors (XGMI
Signal)
For G482-Z51: Slimline Connectors (PCIe
Signal)
25 Serial Port Cable Connector -- --
23
24
25
10
8
9
13
14
11
12
CPU1
DIMM_P1_M0 DIMM_P1_M1 DIMM_P1_N0 DIMM_P1_N1 DIMM_P1_O0 DIMM_P1_O1 DIMM_P1_P0 DIMM_P1_P1
15
16
1718
19
CPU0
DIMM_P0_D1 DIMM_P0_D0
DIMM_P0_C1 DIMM_P0_C0 DIMM_P0_B1 DIMM_P0_B0 DIMM_P0_A1 DIMM_P0_A0
DIMM_P0_E0 DIMM_P0_E1 DIMM_P0_F0 DIMM_P0_F1 DIMM_P0_G0 DIMM_P0_G1 DIMM_P0_H0 DIMM_P0_H1
DIMM_P1_L1 DIMM_P1_L0
DIMM_P1_K1 DIMM_P1_K0 DIMM_P1_J1 DIMM_P1_J0 DIMM_P1_I1 DIMM_P1_I0
20
21
1
22
1
3
2
4
5
6
7
