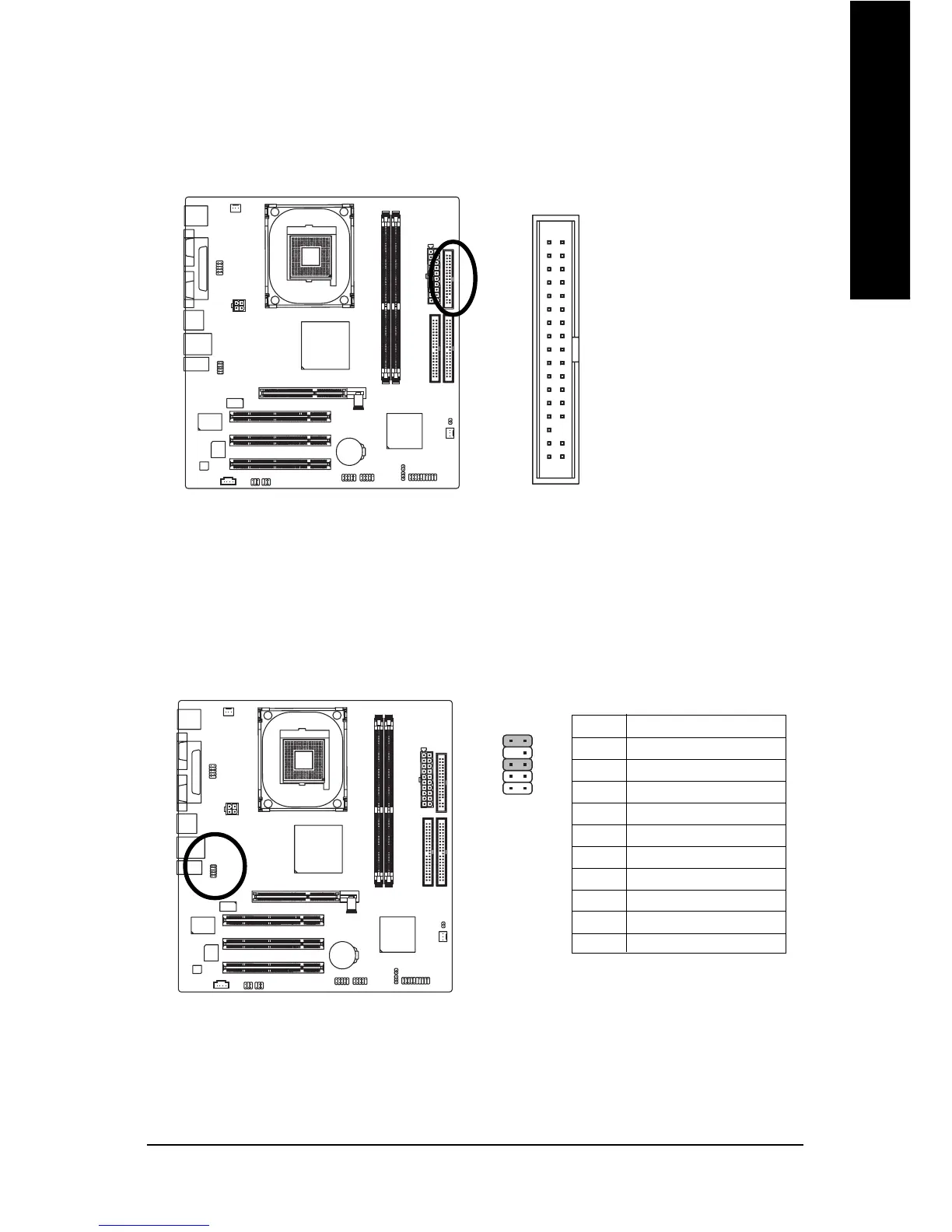

6) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to the
FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB.
Please connect the red power connector wire to the pin1 position.
12
3334
7) F_AUDIO (Front Audio Panel Connector)
Please make sure the pin assigment on the cable is the same as the pin assigment on the MB header.
To find out if the chassis you are buying support front audio panel connector, please contact your
dealer. If you want to use "Front Audio" connector, you must remove the jumpers from pins 5-6,
9-10.
1
10 9
2
Pin No. Definition
1 MIC
2 GND
3 MIC_BIAS
4 Power
5 Front Audio (R)
6 Rear Audio (R)/ Return R
7NC
8 No Pin
9 Front Audio (L)
10 Rear Audio (L)/ Return L
