SPDIF Output Device (Optional Device)

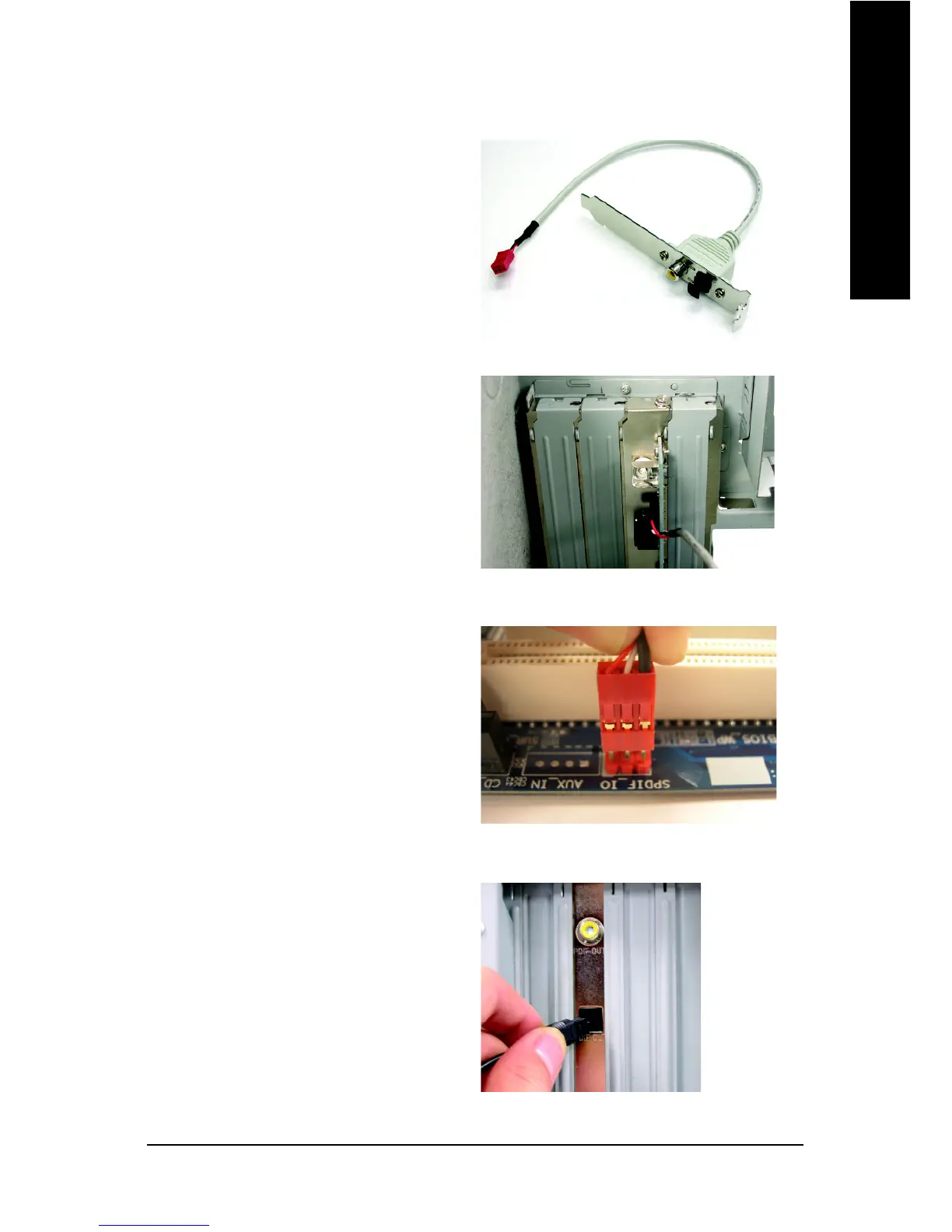

STEP 3:
Connect SPDIF to the SPDIF decoder.
Secure the metal bracket of the SPDIF Output
device to the chassis back panel with a screw.
Connect the SPDIF device cable to the SPDIF_IO
connector on the motherboard.
A "SPDIF output" device is an optional device. The
SPDIF_IO cable with rear bracket could link to the
"SPDIF_IO" connector (As picture.) For the further
linkage to decoder, rear bracket provides coaxial
cable and Fiber connecting port.
