Gigabyte GA-965P-S3 User Manual

- 9 -

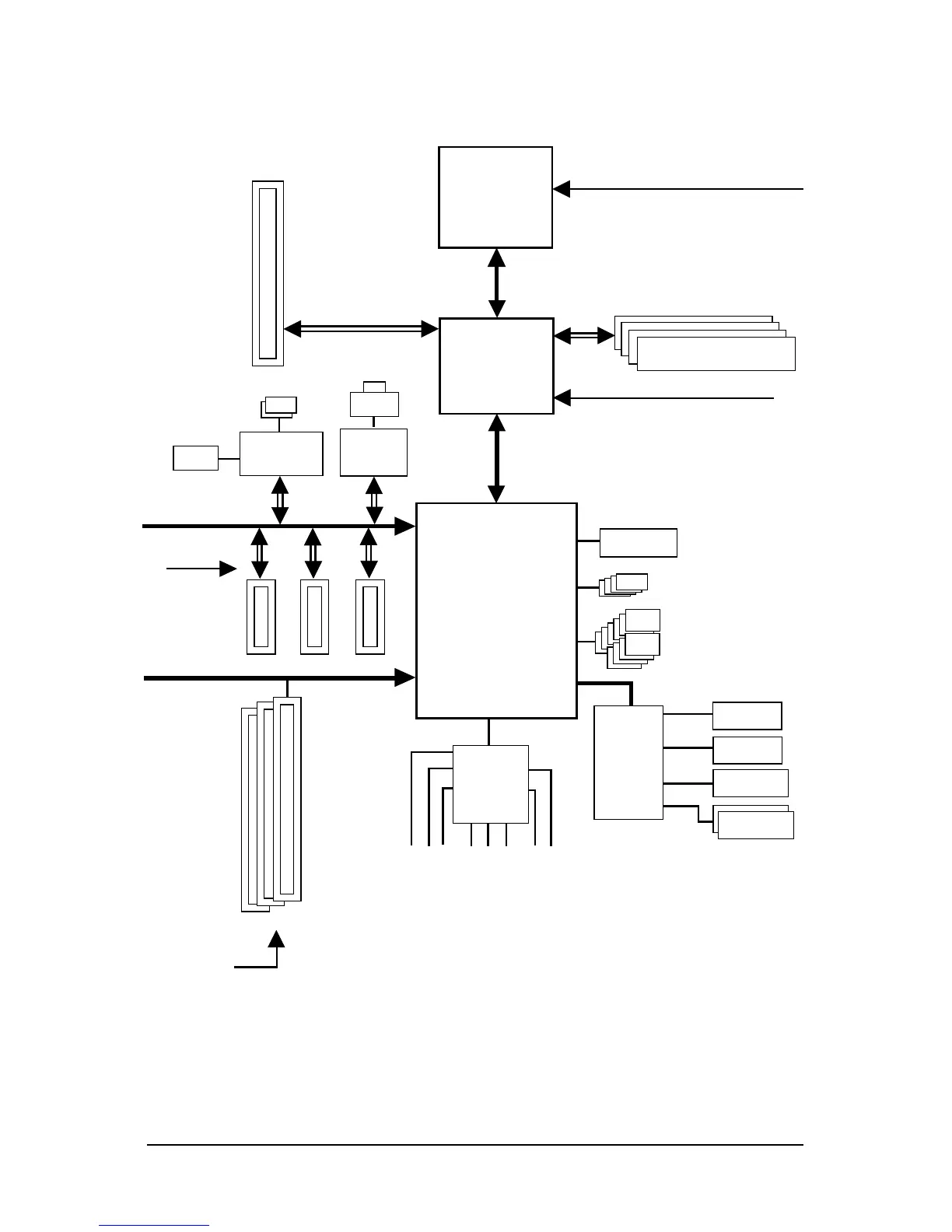

Block Diagram
(Note 1) Applies only when the GA-965P-DS3/S3 motherboard (rev. 3.3) is installed with a 1333 MHz
FSB processor. The system will automatically adjust BIOS to support 1333 MHz FSB by
overclocking when a 1333 MHz FSB processor is installed. In such a configuration, the actual
operating memory frequency will be 667 MHz or 833 MHz, depending on the memory being
installed.
(Note 2) To use a DDRII 800/667 memory module on the motherboard, you must install a 1333/1066/
800 MHz FSB processor.
CPU CLK+/-(333
(Note 1)
/266/200/133 MHz)
PCI Express x16
Host
Interface
MCH CLK (266/200/133 MHz)
DDRII 800/667/533 MHz DIMM
(Note 2)
IT8718
BIOS
3 PCI
PCI Bus
3 PCI Express x1
PCI Express Bus
Dual Channel Memory
Floppy
PS/2 KB/Mouse
PCIe CLK
(100 MHz)
4 SATA 3Gb/s
LAN
RJ45
PCICLK (33 MHz)
PCIe CLK
(100 MHz)
Intel
®
P965
Intel
®
ICH8
LGA775
Processor
x1
x1
x1
ATA 33/66/100/133
IDE Channel
COM Port
LPT Port
Marvell
88E8056
2 SATA 3Gb/s
x1
x1
10 USB Ports
Center/Subwoofer
Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
GIGABYTE
SATA2

Gigabyte GA-965P-S3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	6
Number of Parallel ATA connectors	1
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Networking features	Gigabit LAN
RAID levels	0, 1

Weight and Dimensions

Depth	210 mm
Width	305 mm
