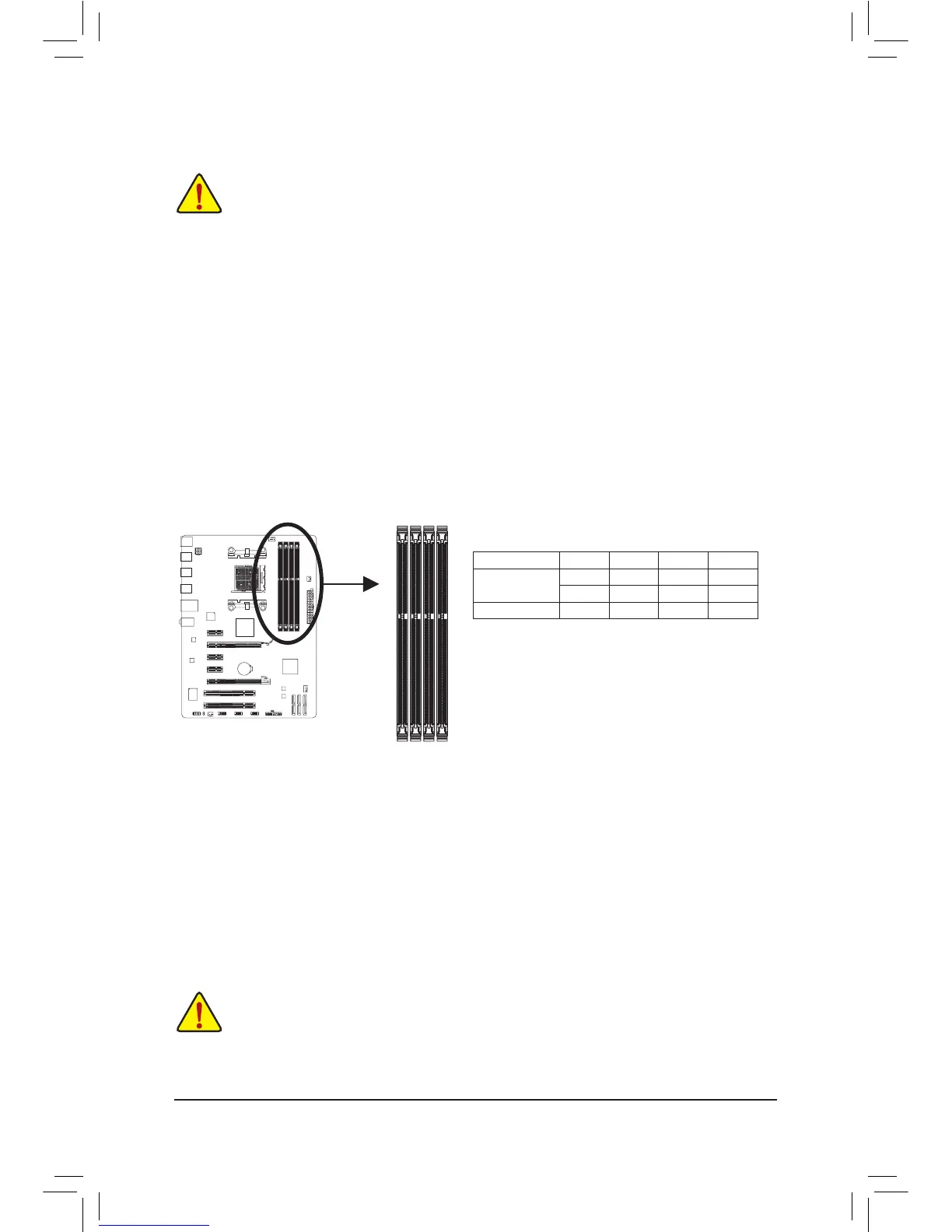

1-4 Installing the Memory
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
Dual Channel mode cannot be enabled if only one DDR3 memory module is installed. 1.
When enabling Dual Channel mode with two or four memory modules, it is recommended that memory 2.
of the same capacity, brand, speed, and chips be used and installed in the same colored DDR3 sockets
for optimum performance. For optimum performance, when enabling Dual Channel mode with two
memory modules, we recommend that you install them in the DDR3_1 and DDR3_2 sockets.
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the same •
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing the •
memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direction. •
If you are unable to insert the memory, switch the direction.
Dual Channel Memory Conguration
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling
Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_2, DDR3_4 
Channel 1: DDR3_1, DDR3_3 
Dual Channel Memory Congurations Table 
DDR3_4 DDR3_2 DDR3_3 DDR3_1
Two Modules - - DS/SS - - DS/SS
DS/SS - - DS/SS - -
Four Modules DS/SS DS/SS DS/SS DS/SS
DDR3_4 DDR3_2 DDR3_3 DDR3_1
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
Make sure the motherboard supports the expansion card. Carefully read the manual that came •
with your expansion card.
Always turn off the computer and unplug the power cord from the power outlet before installing an •
expansion card to prevent hardware damage.

Gigabyte GA-970A-DS3 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	-
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA III connectors	6
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Certification	RoHS
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Compatible operating systems	Microsoft Windows 7/Vista/XP
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Bundled software	Norton Internet Security (OEM version)
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD

Weight and Dimensions

Depth	2250 mm
Width	3050 mm
