Gigabyte GA-970A-UD3P User Manual

- 8 -

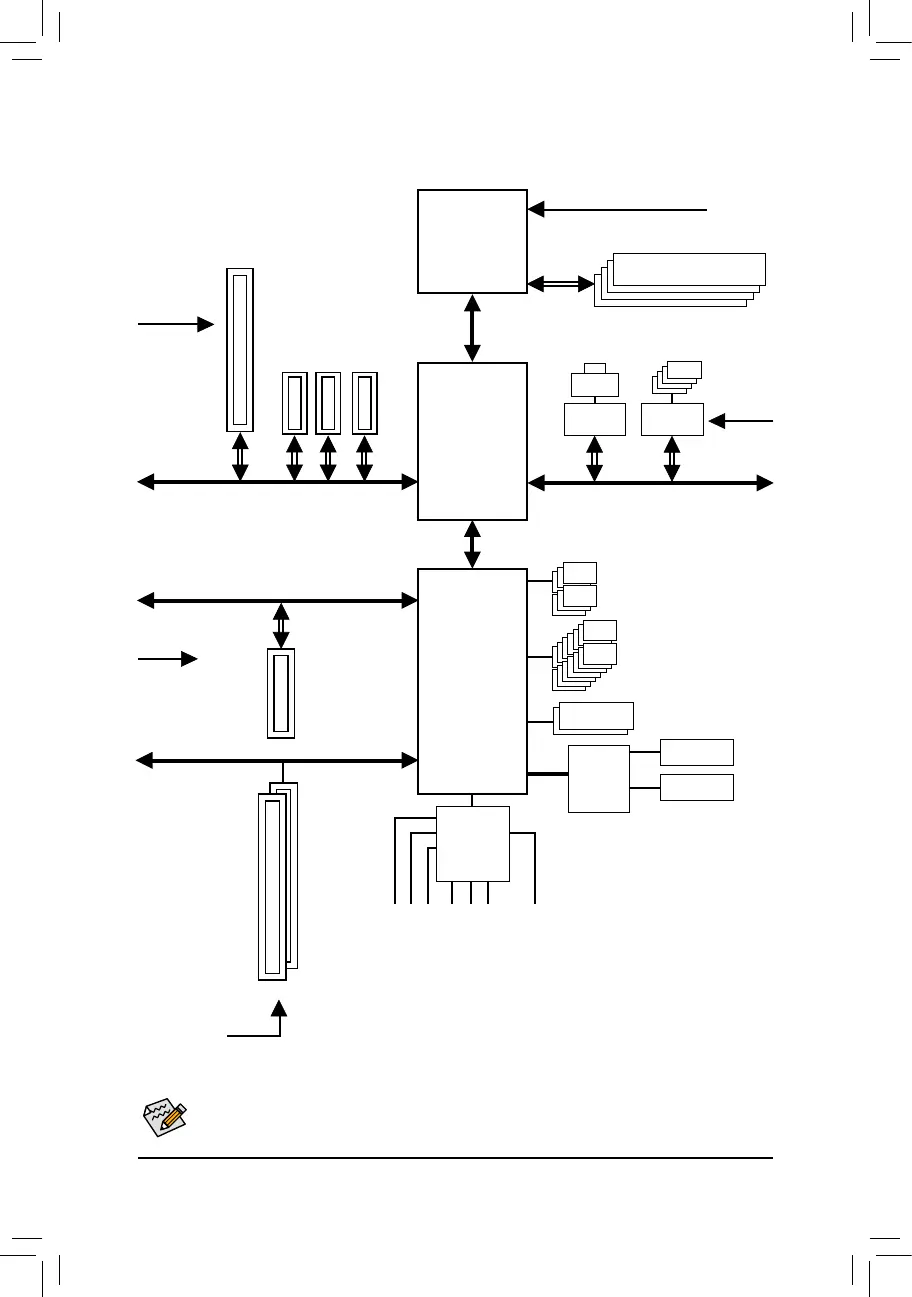

GA-970A-UD3P Motherboard Block Diagram

AMD 970

Dual Channel Memory
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Rear Speaker Out
CODEC
PCI Bus
AM3+/AM3 CPU
2 PCI
PCI CLK



Dual BIOS
14 USB 2.0/1.1
6 SATA 6Gb/s
AMD SB950
PCI Express Bus
PCI Express Bus
PCI Express Bus
PCIe CLK

PCIe CLK

1 PCI Express x16
x16
x4
x1
x1
x1
3 PCI Express x1
1 PCI Express x4
x1
PCIe CLK

4 USB 3.0/2.0
x1

®

Hyper Transport
Bus
PS/2 KB/Mouse
iTE
®
Super I/O
LPC
Bus
COM
LAN
RJ45
Realtek
®
GbE LAN

Gigabyte GA-970A-UD3P Specifications

General

Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000 MHz
System bus rate	4.8 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom FX, AMD Phenom II Dual-Core Mobile, AMD Phenom II Quad-Core Mobile, AMD Phenom II Triple-Core Mobile, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6, AMD Phenom II X8
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	-
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	8
Audio chip	VIA VT2021
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD 970
PC health monitoring	CPU, FAN, Power supply, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 5, 10, JBOD
Supported storage drive interfaces	SATA III
Parallel processing technology support	2-Way CrossFireX
PCI Express slots quantity	5
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
