Gigabyte GA-F2A55M-S1 User Manual

- 16 -

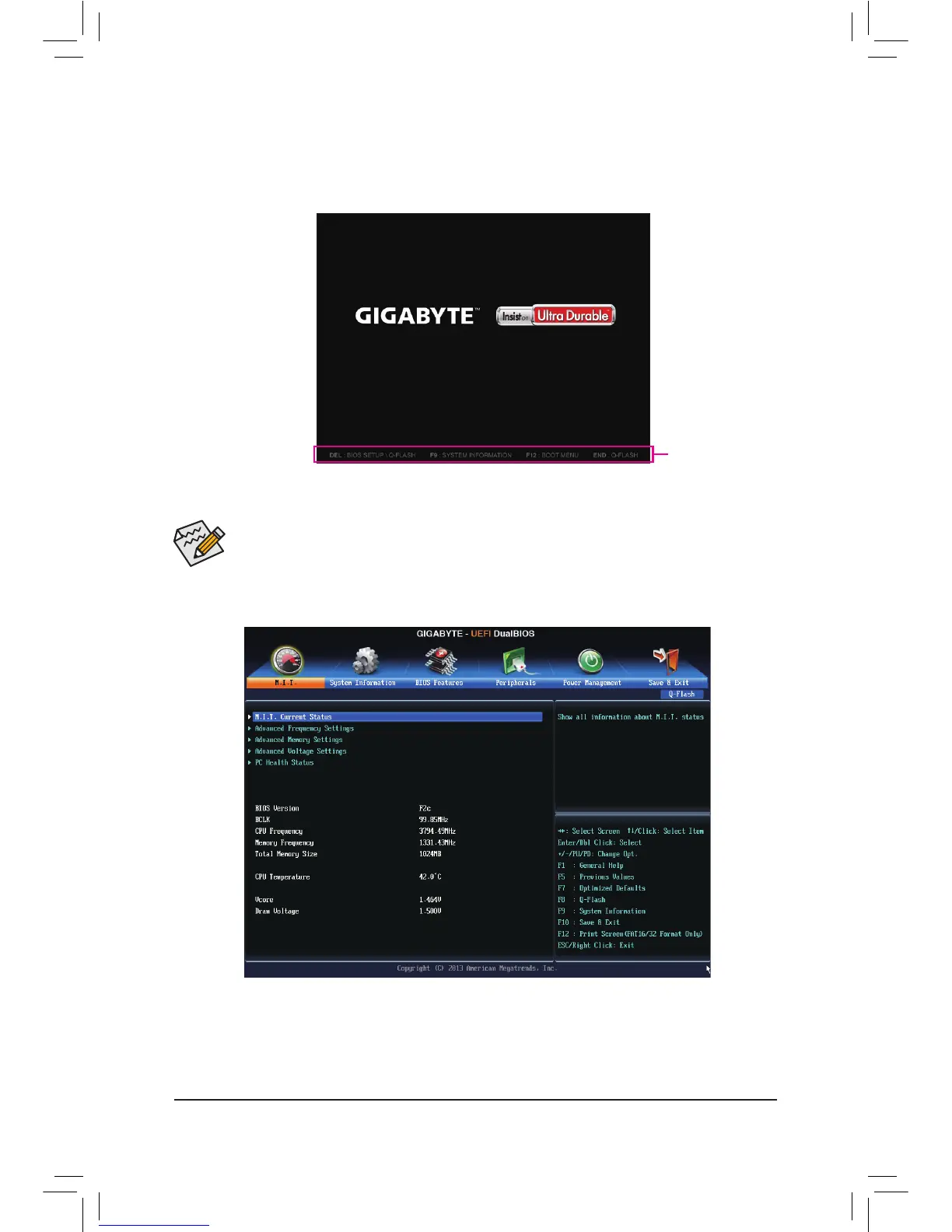

2-1 Startup Screen
The following startup Logo screen will appear when the computer boots.
(Sample BIOS Version: F2c)
Function Keys
• When the system is not stable as usual, select the Load Optimized Defaults item to set your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.
On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter>
to accept or enter a sub-menu. Or you can use your mouse to select the item you want.
2-2 M.I.T.
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
total memory size, CPU temperature, Vcore, and memory voltage.

Gigabyte GA-F2A55M-S1 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2400 MHz
Processor socket	Socket FM2
Processor manufacturer	AMD
Compatible processor series	AMD A
S/PDIF out connector	Yes
Number of SATA connectors	4
Number of EATX power connectors	1
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II
BIOS type	EFI AMI
ACPI version	1.0b
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	174 mm
Width	225 mm
