Gigabyte GA-F2A68HM-DS2H User Manual

Motherboard
GA-F2A68HM-DS2H
Nov. 5, 2014
Nov. 5, 2014
Motherboard
GA-F2A68HM-DS2H
Copyright
© 2014 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by
any means without GIGABYTE's prior written permission.
 In order to assist in the use of this product, carefully read the User's Manual.
 For product-related information, check on our website at: http://www.gigabyte.com

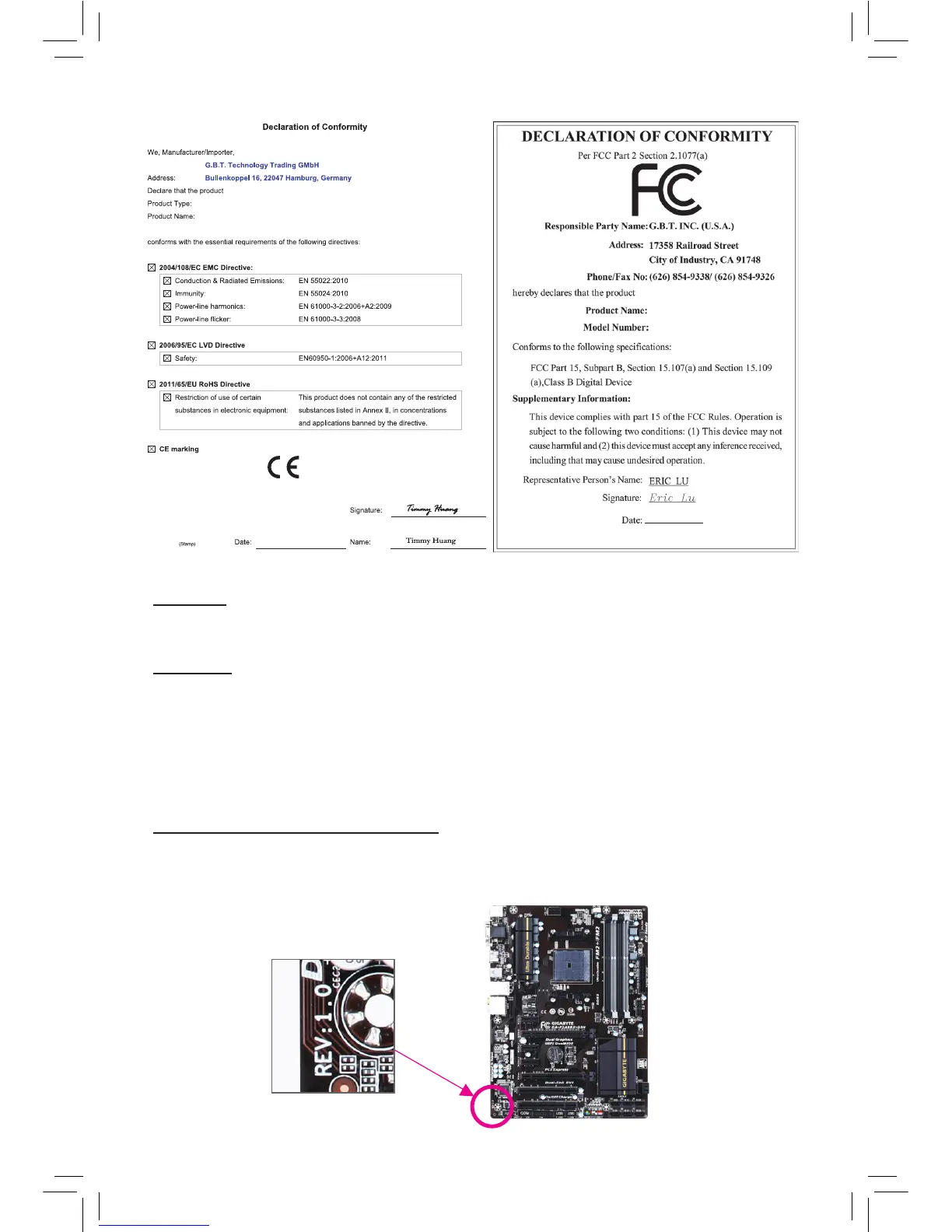

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the
revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS,
drivers, or when looking for technical information.
Example:

Gigabyte GA-F2A68HM-DS2H Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Maximum RDIMM memory	64 GB
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1866, 2133, 2400 MHz
Supported memory module capacities	2GB, 4GB, 8GB, 16GB
Processor socket	Socket FM2+
Processor manufacturer	AMD
Compatible processor series	AMD A
Maximum number of SMP processors	1
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA III
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A68H
PC health monitoring	CPU, FAN
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP Home, Windows XP Professional
Number of SATA connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	2048 MB
Parallel processing technology support	2-Way SLI
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	182 mm
Width	226 mm
