Gigabyte GA-H170N-WIFI User Manual

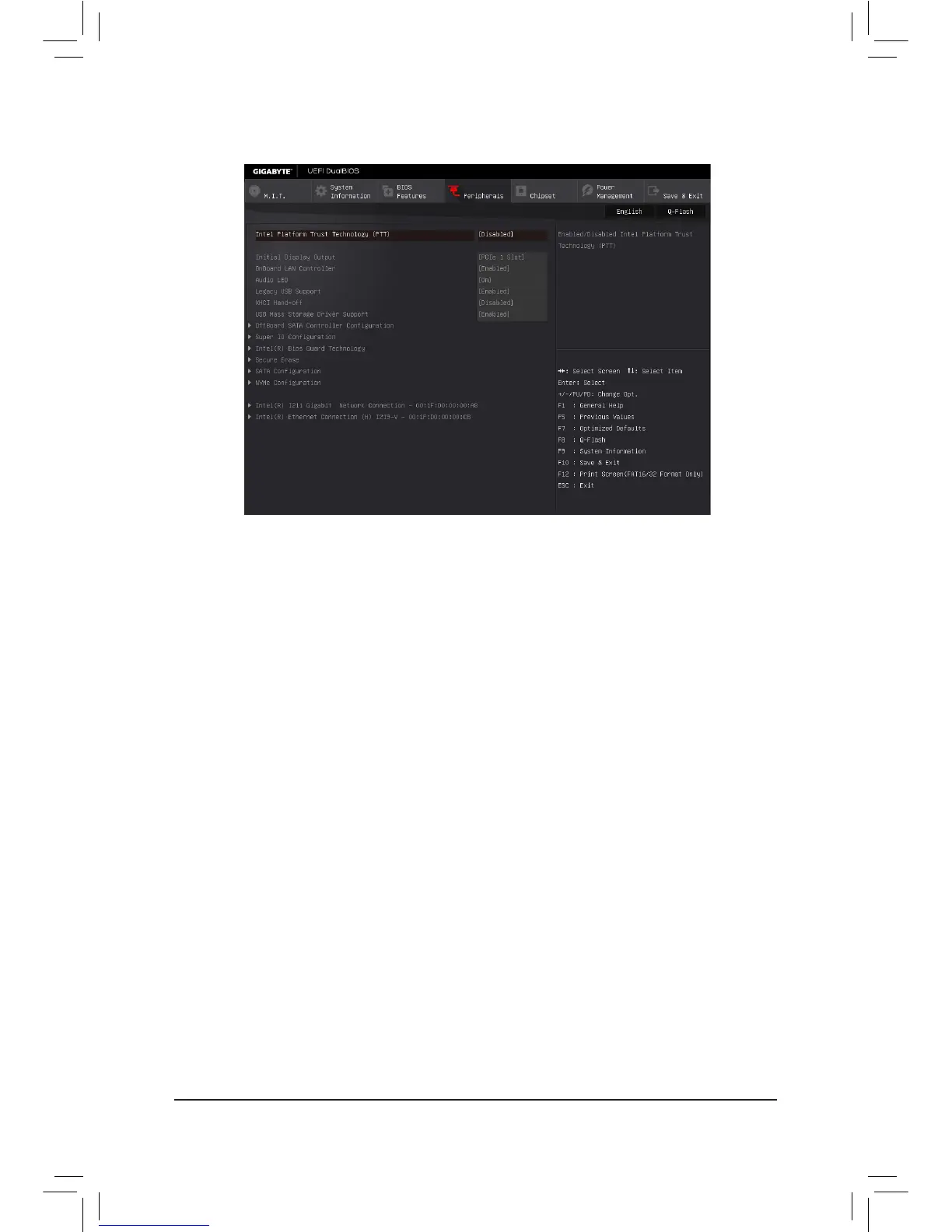

2-5 Peripherals
& Intel Platform Trust Technology (PTT)
Enables or disables Intel
®
PTT Technology. (Default: Disabled)
& Initial Display Output
Species the rst initiation of the monitor display from the installed PCI Express graphics card or the onboard
graphics.
IGFX Sets the onboard graphics as the rst display.
PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the rst display. (Default)
& OnBoard LAN Controller (LAN2)
Enables or disables the onboard LAN function.
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to
Disabled.
& Audio LED
Enables or disables the onboard audio LED function. (Default: On)
& Legacy USB Support
Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled)
& XHCI Hand-off
Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off
support. (Default: Disabled)
& USB Mass Storage Driver Support
Enables or disables support for USB storage devices. (Default: Enabled)
& USB Storage Devices
Displays a list of connected USB mass storage devices. This item appears only when a USB storage
device is installed.
` OffBoardSATAControllerConguration
Displays information on your M.2 PCIe SSD if installed.
- 30 -

Gigabyte GA-H170N-WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H170
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	512 MB
Number of displays supported	3
Parallel processing technology support	-
BIOS type	UEFI AMI
BIOS memory size	16 Mbit
Cables included	SATA
Bundled software	Norton Internet Security Intel Smart Response Technology Intel Wireless Display cFosSpeed

Weight and Dimensions

Width	170 mm
