Gigabyte GA-H170N-WIFI User Manual

(Note) This connector/chip is on the back of the motherboard.
- 5 -

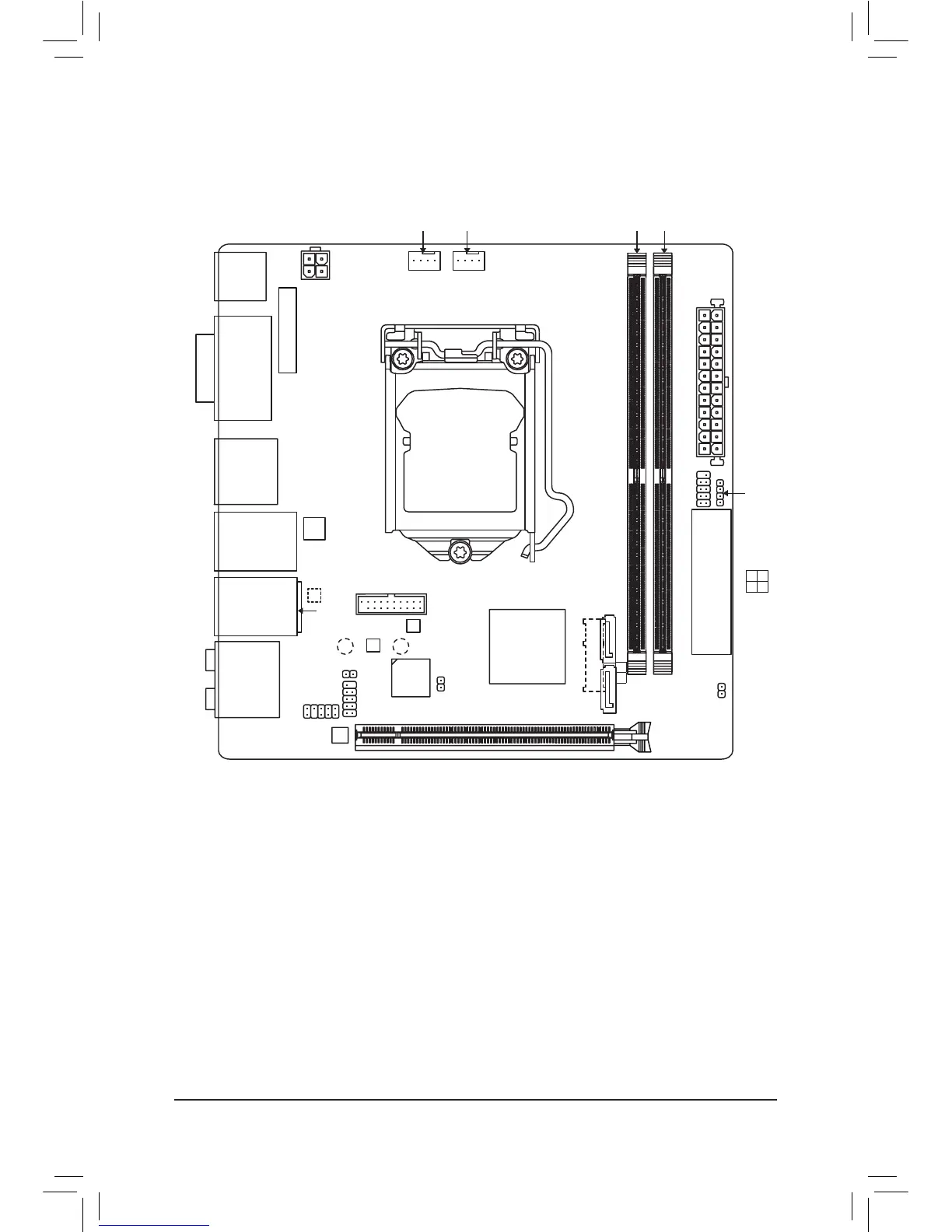

GA-Z170N-WIFI/GA-H170N-WIFI Motherboard Layout
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
Box Contents
5 GA-Z170N-WIFI or GA-H170N-WIFI motherboard
5 Motherboard driver disk 5 Two SATA cables
5 User's Manual
5 Quick Installation Guide
5 One antenna
5 I/O Shield
5 Wireless module driver disk
M Only for GA-Z170N-WIFI.
N Only for GA-H170N-WIFI.
KB_MS_USB3
CLR_CMOS
DOUBLE_HDMI
SYS_FAN
LGA1151
ATX
GA-Z170N-WIFI GA-H170N-WIFI
F_AUDIO
AUDIO
F_USB
DDR4_1 DDR4_2
BAT
ATX_12V
Intel
®
Z170M
Intel
®
H170N
DVI WIFI-BRACKET
USB30_LAN1
LAN2
CODEC
SPEAKER
iTE
®
Super I/O
F_PANEL
WIFI Module
SPDIF_O
Intel
®
GbE
LAN
Intel
®
GbE
LAN
(Note)
4
5
CPU_FAN
3 2 1 0
SATA3
M2_WIFI
SATA EXPRESS
SATA3
CI
M_BIOS
B_BIOS
F_USB30
PCIEX16
TYPE_C
M.2
(Note)

Gigabyte GA-H170N-WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H170
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 10 Education x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	512 MB
Number of displays supported	3
Parallel processing technology support	-
BIOS type	UEFI AMI
BIOS memory size	16 Mbit
Cables included	SATA
Bundled software	Norton Internet Security Intel Smart Response Technology Intel Wireless Display cFosSpeed

Weight and Dimensions

Width	170 mm
