Gigabyte GA-M52L-S3P User Manual

- 8 -

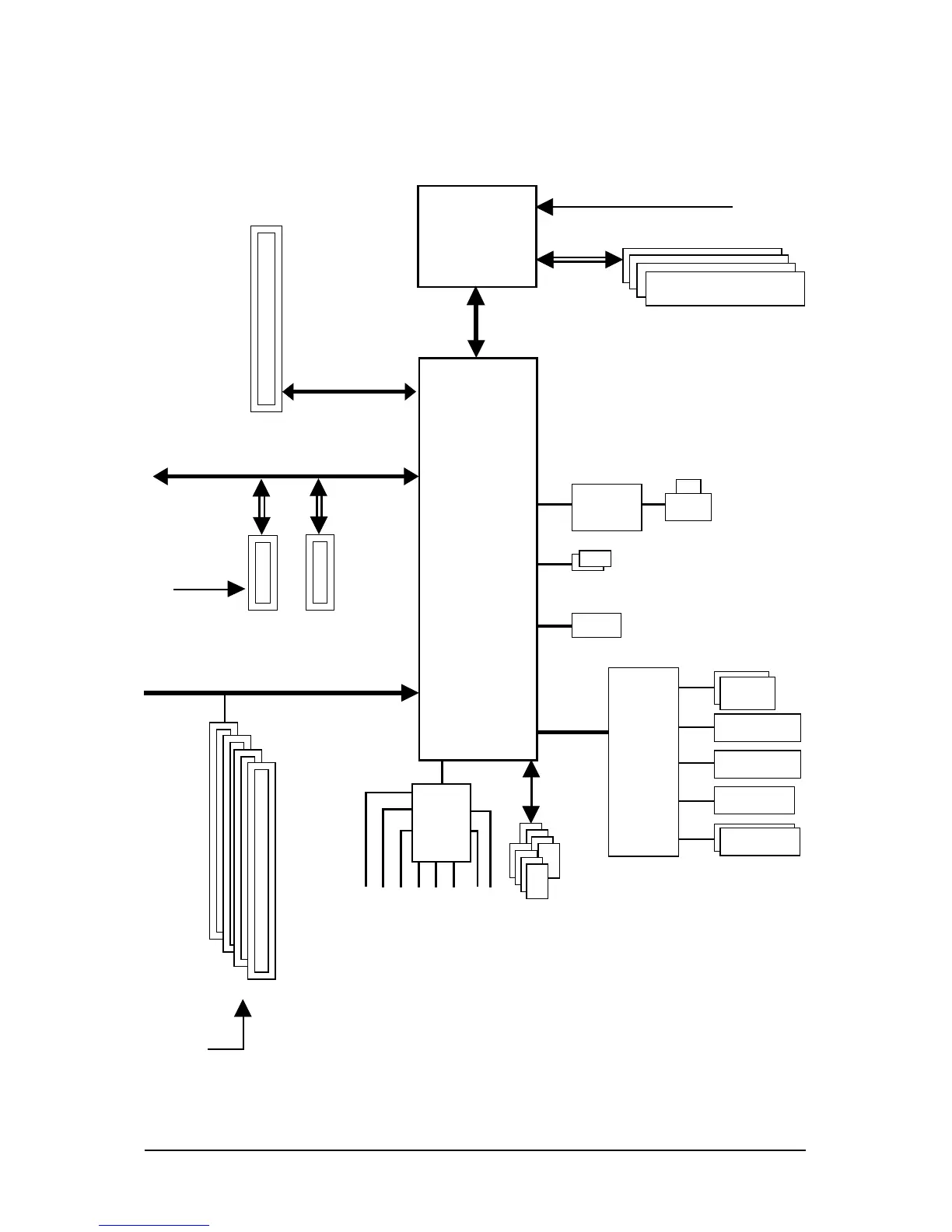

Block Diagram
Center/Subwoofer Spear Out
DDR2 1066/800/667 MHz DIMM
PCIe CLK
(100 MHz) AMD Socket
AM2+/AM2
CPU
CPU CLK+/-(200 MHz)
Hyper Transport
2 SATA 3Gb/s
ATA-133/100/66/33
IDE Channel
PCI Bus
8 USB
Ports
Dual Channel Memory
LPC BUS
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
2 PCI Express x1
x1
PCIe CLK
(100 MHz)
PS/2 KB/Mouse
LPT Port
Floppy
x1
PCI CLK
(33 MHz)
4 PCI
LAN
RJ45
RTL
8201CL
NVIDIA
®
nForce 520LE
IT8718
1 PCI Express x16
Dual BIOS
COM Port
PCI Express x16
PCI Express Bus

Gigabyte GA-M52L-S3P Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	2
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows Vista/XP
BIOS type	AWARD
Trial software	Norton Internet Security
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit

Weight and Dimensions

Depth	215 mm
Width	305 mm
