Appendix- 73 -
Center/Subwoofer
Speaker Out
Rear Speaker Out
Side Speaker Out
A. Installing the 5.1/7.1 Surround Cable:
5-2 Configuring Audio Input and Output
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio
The motherboard provides three audio jacks on the back panel which can support 2/4/5.1-channel
audio. To enable 7.1-channel audio, you need to install an additional 5.1/7.1 surround cable (optional)
and enable the 7.1-channel audio function through the audio driver.

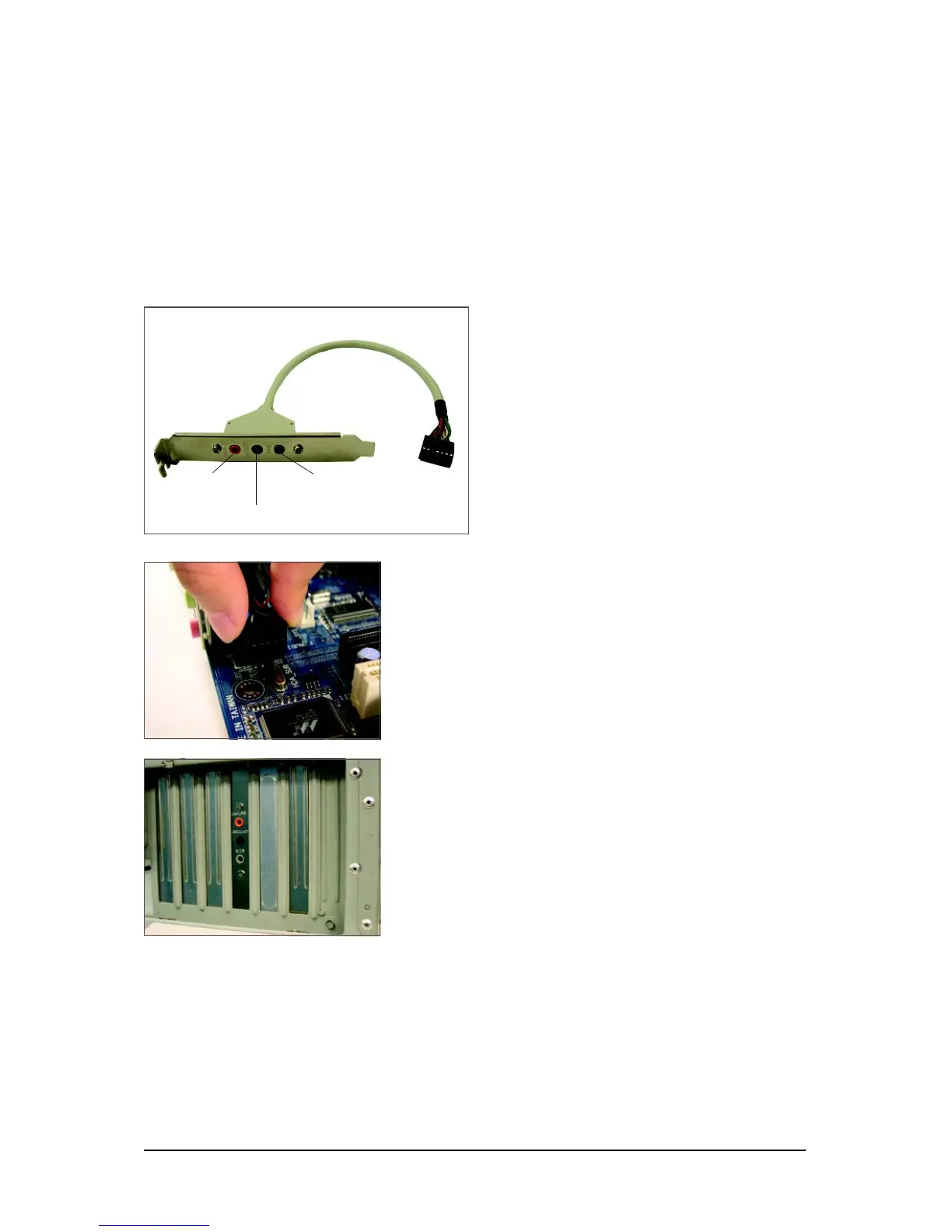

5.1/7.1 Surround Cable
The 5.1/7.1 surround cable (optional) provides
audio jacks for center/subwoofer, rear, and side
speakers. Use of this cable is required if you wish
to set up a multi-channel audio system and keep
Line in and Mic in functionalities at the same time.
Step 1:
Connect the connector at the end of the 5.1/7.1 surround cable
to the HDA_SUR header on your motherboard.
Step 2:
Secure the bracket to the chassis back panel with a screw.
(Note) 2/4/5.1/7.1 Channel Audio Configurations:
Refer to the following for multi-channel speaker configurations.
• 2 channel audio: Headphone or Line out.
• 4 channel audio: Front speaker out and Rear speaker out.
• 5.1 channel audio: Front speaker out, Rear speaker out, and Center/Subwoofer speaker out.
• 7.1 channel audio: Front speaker out, Rear speaker out, Center/Subwoofer speaker out, and Side
speaker out.
