Gigabyte GA-M61PME-S2P User Manual

- 8 -

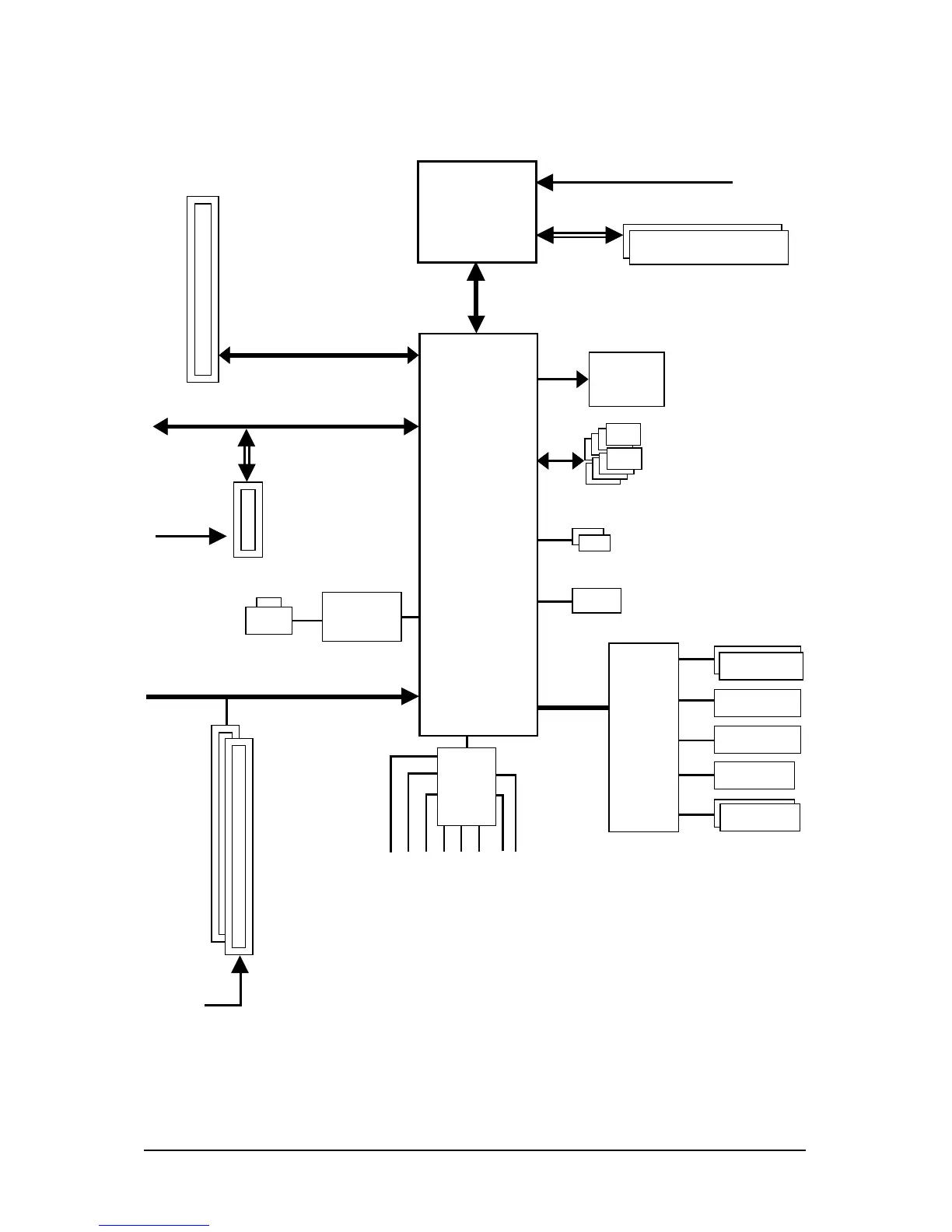

Block Diagram
DDR2 1066/800/667 MHz DIMM
PCIe CLK
(100 MHz)
AMD Socket
AM2+/AM2
CPU
CPU CLK+/-(200 MHz)
Hyper Transport Bus
2 SATA 3Gb/s
ATA-133/100/66/33
IDE Channel
PCI Bus
8 USB Ports
Dual Channel Memory
LPC BUS
PCI CLK
(33 MHz)
2 PCI
D-Sub
LAN
RJ45
Realtek
8201CL
PS/2 KB/Mouse
COM Port
LPT Port
Floppy
1 PCI Express x16
PCI Express x16
1 PCI Express x1
PCI Express Bus
x1
PCIe CLK
(100 MHz)
IT8718
Dual BIOS
Line-Out
MIC
CODEC
Line-In
SPDIF In
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
SPDIF Out
NVIDIA
®
GeForce 6100/
nForce 430

Gigabyte GA-M61PME-S2P Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of Parallel ATA connectors	1
Special features	@BIOS Download Center Q-Flash Virtual Dual BIOS EasyTune(Note 4) Xpress Install Xpress Recovery2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP
Bundled software	Norton Internet Security (OEM version)
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit
Graphics card	GeForce 6100

Weight and Dimensions

Depth	225 mm
Width	244 mm
