(Note) The actual locations of the SPDIF In and SPDIF Out connectors may differ by model.

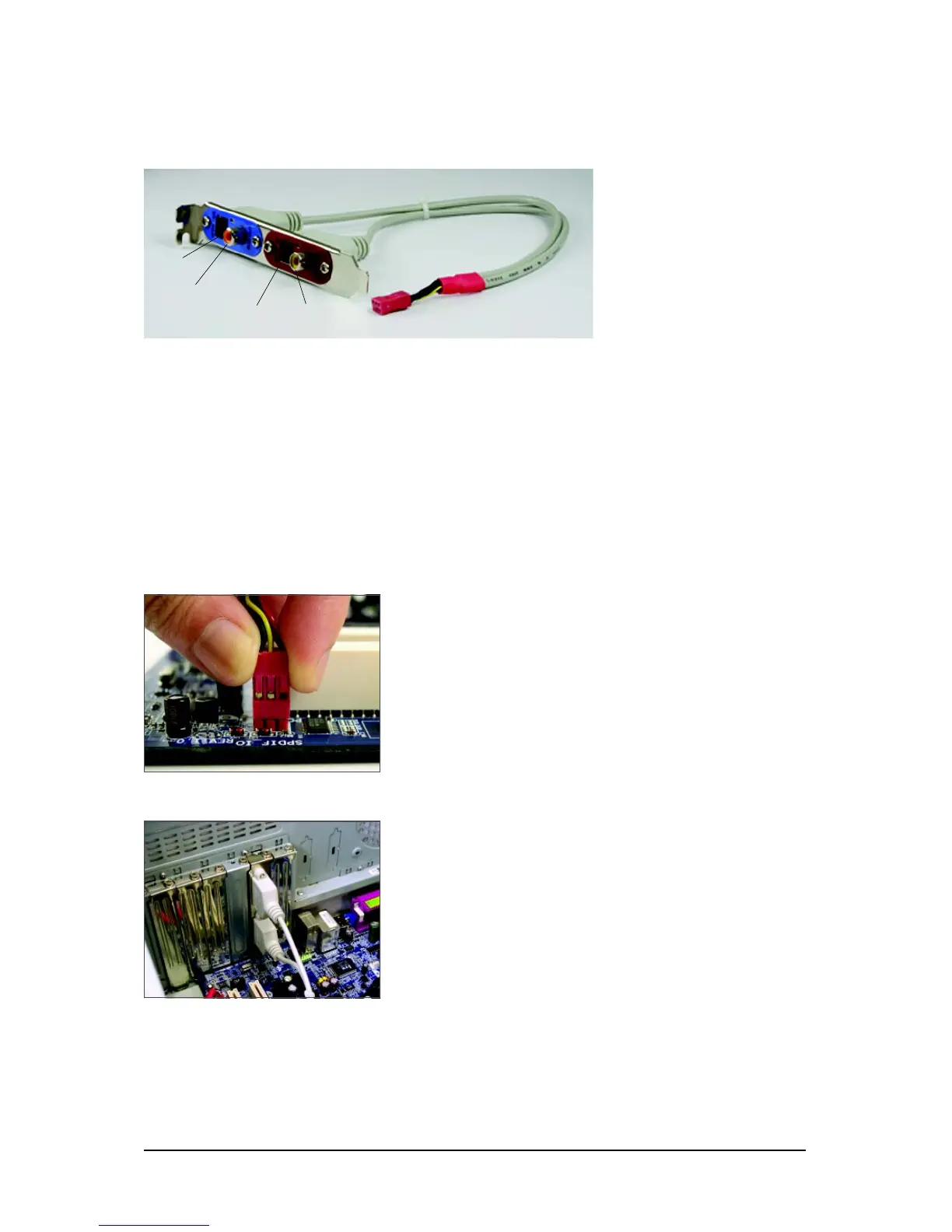

5-2-2 Configuring S/PDIF In/Out
The S/PDIF in and out cable (optional) provides S/PDIF in and S/PDIF out functionalities.
Step 1:
First, attach the connector at the end of the cable to the SPDIF_IO
header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back panel with a
screw.
S/PDIF in:
The S/PDIF in jacks allow you to input digital audio signals to the computer for audio processing.
S/PDIF out:
The S/PDIF out jacks can transmit audio signals to an external decoder for decoding to get the best
audio quality. Install the S/PDIF in and out cable if you want to output S/PDIF digital audio signals to an
external decoder (or you may use the optical S/PDIF out connector on the motherboard back panel).
A. Installing the S/PDIF In and Out Cable:
Coaxial
S/PDIFOut
Coaxial
S/PDIFIn
Optical
S/PDIF In
Optical
S/PDIF Out

Gigabyte GA-M61PME-S2P Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	4
Power fan connector	Yes
Number of Parallel ATA connectors	1
Special features	@BIOS Download Center Q-Flash Virtual Dual BIOS EasyTune(Note 4) Xpress Install Xpress Recovery2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC883
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP
Bundled software	Norton Internet Security (OEM version)
LAN controller	Realtek RTL8201CL
Networking features	10/100 Mbit
Graphics card	GeForce 6100

Weight and Dimensions

Depth	225 mm
Width	244 mm
