GA-N650SLI-DS4L Motherboard - 26 -
6) NB_FAN (North Bridge Fan Header)
Connect the North Bridge fan cable to this header. The fan header has a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation. Most fans are designed
with color-coded power connector wires. A red power connector wire indicates a positive connec-
tion and requires a +12V voltage. The black connector wire is the ground wire.
• Be sure to connect fan cables to the fan headers to prevent your CPU, North Bridge and
system from overheating. Overheating may result in damage to the CPU/North Bridge or
the system may hang.
• These fan headers are not configuration jumper blocks. Do not place a jumper cap on the
headers.
Pin No. Definition
1 GND
2 +12V
3NC

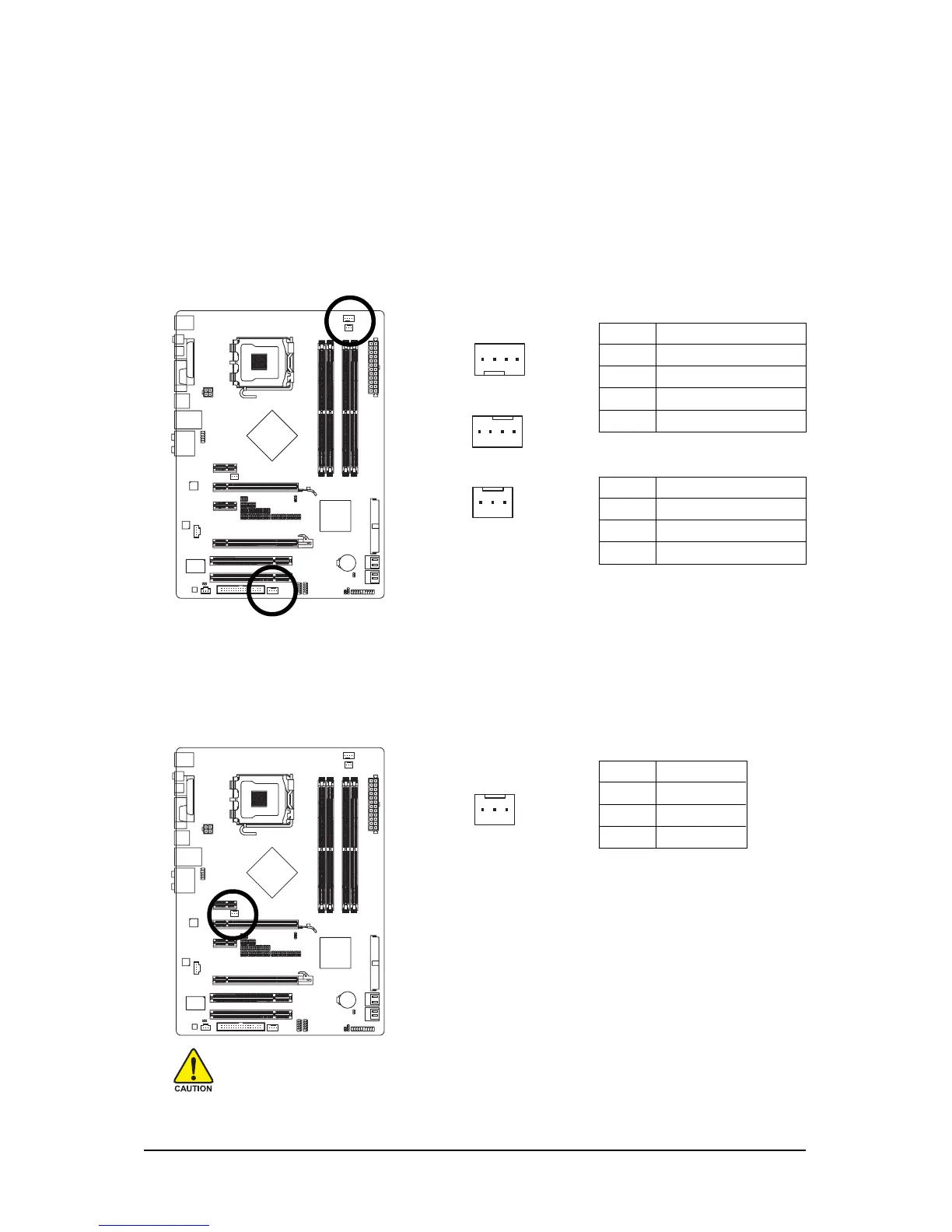

3/4/5) CPU_FAN/SYS_FAN/PWR_FAN (Fan Headers)
The motherboard has a 4-pin CPU fan header (CPU_FAN), a 4-pin system fan header (SYS_FAN),
and a 3-pin power fan header (PWR_FAN). Each fan header supplies a +12V power voltage and
possesses a foolproof insertion design. When connecting a fan cable, be sure to connect it in the
correct orientation. Most fans are designed with color-coded power connector wires. A red power
connector wire indicates a positive connection and requires a +12V voltage. The black connector
wire is the ground wire. The motherboard supports CPU fan speed control, which requires the use
of a CPU fan with fan speed control design. For optimum heat dissipation, it is recommended that
a system fan be installed inside the chassis.
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN/SYS_FAN:
Pin No. Definition
1 GND
2 +12V
3 Sense
PWR_FAN:
SYS_FAN
1
1
PWR_FAN
1
1
CPU_FAN
To Next Page
