Gigabyte GA-X48-DS5 User Manual

Hardware Installation- 17 -

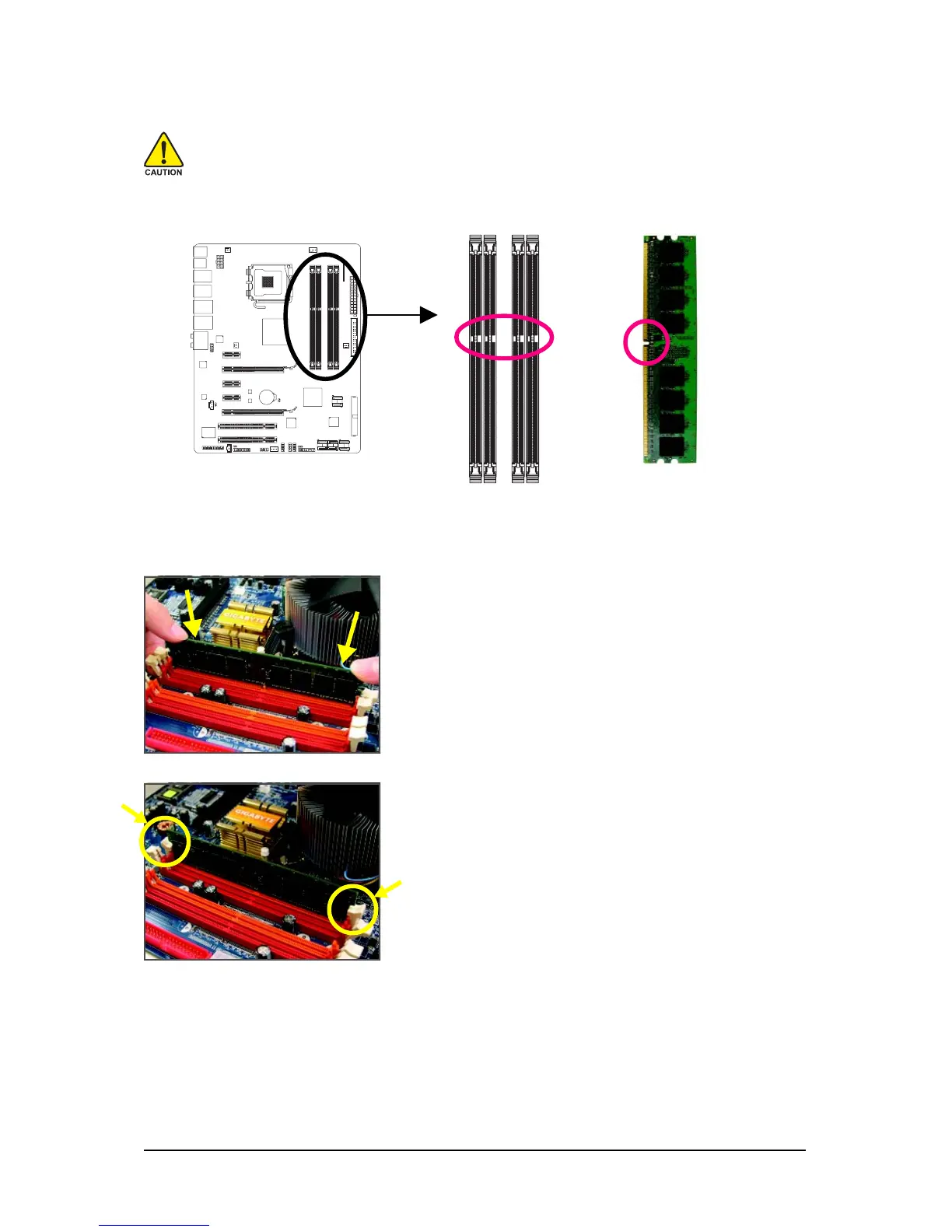

1-4-2 Installing a Memory
Notch
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR2 DIMMs are not compatible to DDR DIMMs. Be sure to install DDR2 DIMMs on
this motherboard.
DDR2 DIMM
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.
A DDR2 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.

Gigabyte GA-X48-DS5 Specifications

General

CPU Socket	LGA 775
Chipset	Intel X48
Form Factor	ATX
Memory Type	DDR2
Memory Slots	4
Max Memory	8 GB
Memory Standard	DDR2 1200/1066/800/667 MHz
Maximum Memory Supported	8 GB
PCIe x16 Slots	2
PCI Slots	2
SATA Ports	6
IDE Ports	1
Audio Chipset	Realtek ALC889A
PCIe x1 Slots	2
RAID Support	RAID 0, 1, 5, 10
Ethernet	Realtek 8111C Gigabit Ethernet
