A RAID 0 or RAID 1 configuration requires two hard
drives.

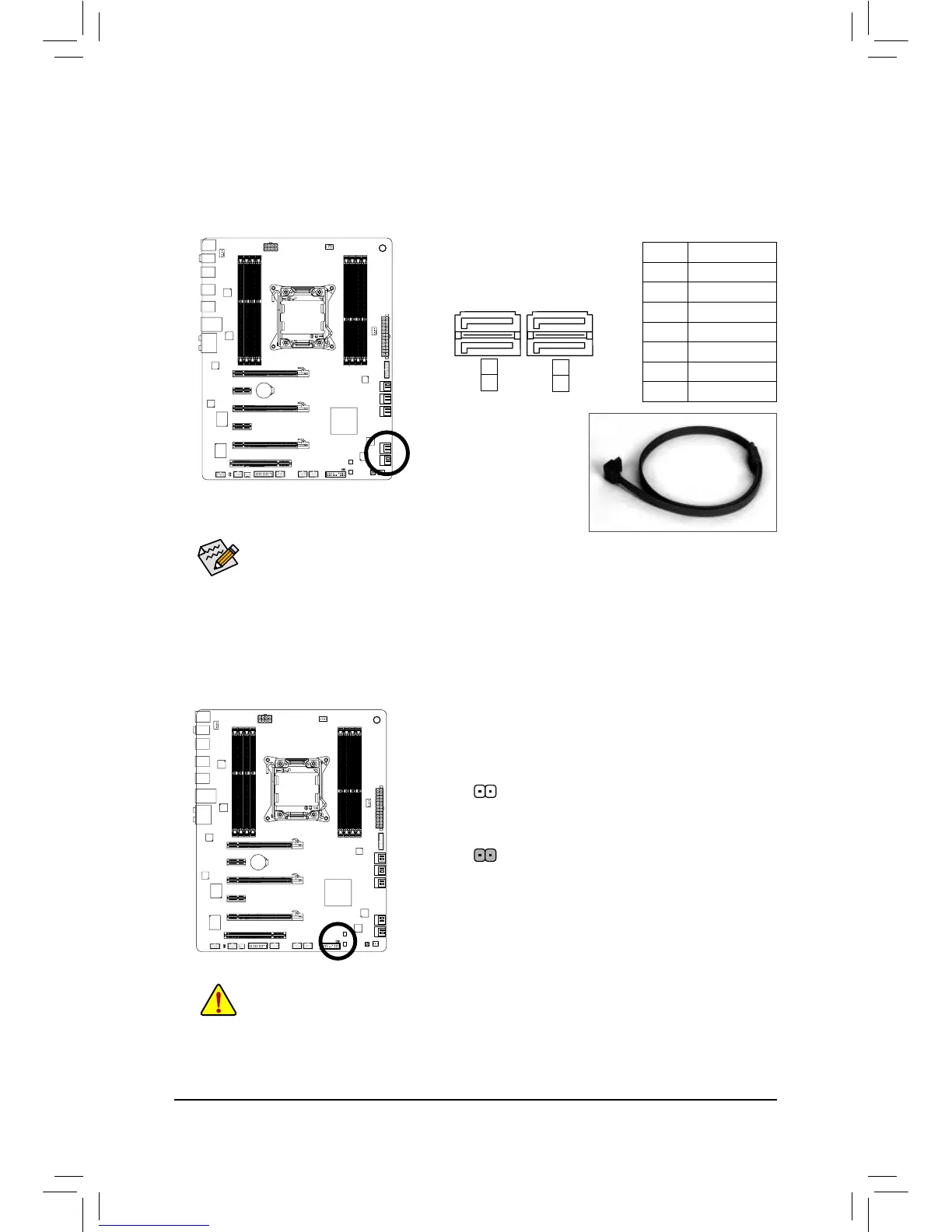

8) GSATA3 6/7/8/9 (SATA 6Gb/s Connectors, Controlled by Marvell 88SE9172 Chip)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Marvell 88SE9172 chip


Pin No. 
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
GSATA3
7
6
7
7
G.QBOFM
G.QBOFM
1
1
9
8
9) CLR_CMOS (Clear CMOS Jumper)
 
CMOS values to factory defaults. To clear the CMOS values, place use a metal object like a screwdriver
to touch the two pins for a few seconds.
Always turn off your computer and unplug the power cord from the power outlet before clearing •
the CMOS values.
After system restart, go to BIOS Setup to load factory defaults (select Load Optimized •


Open: Normal
Short: Clear CMOS Values
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.

Gigabyte GA-X79-UD5 Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Quad-channel
Number of memory slots	8
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1200, 1300, 1333, 1500, 1600, 1666, 1800, 1866, 1900, 2000, 2133 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i7
USB 2.0 connectors	3
Number of SATA II connectors	4
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit
Headphone outputs	5
eSATA ports quantity	2
USB 2.0 ports quantity	7
Audio chip	Realtek ALC898
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Compatible operating systems	Windows 7/Vista/XP
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	2-Way SLI, 3-Way SLI, Hybrid CrossFireX
PCI Express slots version	3.0
Wi-Fi standards	Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	264 mm
Width	305 mm
