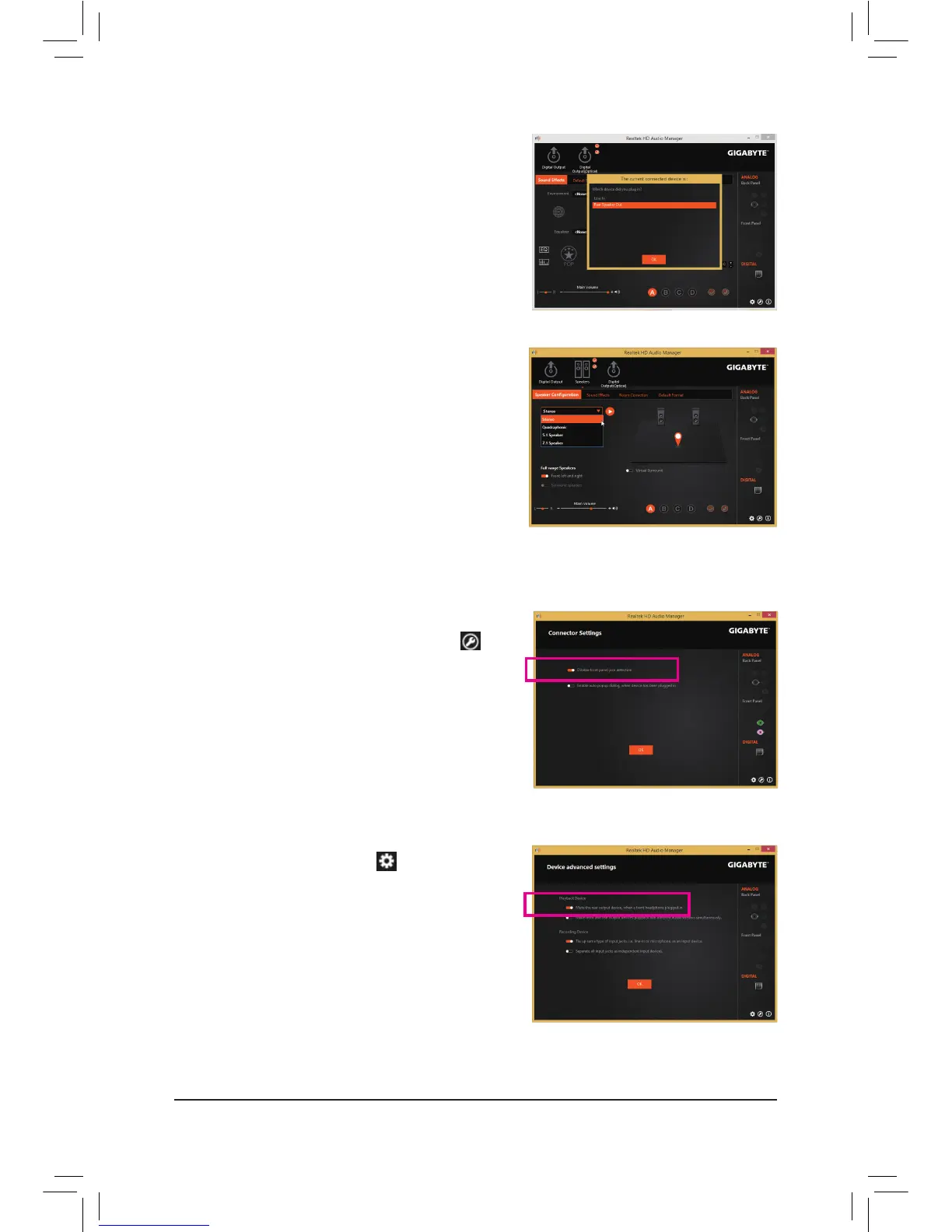

Step 2:
Connect an audio device to an audio jack. The The current
connected device is dialog box appears. Select the device
according to the type of device you connect. Then click OK.
Step 3:
On the Speakers screen, click the Speaker Configuration
tab. In the Speaker Configuration list, select Stereo,
Quadraphonic, 5.1 Speaker, or 7.1 Speaker according to
the type of speaker configuration you wish to set up. Then
the speaker setup is completed.
If your chassis provides an AC'97 front panel audio module,
to activate the AC'97 functionality, click the Tool icon on
the right bottom of the screen . On the Connector Settings
dialog box, select the Disable front panel jack detection
check box. Click OK to complete.
Click Device advanced settings icon on the right bottom
of the screen to open the Device advanced settings dialog
box. Select the Mute the rear output device, when a front
headphone plugged in check box. Click OK to complete.
B. Configuring Sound Effect
You may configure an audio environment on the Sound Effects tab.
C. Activating an AC'97 Front Panel Audio Module
D. Muting the Back Panel Audio (For HD Audio Only)

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
