Gigabyte GA-X99-UD5 WIFI User Manual

BIOS Setup
- 43 -

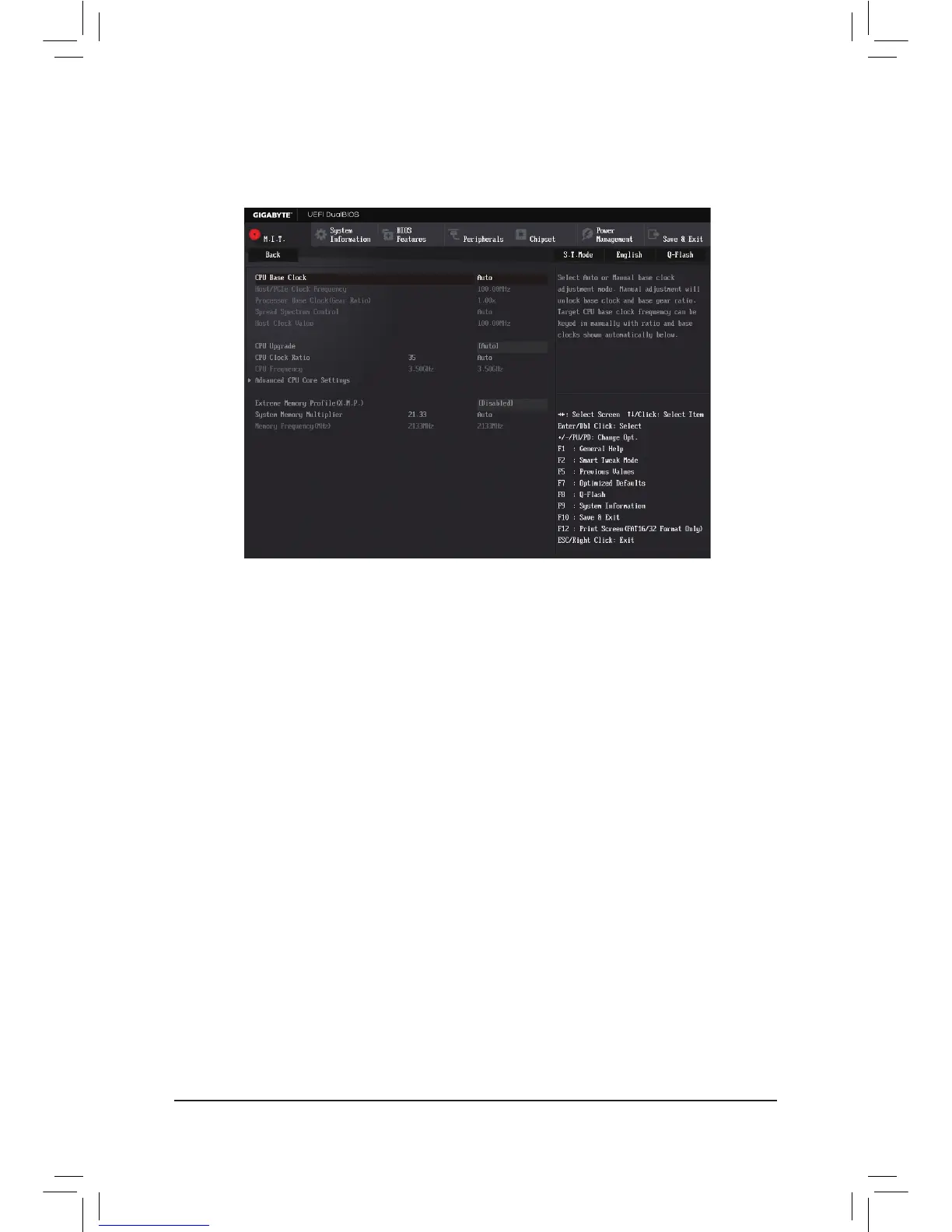

` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.
` Advanced Frequency Settings
& CPU Base Clock
 AllowsyoutomanuallysettheCPUbaseclockin0.01MHzincrements.(Default:Auto)
Important: It is highly recommended that the CPU frequency be set in accordance with the CPU
specications.
& Host/PCIe Clock Frequency
(Note)
 Allowsyoutomanuallysetthehostclockfrequency(whichcontrolsCPU,PCIe,andmemoryfrequencies)
in0.01MHzincrements.
 ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.
& Processor Base Clock (Gear Ratio)
(Note)
 AllowsyoutoconguretheProcessorBaseClockbymultiplyingtheHost/PCIe Clock Frequency by several
presethostclockmultipliers.ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.
& Spread Spectrum Control
(Note)
 EnablesordisablesCPU/PCIeSpreadSpectrum.(Default:Auto)
 ThisitemiscongurableonlywhenCPU Base Clock is set to Manual.
& Host Clock Value
This value is determined by multiplying the Host/PCIe Clock Frequency value by the Processor Base
Clock (Gear Ratio) value.
& CPU Upgrade
(Note)
 AllowsyoutosettheCPUfrequency.OptionsmayvarydependingontheCPUbeingused.(Default:Auto)
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& CPU Frequency
Displays the current operating CPU frequency.
(Note) ThisitemispresentonlywhenyouinstallaCPUthatsupportsthisfeature.Formoreinformationabout
Intel
®
CPUs' unique features, please visit Intel's website.

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
