Gigabyte GA-X99-UD5 WIFI User Manual

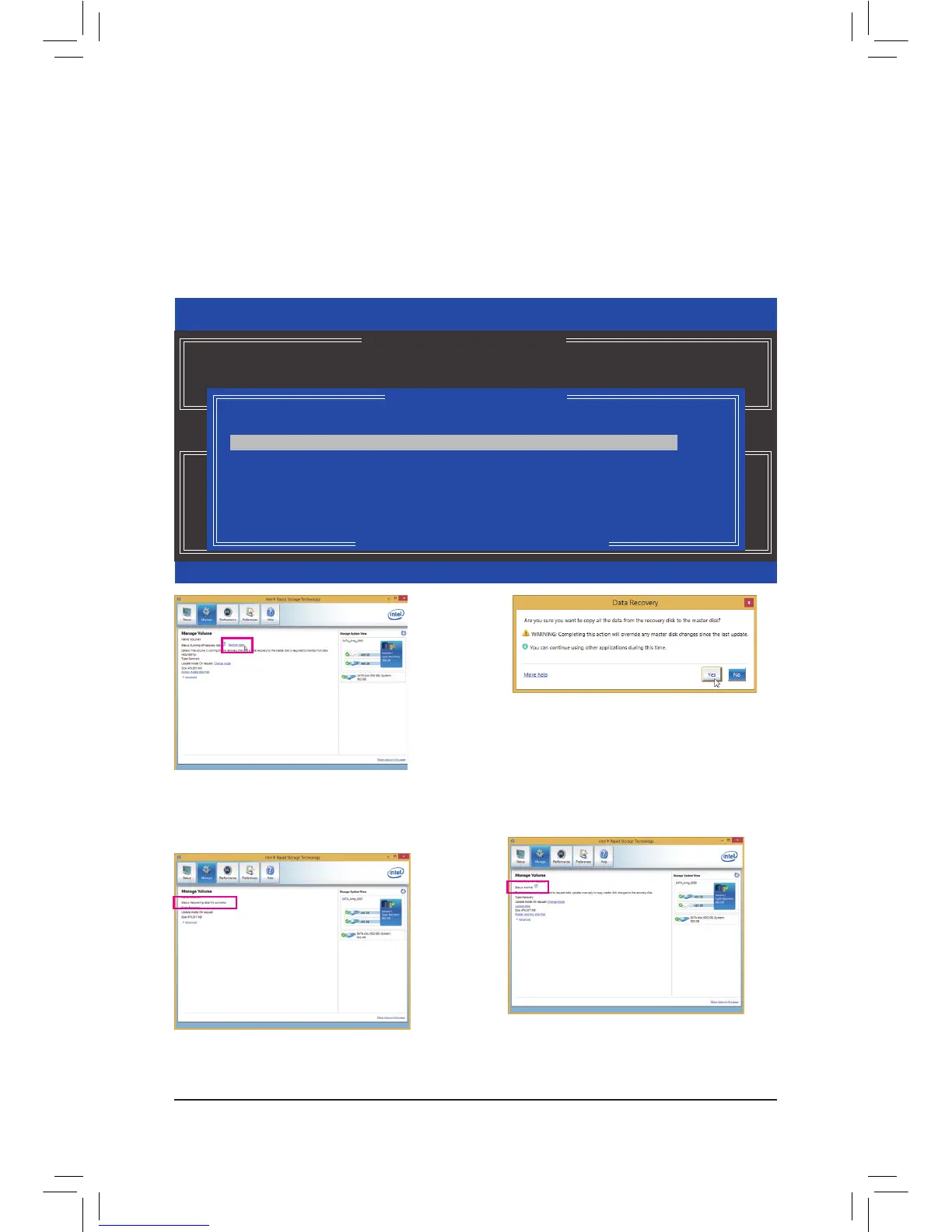

Conguring SATA Hard Drive(s)
- 82 -
Step 2:
Go to the Manage menu of the Intel
®
Rapid
Storage Technology utility and click Recover data
in Manage Volume.
The Status item on the left of the screen displays
the rebuild progress.
Step 3:
Click Yes to begin the data recovery.
Step 4:
After the recovery volume is completed, the Status
will display as Normal.
• Restoring the Master Drive to a Previous State (for Recovery Volume only)
When two hard drives are set to Recovery Volume in Update on Request mode, you can restore the master
drive data to the last backup state when needed. For example, in case the master drive detects a virus, you
can restore the recovery drive data to the master drive.
Step 1:
Select 4. Recovery Volume Options in the MAIN MENU of the Intel
®
RAID Conguration Utility. On the
RECOVERY VOLUMES OPTIONS menu, select Enable Only Recovery Disk to show the recovery drive in
theoperatingsystem.Followtheon-screeninstructionstocompleteandexittheRAIDCongurationUtility.
Intel(R) Rapid Storage Technology - Option ROM - 13.1.0.2126
Copyright (C) Intel Corporation. All Rights Reserved.
Choose the RAID level:
RAID0: Stripes data (performance).
RAID1: Mirrors data (redundancy).
Recovery: Copies data between a master and a recovery disk.
RAID10: Mirrors data and stripes the mirror.
RAID5: Stripes data and parity.
[
hi
]-select [ESC]-Previous Menu [ENTER]-Select
[ HELP ]
[ RECOVERY VOLUME OPTIONS ]
1. Enable Only Recovery Disk
2. Enable Only Master Disk
[ SELECT RECOVERY VOLUME ]
[
hi
]-Up/Down [SPACE]-Selects [ENTER]-Done
Name Level Capacity Status Bootable
`
Volume0 Recovery(OnReq) 465.7GB NeedsUpdate Yes
Select a Recovery volume to do the operation.

Gigabyte GA-X99-UD5 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Quad-channel
Memory slots type	DIMM
Number of memory slots	8
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000 MHz
Processor socket	LGA 2011 (Socket R)
Processor manufacturer	Intel
Compatible processor series	Intel Core i7, Intel Core i7 Extreme Edition
USB 2.0 connectors	4
Number of SATA connectors	10
Number of Parallel ATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA, SATA II, SATA III
PS/2 ports quantity	1
eSATA ports quantity	0
USB 2.0 ports quantity	2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® X99
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	Extended ATX
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI
PCI Express x1 slots	3
BIOS type	UEFI
ACPI version	5.0

Weight and Dimensions

Depth	259 mm
Width	305 mm
