Gigabyte GC-MAPLE RIDGE User Manual

- 10 -

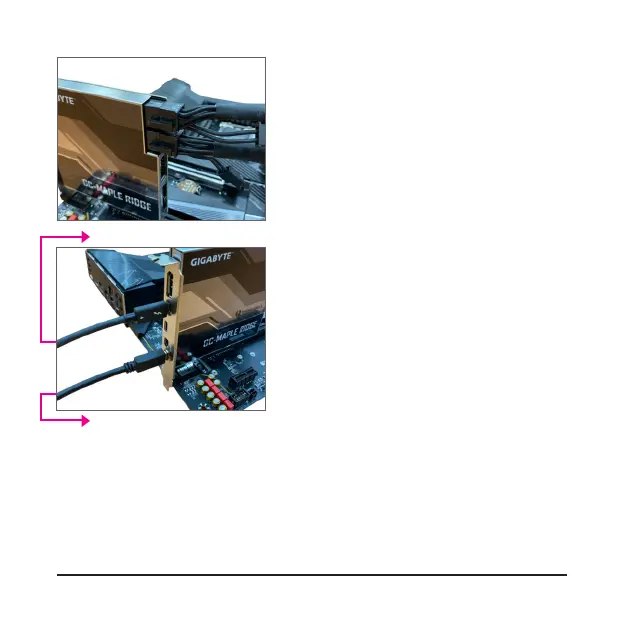

Step 9:
Follow the steps below to use the included Mini-
DisplayPort cable to connect your graphics card to the
GC-MAPLE RIDGE add-in card.
9-1: Connect the cable from the DisplayPort In connector
on the GC-MAPLE RIDGE add-in card to the
DisplayPort on your graphics card.
9-2: Connect the Thunderbolt
™
device’s or DisplayPort
monitor’s cable to the Thunderbolt
™
4 connector on
the GC-MAPLE RIDGE add-in card.
9-2
9-1
Step 8:
Connect the power cables from the power supply to the
two PCIe connectors.
步驟8：
將電源供應器上的電源接頭連接至兩組PCIe電
源插座。
步骤8：
将电源供应器上的电源接头连接至两组PCIe电源
插座。
步驟9：
請依照下列步驟使用所附的Mini-DisplayPort連接線將您的顯示卡與GC-MAPLE RIDGE卡
做連結。
9-1：GC-MAPLE RIDGE卡上的Mini-DisplayPort In插座需連結至顯示卡的DisplayPort。
9-2： GC-MAPLE RIDGE卡上的Thunderbolt
™
4插座則需連結至Thunderbolt
™
裝置或DisplayPort
螢幕。

Gigabyte GC-MAPLE RIDGE Specifications

General

Output interface	DisplayPort, Mini DisplayPort, Thunderbolt 4, USB 3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Internal	Yes
Product color	Black, Grey
Data transfer rate (max)	40 Gbit/s
Harmonized System (HS) code	84733020
