- 17 -

Pin No. Denition Pin No. Denition

1 NDCD- 6 NDSR-

2 NSIN 7 NRTS-

3 NSOUT 8 NCTS-

4 NDTR- 9 NRI-

5 GND 10 No Pin

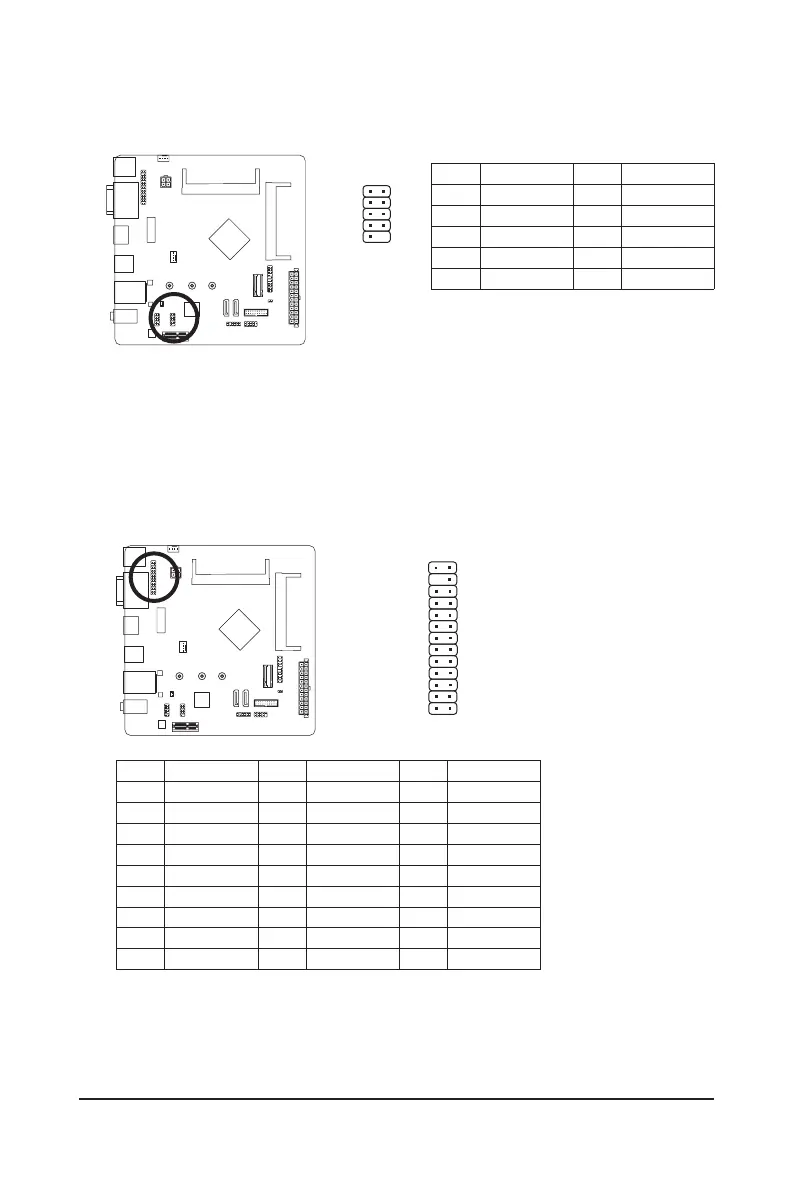

12) COMB (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

109

13) LPT (Parallel Port Header)

The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional

LPT port cable, please contact the local dealer.

Pin No. Denition Pin No. Denition Pin No. Denition

1 STB- 10 GND 19 ACK-

2 AFD- 11 PD4 20 GND

3 PD0 12 GND 21 BUSY

4 ERR- 13 PD5 22 GND

5 PD1 14 GND 23 PE

6 INIT- 15 PD6 24 No Pin

7 PD2 16 GND 25 SLCT

8 SLIN- 17 PD7 26 GND

9 PD3 18 GND

26 25

2 1

DEBUG

PORT

G.QBOFM

Gigabyte N4120I H User Manual
