2-14 USB DAC-UP 2
GIGABYTE USB DAC-UP 2 allows you to increase the output voltage of the USB 3.1 Gen 1 ports on the front
or back panel to strengthen the stability of your USB device(s).

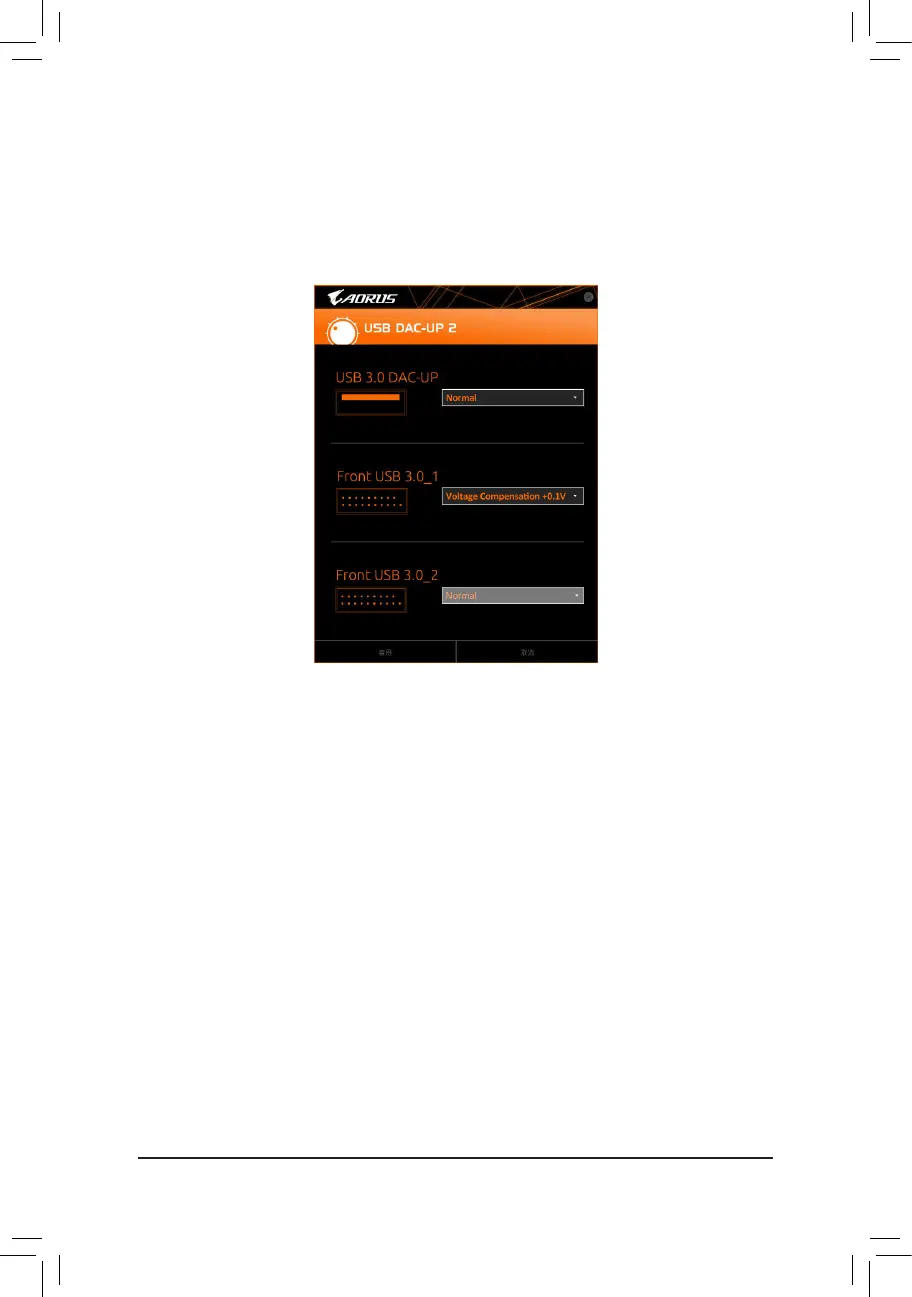

The USB DAC-UP 2 Interface
Using USB DAC-UP 2
Click the drop down list on the right of the USB 3.1 Gen 1 connector you want to adjust the voltage and choose
an option. Then click Apply. After the system restarts, the settings will be synchronized with the BIOS settings.
The options are as follows:
• Normal: Keeps the original output voltage.
• Disable USB bus power: Disables the power of the USB connectors. High-end audio players may connect
their own external USB power source.
• Voltage Compensation +0.1V: Adds 0.1V to the original output voltage.
• Voltage Compensation +0.2V: Adds 0.2V to the original output voltage.
• Voltage Compensation +0.3V: Adds 0.3V to the original output voltage.
(Note) Connectors available may vary by motherboard.

Gigabyte X470 AORUS GAMING 7 WIFI Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3000, 3200, 3333, 3400, 3600 MHz
Supported memory module capacities	16GB
Component for	PC
Motherboard chipset	AMD X470
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	AMD
Processor socket	Socket AM4
Compatible processor series	AMD A, AMD Athlon, AMD Athlon X4, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
PCI Express x1 slots	2
PCI Express x16 slots	3
Number of Parallel ATA connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Ethernet interface type	Gigabit Ethernet
RAID levels	0, 1, 10

Weight and Dimensions

Depth	305 mm
Width	244 mm
