Gigabyte X570S AORUS ELITE AX User Manual

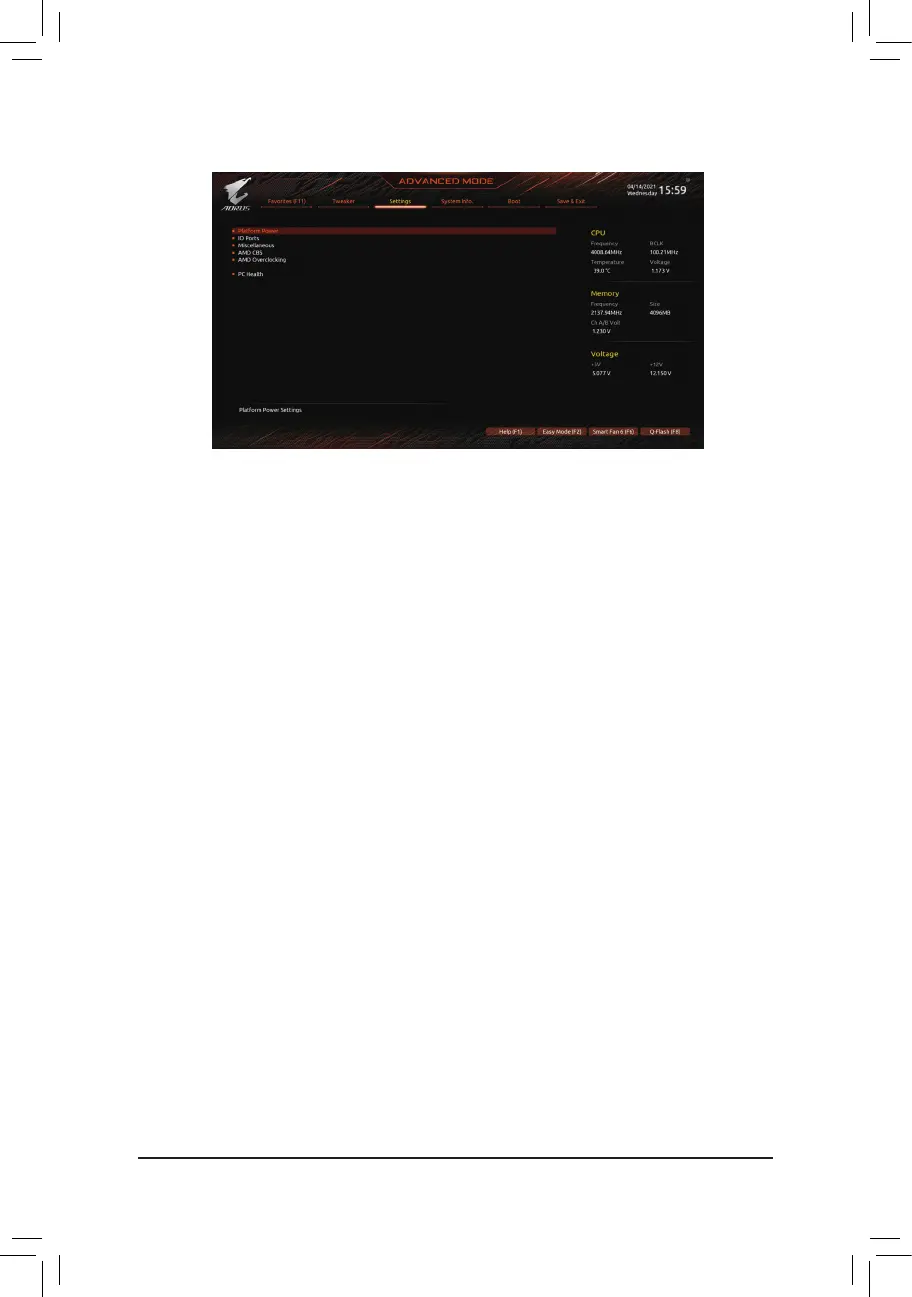

2-6 Settings
 Platform Power
& AC BACK
Determines the state of the system after the return of power from an AC power loss.
Memory The system returns to its last known awake state upon the return of the AC power.
Always On The system is turned on upon the return of the AC power.
Always Off The system stays off upon the return of the AC power. (Default)
& ErP
Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled)
Note: When this item is set to Enabled, the Resume by Alarm function becomes unavailable.
& Soft-Off by PWR-BTTN
 ConguresthewaytoturnoffthecomputerinMS-DOSmodeusingthepowerbutton.
Instant-Off Press the power button and then the system will be turned off instantly. (Default)
Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power
button is pressed for less than 4 seconds, the system will enter suspend mode.
& Power Loading
Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing
it to shutdown or fail. If this occurs, please set to Enabled. AutoletstheBIOSautomaticallycongurethis
setting. (Default: Auto)
& Resume by Alarm
Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:
Wakeupday:Turnonthesystemataspecictimeoneachdayoronaspecicdayinamonth.
Wake up hour/minute/second: Set the time at which the system will be powered on automatically.
Note: When using this function, avoid inadequate shutdown from the operating system or removal of the
AC power, or the settings may not be effective.
& High Precision Event Timer
Enables or disables High Precision Event Timer (HPET) in the operating system. (Default: Enabled)
- 32 -

Gigabyte X570S AORUS ELITE AX Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Wi-Fi	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet interface type	2.5 Gigabit Ethernet
PCI Express x16 slots	3
USB connector type	USB Type-A, USB Type-C
WiFi-AP antenna jack	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Number of SATA III connectors	6
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4600, 4866, 5000, 5100, 5200, 5400 MHz
Audio chip	Realtek ALC1220-VB
Component for	PC
Motherboard chipset	AMD X570
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	9
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	80 mm
