Gigabyte X570S AORUS ELITE AX User Manual

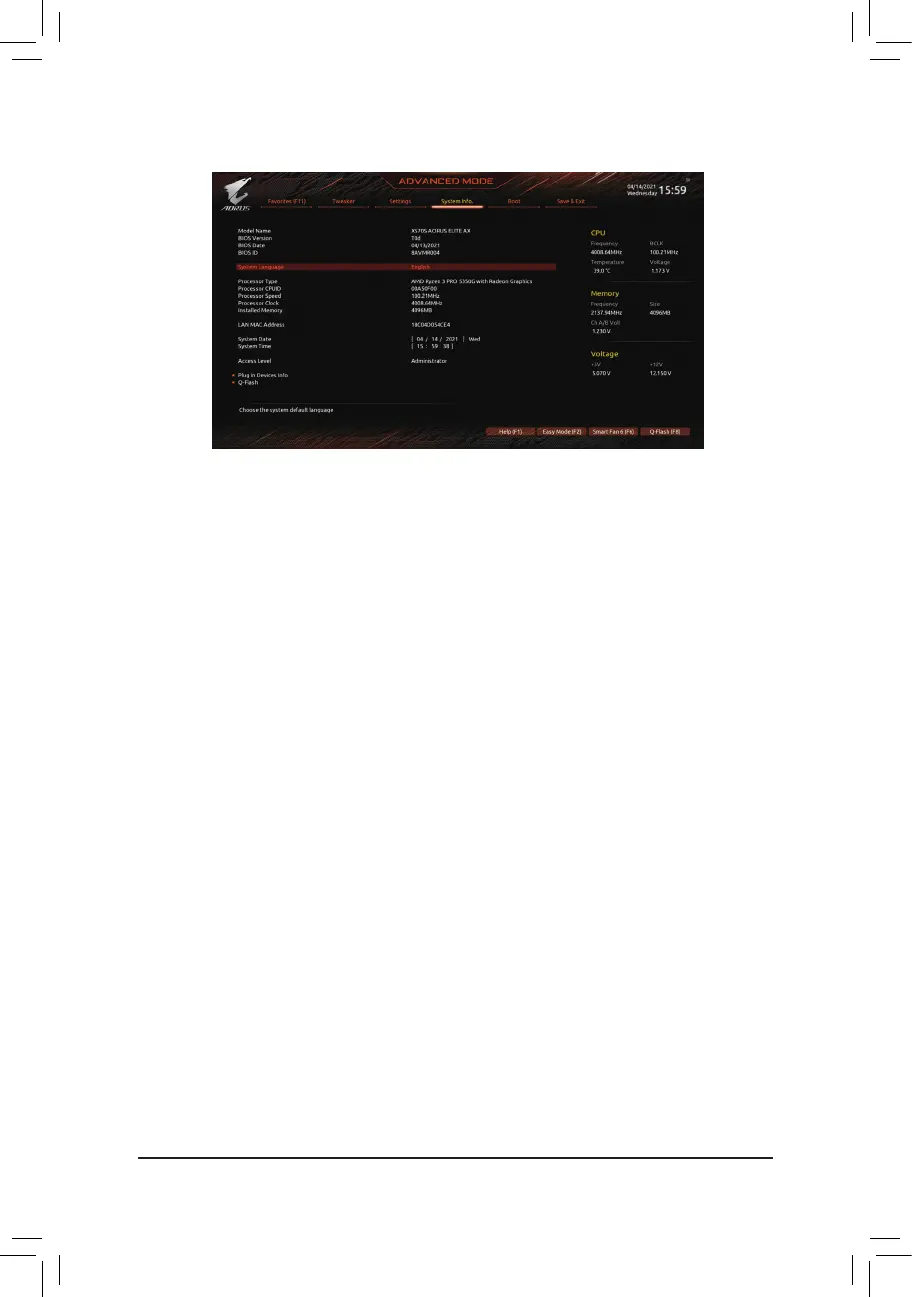

2-7 System Info.
This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch
betweentheMonth,Date,andYeareldsandusethe<PageUp>or<PageDown>keytosetthedesired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:00:00. Use
<Enter>toswitchbetweentheHour,Minute,andSecondeldsandusethe<PageUp>or<PageDown>
key to set the desired value.
& Access Level
Displays the current access level depending on the type of password protection used. (If no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.
 Plug in Devices Info
Displays information on your SATA, PCI Express, and M.2 devices if installed.
 Q-Flash
 AllowsyoutoaccesstheQ-FlashutilitytoupdatetheBIOSorbackupthecurrentBIOSconguration.
- 37 -

Gigabyte X570S AORUS ELITE AX Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Wi-Fi	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Ethernet interface type	2.5 Gigabit Ethernet
PCI Express x16 slots	3
USB connector type	USB Type-A, USB Type-C
WiFi-AP antenna jack	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Number of SATA III connectors	6
Cables included	SATA
Bundled software	Norton® Internet Security (OEM version), Realtek® 8125 Gaming LAN Bandwidth Control Utility
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4600, 4866, 5000, 5100, 5200, 5400 MHz
Audio chip	Realtek ALC1220-VB
Component for	PC
Motherboard chipset	AMD X570
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	9
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	80 mm
