Gigabyte Z790 AORUS ELITE AX-W User Manual

- 20 -

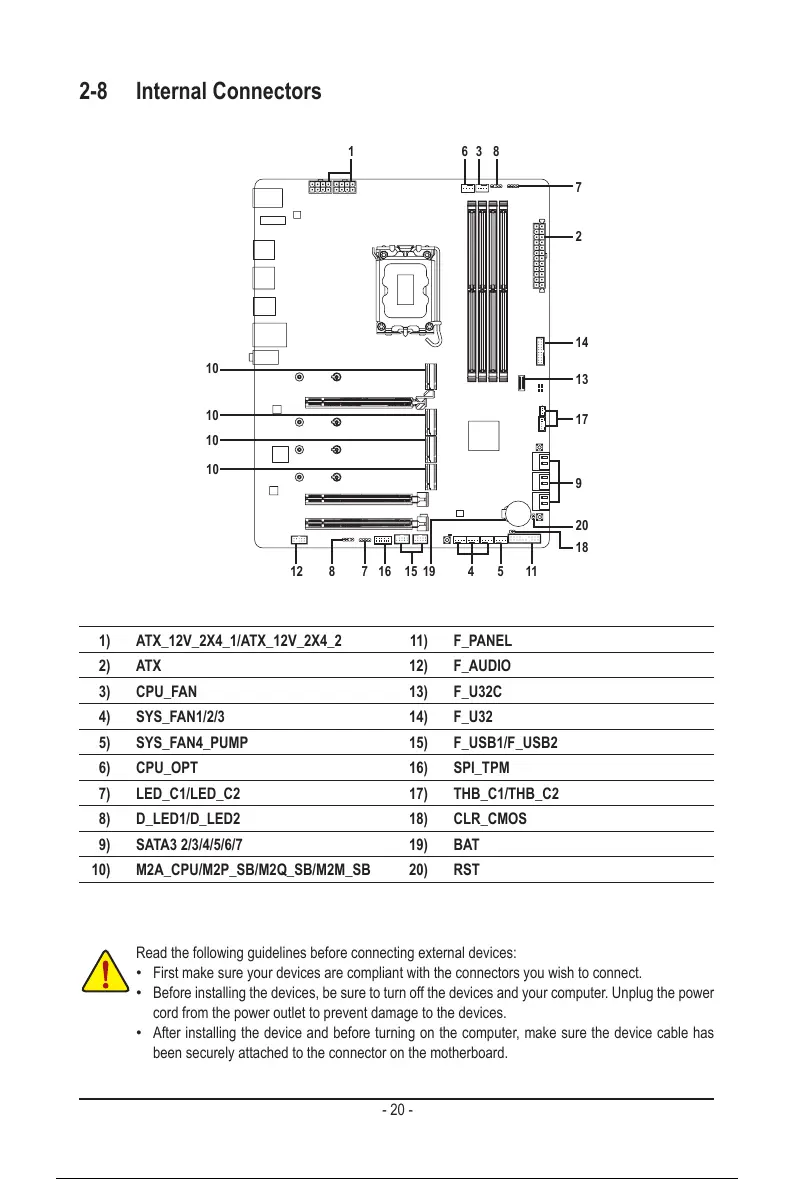

2-8 Internal Connectors
1) ATX_12V_2X4_1/ATX_12V_2X4_2
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SYS_FAN4_PUMP
6) CPU_OPT
7) LED_C1/LED_C2
8) D_LED1/D_LED2
9) SATA3 2/3/4/5/6/7
10) M2A_CPU/M2P_SB/M2Q_SB/M2M_SB
11) F_PANEL
12) F_AUDIO
13) F_U32C
14) F_U32
15) F_USB1/F_USB2
16) SPI_TPM
17) THB_C1/THB_C2
18) CLR_CMOS
19) BAT
20) RST
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1119
14
13
2
7
17
9
15 412 16
81
8 7
18
20
36
10
10
10
10
5
21 / 43 20 / 41 21 / 43

Gigabyte Z790 AORUS ELITE AX-W Specifications

General

Chipset	Intel Z790
Socket	LGA 1700
Form Factor	ATX
Memory Slots	4
Maximum Memory Capacity	128 GB
M.2 Slots	4
Networking	Intel 2.5GbE LAN
LAN	2.5 GbE
Wi-Fi	Wi-Fi 6E
Storage	SATA 6Gb/s
Bluetooth	5.2
Audio	Realtek ALC897
RGB Headers	2 x Addressable LED, 2 x RGB LED
