Gigabyte Z790 AORUS ELITE AX-W User Manual

- 5 -

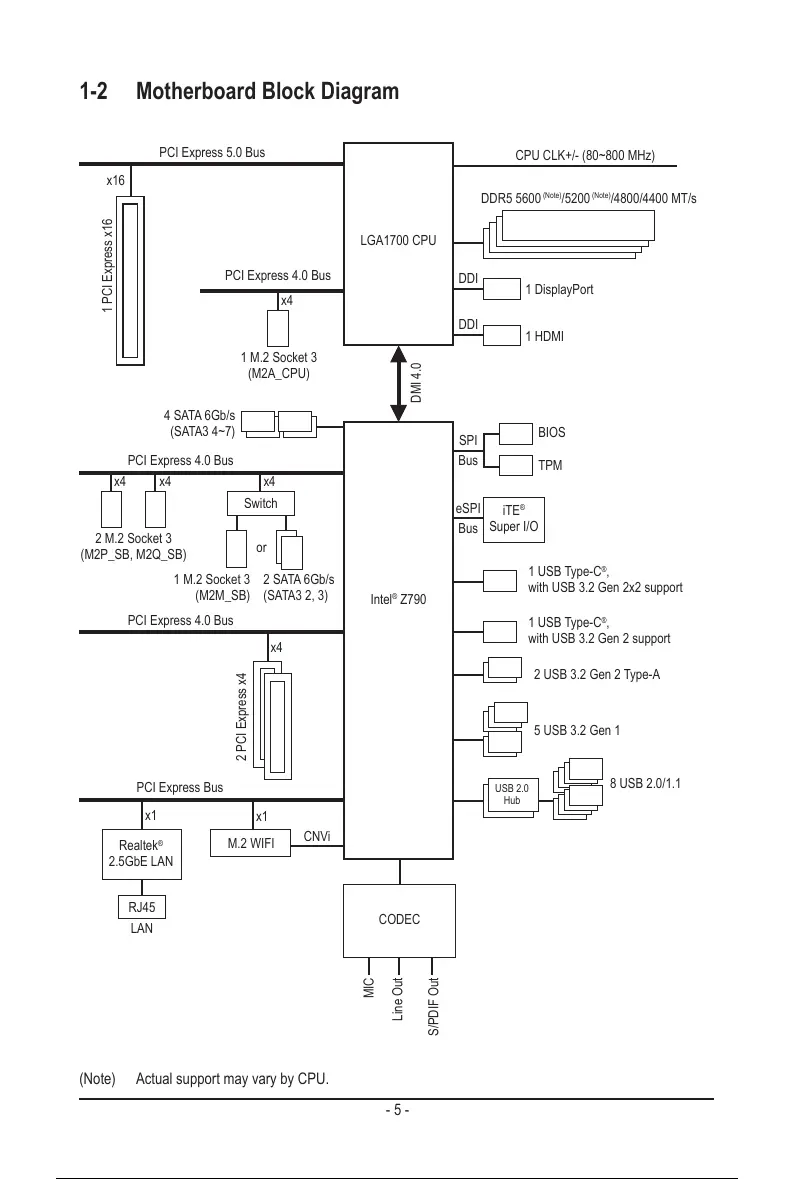

1-2 Motherboard Block Diagram
CPU CLK+/- (80~800 MHz)
DMI 4.0
4 SATA 6Gb/s
(SATA3 4~7)
eSPI
Bus
SPI
Bus
DDI
iTE
®
Super I/O
5 USB 3.2 Gen 1
8 USB 2.0/1.1
1 USB Type-C
®
,
with USB 3.2 Gen 2x2 support
2 USB 3.2 Gen 2 Type-A
1 DisplayPort
BIOS
TPM
PCI Express 5.0 Bus
1 PCI Express x16
x16
USB 2.0
Hub
DDI
1 HDMI
1 USB Type-C
®
,
with USB 3.2 Gen 2 support
LGA1700 CPU
PCI Express 4.0 Bus
1 M.2 Socket 3
(M2A_CPU)
1 M.2 Socket 3
(M2M_SB)
2 SATA 6Gb/s
(SATA3 2, 3)
PCI Express 4.0 Bus
2 M.2 Socket 3
(M2P_SB, M2Q_SB)
Switch
or
x4
2 PCI Express x4
DDR5 5600
(Note)
/5200
(Note)
/4800/4400 MT/s
PCI Express 4.0 Bus
x4
x4 x4 x4
PCI Express Bus
x1
LAN
RJ45
x1
Realtek
®
2.5GbE LAN
CNVi
M.2 WIFI
Line Out
MIC
S/PDIF Out
CODEC
Intel
®
Z790
(Note) Actual support may vary by CPU.
