Getting started
Connecting the base station to the telephone network and the
mains power supply
Mounting the C620 base station on the wall (optional)

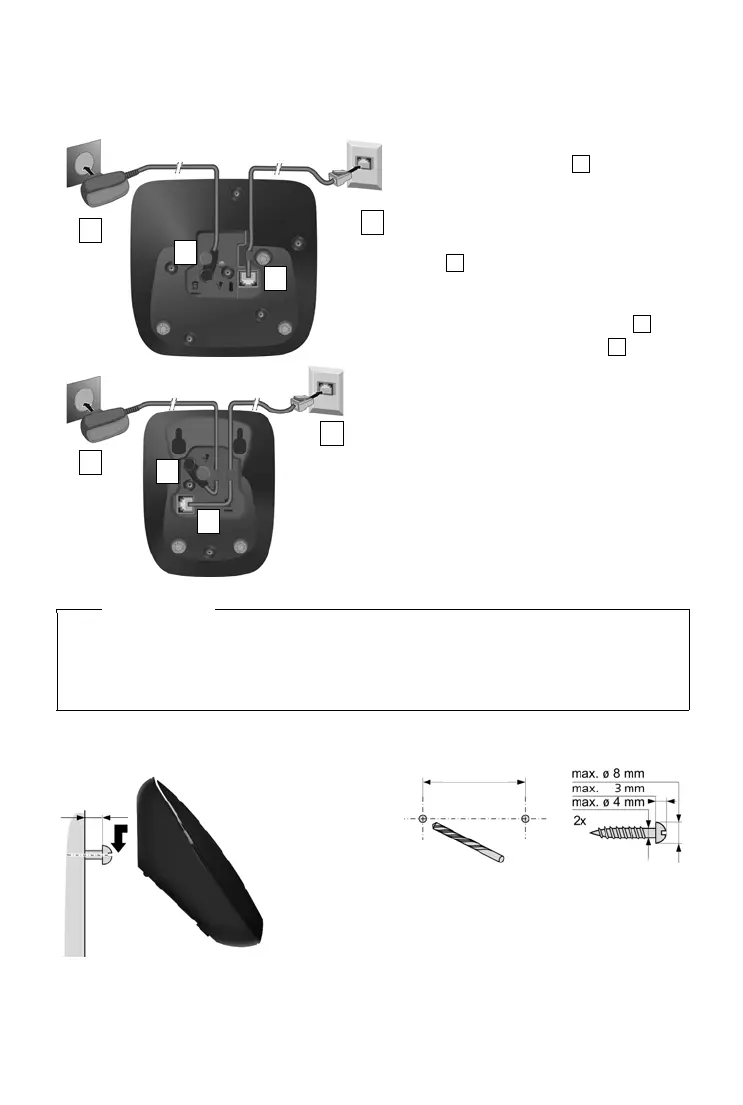

¤ Insert the phone cable into the
connection socket at the rear of
the base until it clicks into place and
feed under the cable protection.
¤ Insert the power cable for the power
adapter into the connection socket
at the rear of the base and rotate
the right-angle plug under the cable
protection.
¤ Connect the power adapter .
¤ Connect the phone jack .
1
2
3
4
4
3
2
1
C620A
4
3
2
1
C620
Notes
u The power adapter must always be connected, as the phone will not operate without a
power supply.
u Use only the supplied power adapter and phone cord. Pin connections on telephone
cables can vary (pin connections,
¢ page 70).
approx. 
2 mm
46 mm
